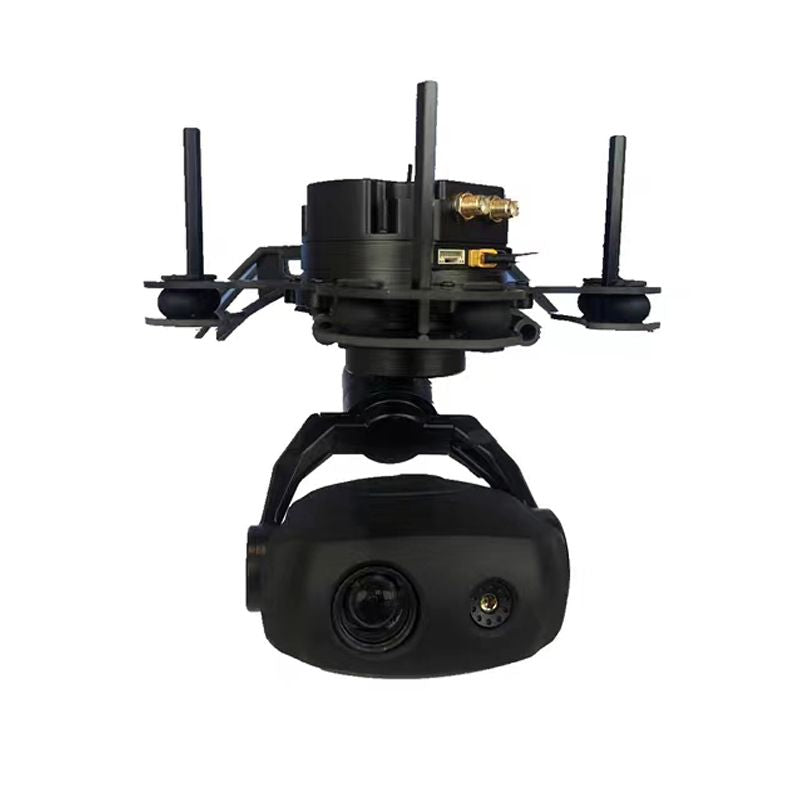

TFIP10T3-10X Optical Zoom Thermal Camera wireless image data transmission IR with 3-axis Gimbal for multi-rotor UAV

10X Optical Zoom Thermal Camera 320×240 IR with 3-axis Gimbal for multi-rotor UAV

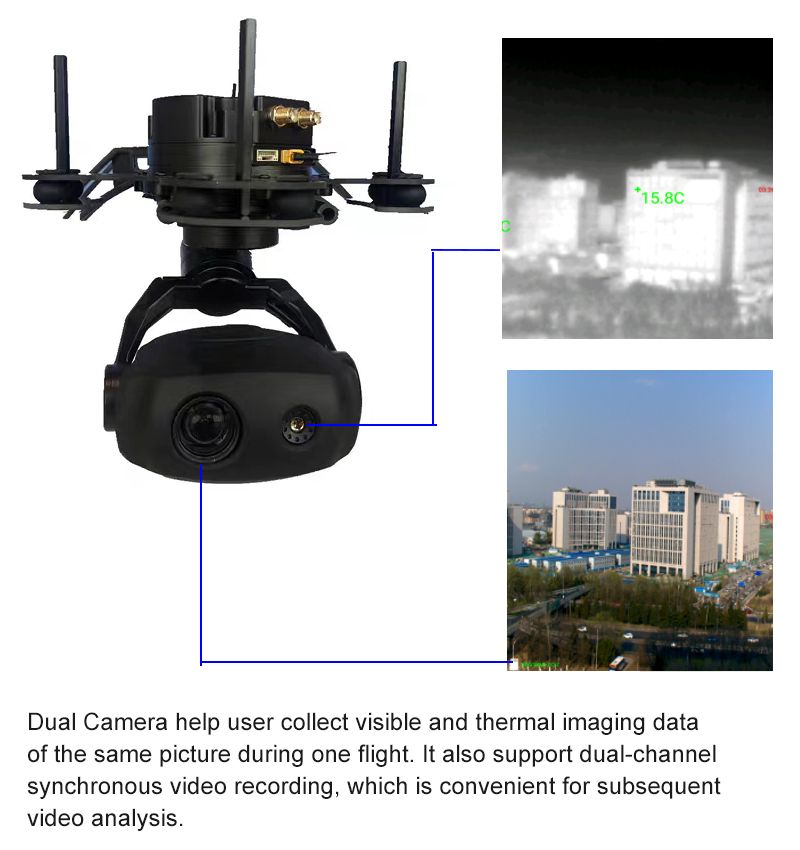

10X Optical Zoom Thermal Camera TFIP10T3 is a zoom dual-light integrated system that integrates a 10x optical zoom camera, a thermal imager, a wireless image data transmission module, and a high-precision professional three-axis stabilization gimbal. The gimbal uses a high-precision encoder FOC control scheme with stable High-performance, small size, light weight, and strong features; visible light camera uses a low-illumination SENSOR with 4 million effective pixels; thermal imaging uses a 320×240 resolution detector with a baffle design. The system supports local TF storage, dual-channel simultaneous recording, pseudo-color switching, and temperature measurement. The ground station supports mouse control and multiple picture-in-picture modes. The sky side only needs power supply and connects the antenna. Note: The product includes ground receiving terminal and ground station software.

Voltage		3S or 6S（DC12V-26V）
Power		Dynamic 12W
Characteristics	Roll	-45°~ +135°
	Pitch	-120~+120°
	Yaw	-150°~+150°
	Pitch & Roll Accuracy	±0.02°
	Yaw accuracy	±0.03°
	One-button back to center	One-button back to original position
	Adjustable Gimbal Control speed	Support angle and speed control   When the gimbal rotates, speed adaptation is performed based on the current speed mode and the multiple of the visible light camera.
	TF Card	Support 16G to 128G class10 TF card
	Control method	Support UART control and SBUS control

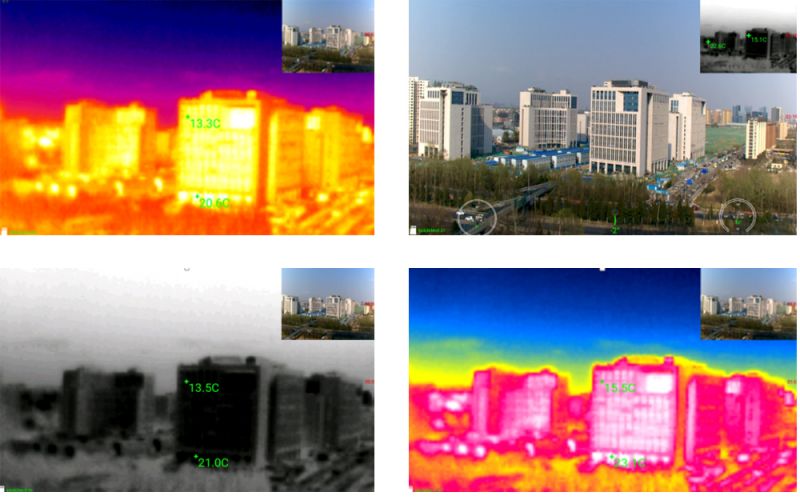

	Features	HDMI picture-in-picture switching, pseudo color switching, temperature measurement
White light camera   Machine parameters	CMOS size	1/3 inch 4MP CMOS sensor
	optical zoom	10x high-definition optical zoom lens, f=4.9 to 49mm
	Focus time	Real-time fast focusing function, focusing time <1S
	Video output	HDMI 1080P 60FPS, video stream local TF storage
	Field of view (FOV)	D : WIDE 66.6º±5% TELE 7.2º±5%   H : WIDE 53.2º±5% TELE 5.3º±5% V : WIDE 39.8º±5%   TELE 4.2º±5%
	Support mode	1080P 60fps
Thermal Imaging	Resolution	320*240 pixel
	Cell spacing	12μm
	Types of	Uncooled focal plane microbolometer
	Wavelength range	8～14μm
	Thermal sensitivity (NETD)	≤65mk@30℃
	Contrast, brightness	Adjustable
	Angle of view	6.5mm lens, angle: 34.4 x 25.8
	Measurement function	Center point, highest temperature and lowest temperature display temperature function;
Overall size		108mm*150mm*180mm
working environment		-10℃ to +45℃ / 20% to 80% RH
