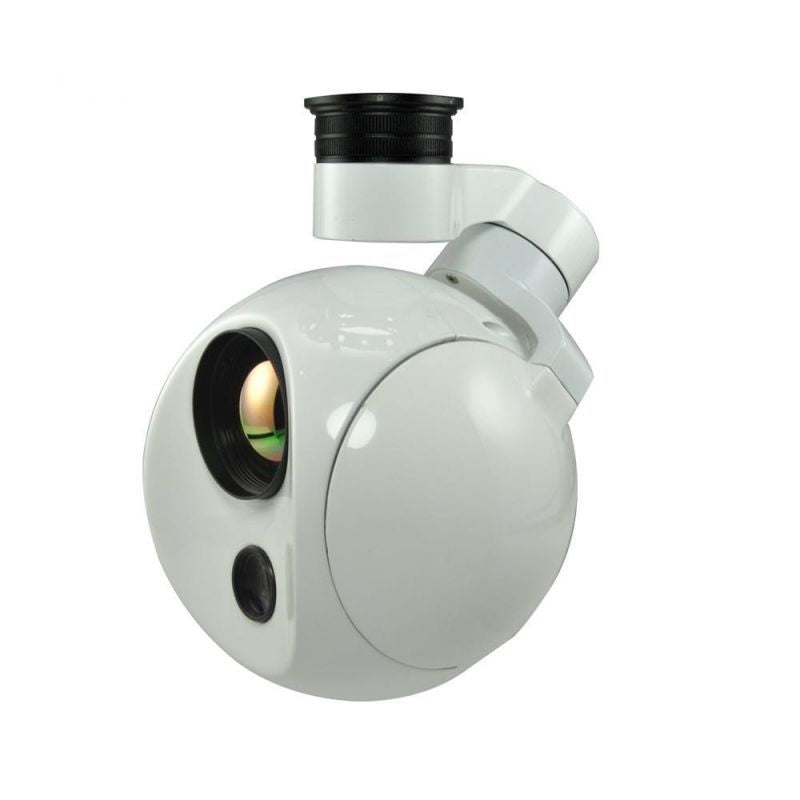

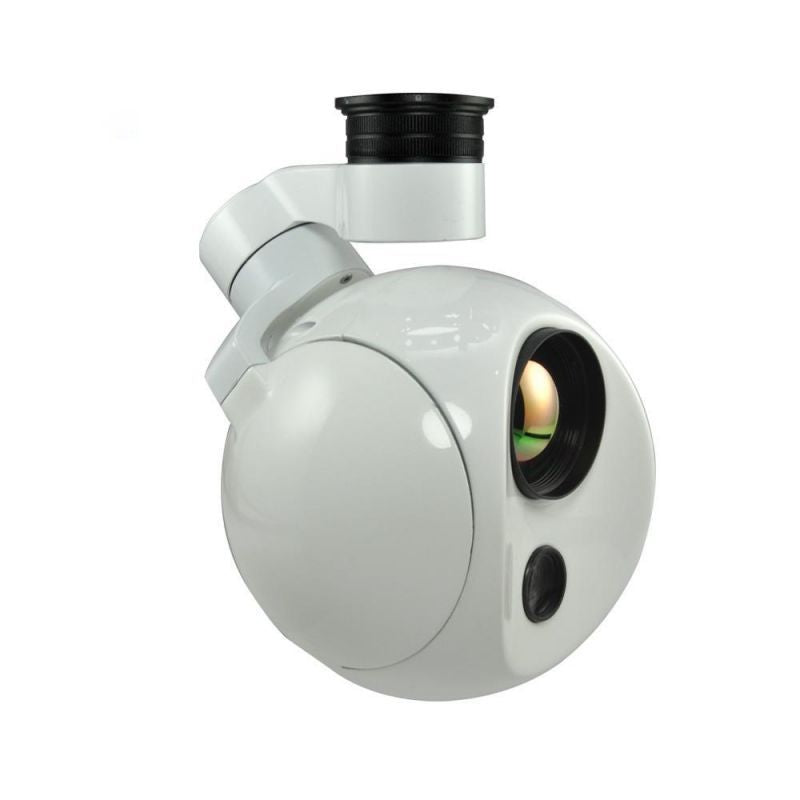

3-axis gimbal based on FOC technology features high stability, accuracy and sensitivity.

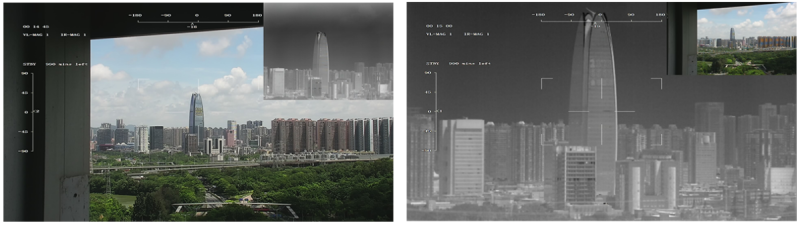

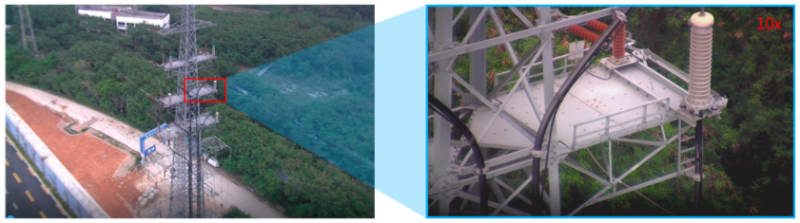

The image is very stable even at 10 times
optical zoom. Detecting by heat source, the 35mm thermal can reveal the damage of buildings, fire spark in forest, the location of
people or animal and more. It's widely used in day and night surveillance, search, inspection and firefighting.
Hardware Parameter
|
|
Working voltage
|
12V
|
Input voltage
|
4S ~ 6S
|
Output voltage
|
5V (connect with PWM)
|
Dynamic current
|
550mA @ 12V
|
Idle current
|
450mA @ 12V
|
Power consumption
|
≤ 6.6W
|
Working environment temp.
|
-20℃ ~ +50℃
|
Output
|
micro HDMI(HD output 1080P 60fps) / IP
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
Control method
|
PWM / TTL / S.BUS / TCP(IP output)
|
Gimbal Spec
|
|
Pitch/Tilt
|
±90°
|
Roll
|
±85°
|
Yaw/Pan
|
±170° / ±360°*N (IP output)
|
Vibration angle
|
Pitch/Roll: ±0.01°, Yaw:±0.01°
|
One-key to center
|
√
|
Camera Spec
|
|
Imager Sensor
|
SONY sensor 1/3" CMOS
|
Picture quality
|
Full HD 1080 (1920*1080)
|
Effective pixel
|
4.08MP
|
Lens optical zoom
|
10x, F=3.2~33.6mm
|
Digital zoom
|
None
|
Min object distance
|
10mm(wide end) to 800mm(tele end)
|
Horizontal viewing angle
|
59.2°(wide end) ~ 6.7°(tele end)
|
Sync system
|
Internal
|
S/N ratio
|
more than 52dB
|
Min illumination
|
0.5 lx (1/30s, F1.8, 50%)
|
Gain
|
Auto / Manual
|
White balance
|
ATW1 (Narrow), ATW2 (Wide), single touch, manual (B, R)
|
Shutter speed
|
1/1s to 1/10,000s
|
Backlight compensation
|
Yes
|

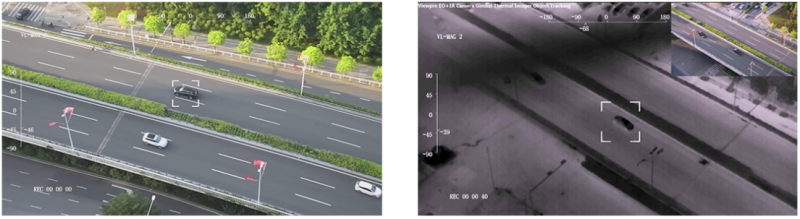

Camera Object Tracking
|
|
Update rate of deviation pixel
|
50Hz
|
Output delay of deviation pixel
|
<10ms
|
Minimum object contrast
|
5%
|
SNR
|
4
|
Minimum object size
|
32*32 pixel
|
Maximum object size
|
128*128 pixel
|
Tracking speed
|
±48 ~ ±192 pixel/frame
|
Object memory time
|
100 frames (4s)
|
The mean square root values of pulse noise in the object position
|
< 0.5 pixel
|
Thermal imager spec
|
|
Lens size
|
35mm
|
Horizontal FOV
|
17.7°
|
Vertical FOV
|
13.3°
|
Diagonal FOV
|
22°
|
Detective Distance (Man: 1.8x0.5m)
|
1029 meters
|
Recognize Distance (Man: 1.8x0.5m)
|
257 meters
|
Verified Distance (Man: 1.8x0.5m)
|
129 meters
|
Detective Distance (Car: 4.2x1.8m)
|
3157 meters
|
Recognize Distance (Car: 4.2x1.8m)
|
789 meters
|
Verified Distance (Car: 4.2x1.8m)
|
395 meters
|
Working mode
|
Uncooled long wave (8μm~14μm) thermal imager
|
Detector pixel
|
640*480
|
Pixel size
|
17μm
|
Focusing method
|
Athermal prime lens
|
Emissivity correction
|
0.01~1
|
NETD
|
≤50mK (@25℃)
|
MRTD
|
≤650mK (@characteristic frequency)
|
Image enhancement
|
Auto adjust image brightness and contrast ratio
|
Color palette
|
White, iron red, pseudo color
|
Auto Non-uniform correction
|
Yes (no shutter)
|
Digital zoom
|
1x, 3x
|
Sync correct time
|
Yes
|

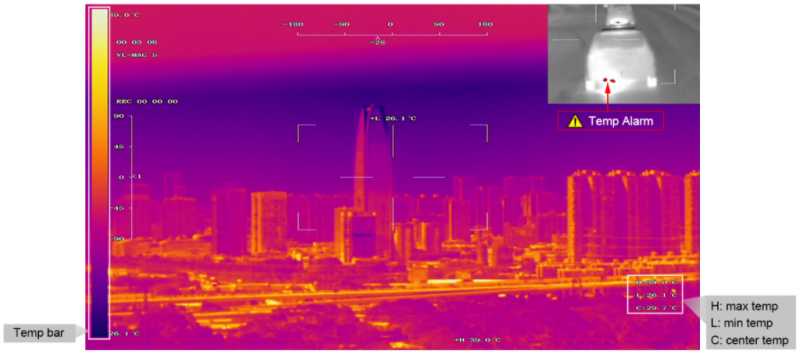

Thermometry type
|
Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
|
Temperature warning
|
0℃~100℃
|
Thermal Object Tracking
|
|
Update rate of deviation pixel
|
30Hz
|
Output delay of deviation pixel
|
<3ms
|
Minimum object size
|
32*32 pixel
|
Maximum object size
|
128*128 pixel
|
Tracking speed
|
±48 ~ ±192 pixel/frame
|
Object memory time
|
100 frames (4s)
|
Packing Information
|
|
N.W.
|
676g
|
Product meas.
|
113*113*157mm
|
Accessories
|
1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic
box with foam cushion |
G.W.
|
2860g
|
Package meas.
|
300*250*200mm
|
