Purchase Includes:
HX4-06211 Herelink Controller Unit
- 1 x Herelink Controller Unit
- 2 x Herelink Controller Joystick
- 1 x Herelink Omni-directional Antenna
- 1 x Herelink Directional Antenna
- 1 x Herelink Set up tips card
HX4-06210 Herelink Air Unit
- 1 x Herelink Air Unit
- 1 x Herelink Mounting Plate
- 1 x Herelink Screw Set
- 1 x Herelink Silicone Ring Set
- 2 x Herelink Taoglas Antenna
- 1 x Herelink Fan
- 1 x Herelink Cable Set
- 1 x Herelink HDMI Cable
- 1 x Herelink Set up tips card

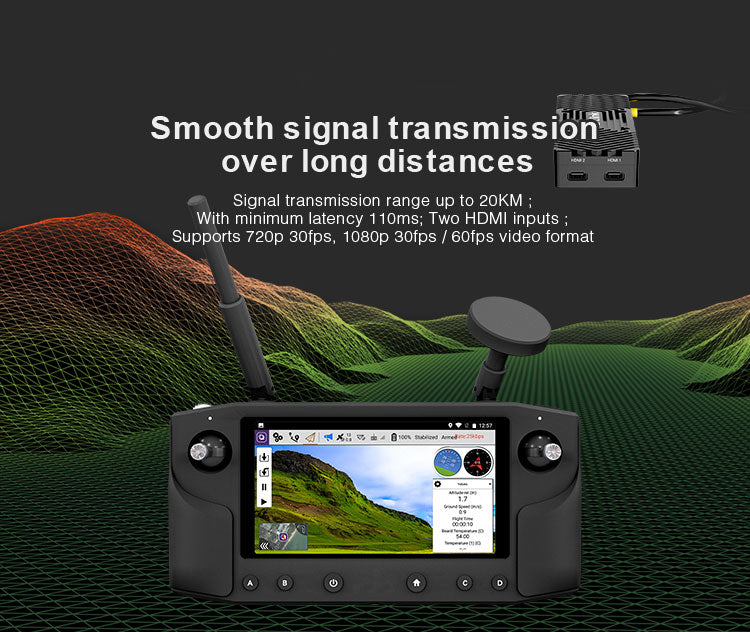

This is the newest and most advanced video transmission out there! The Herelink HD Video Transmission System is the all-in-one solution for long-range HD video transmission. It is capable of showing real-time FPV for recording, data transmission, and radio control. The radio controller has a built-in screen. While having the FPV while flying, the system allows you to get long-range HD video, data, and control information. The transmission range to what it could show in real-time footage is up to 12.4 miles (ca. 20 km), with a latency of less than 110ms. The 5.5" screen displays a multitude of control options. Examples of the control options are receiving live images, autopilot configuration through the native QGround control, or other GCS applications based on the Mavlink system.
Herelink updated points:
1. Screen brightness of controller is improved up from 600nit to 1,000nit.
2. Ethernet port added on the Herelink air unit
3. SD card slot added on the Herelink air unit
Controller:
- Plastic ergonomic housing
- Screen: 5.46 inch, 1080P, 16 million colors, capacitive touch screen
- Audio: built-in speaker and microphone
- Remote control: 2 rocker dials, 1 scroll wheel, 6 bottom buttons, 1 top button

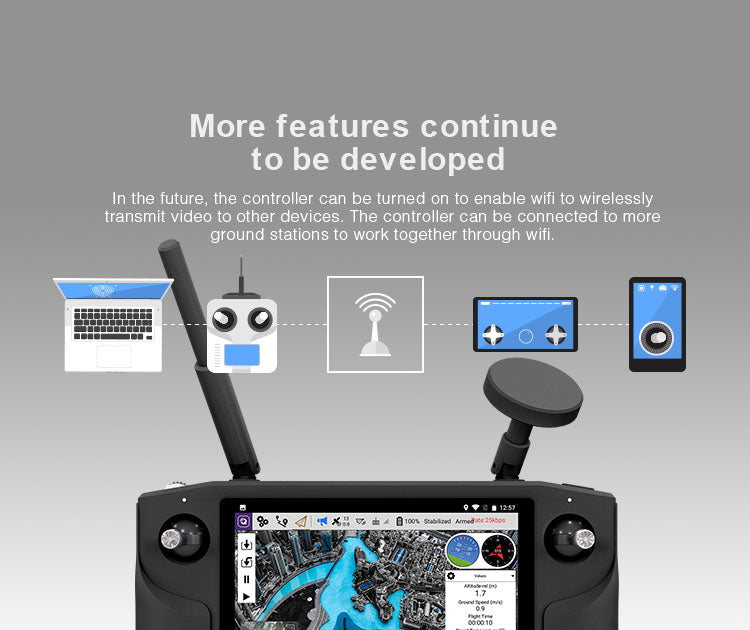

- Communication: BT / WIFI / GPS
- 2 tri-color indicator light
- Interface: MicroUSB, microSD (max. 64GB)
- Detachable antennas: 1x omnidirectional (2dBi), 1x directional (5dBi)
- Built-in WiFi and GPS antennas
- Optional external GPS antenna interface

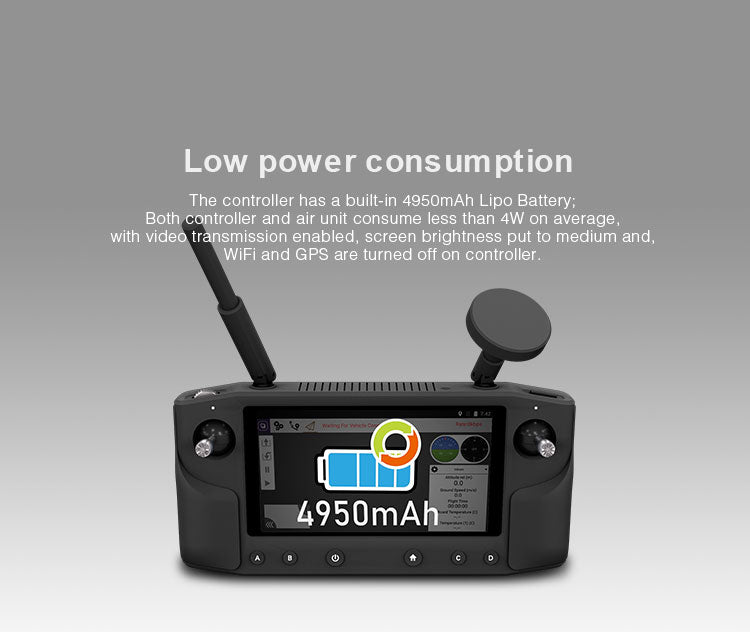

- Power: 4950 mAh LiPo battery
- Charging: microUSB port, 5v 2A
- Power consumption: < 4W (medium screen brightness, WiFi off, GPS off)
- Size: 217 × 106.5 × 31mm (antenna excluded)
Air Unit:
- 2x micro HDMI input for external cameras
- 5v~12v 2pin power input interface
- 3.3v/5v level 3pin UART interface
- 2x 3.3v level 4pin RC output connectors (S.bus, S.bus inverted, PPM output)
- microUSB for upgrades (supports OTG mode)
- Frequency and status reset button
- 2 LED used to indicate the frequency and picture status
- 2x MMCX antenna jack for signal transmission and ground communication
- Signal bandwidth: 10/20MHz
- Power consumption: < 4W
- Size: 78.5x30x13mm
