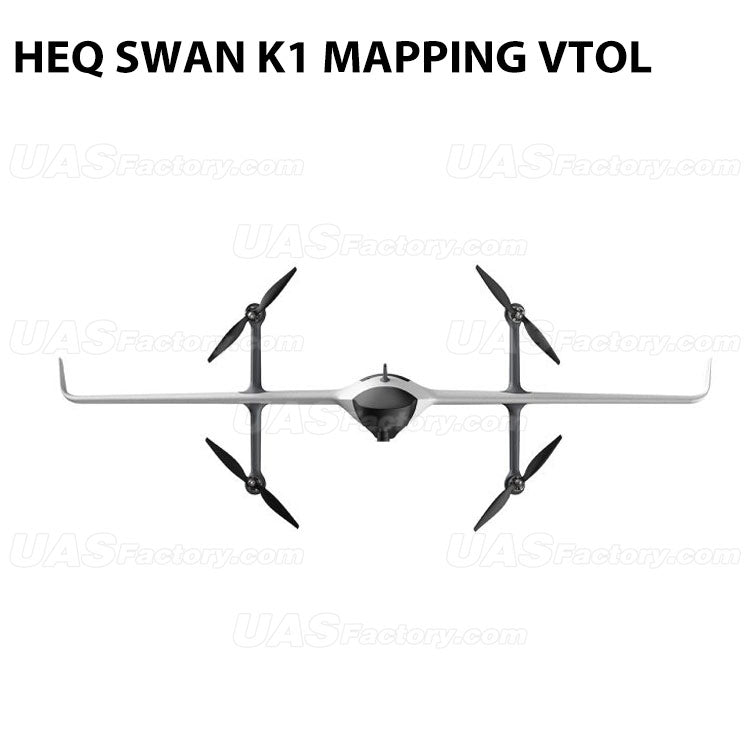

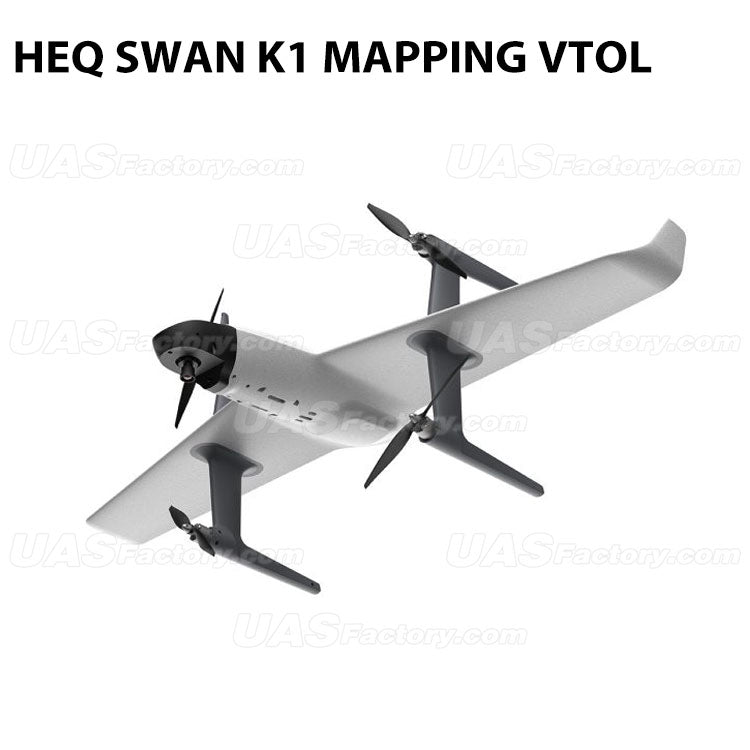

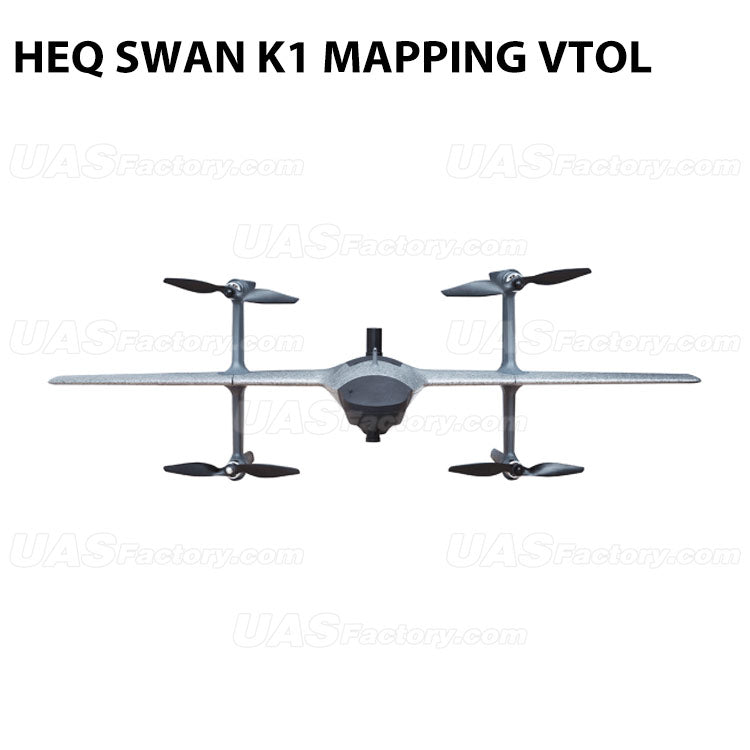

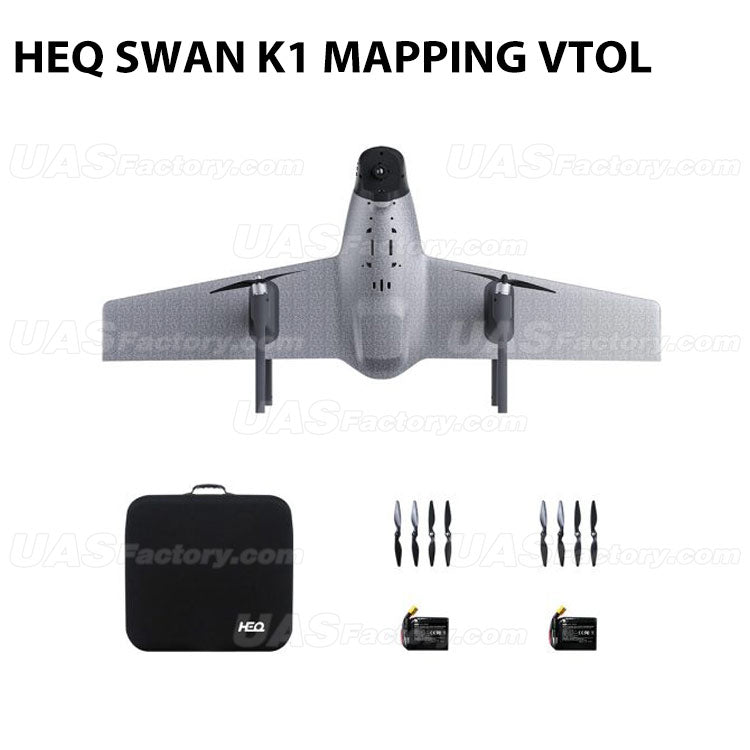

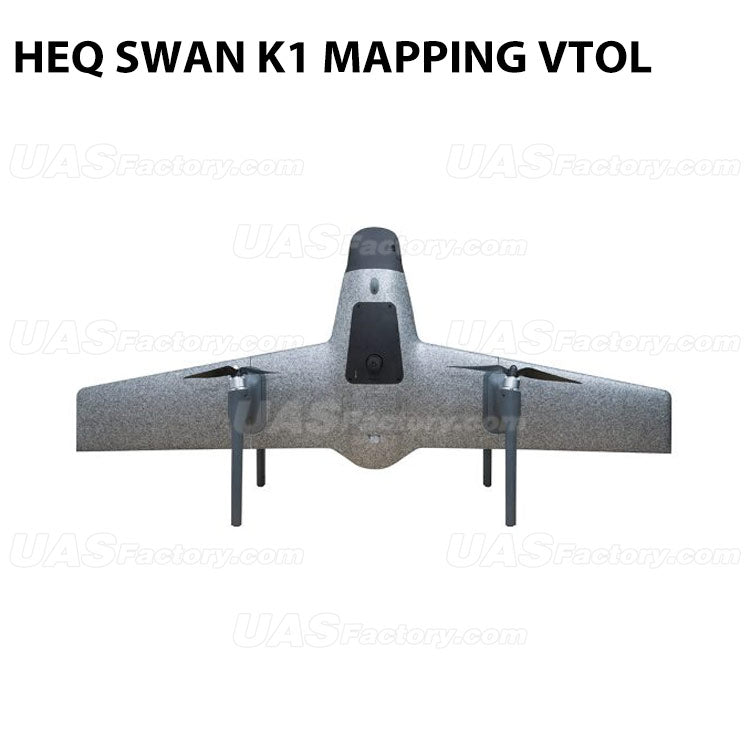

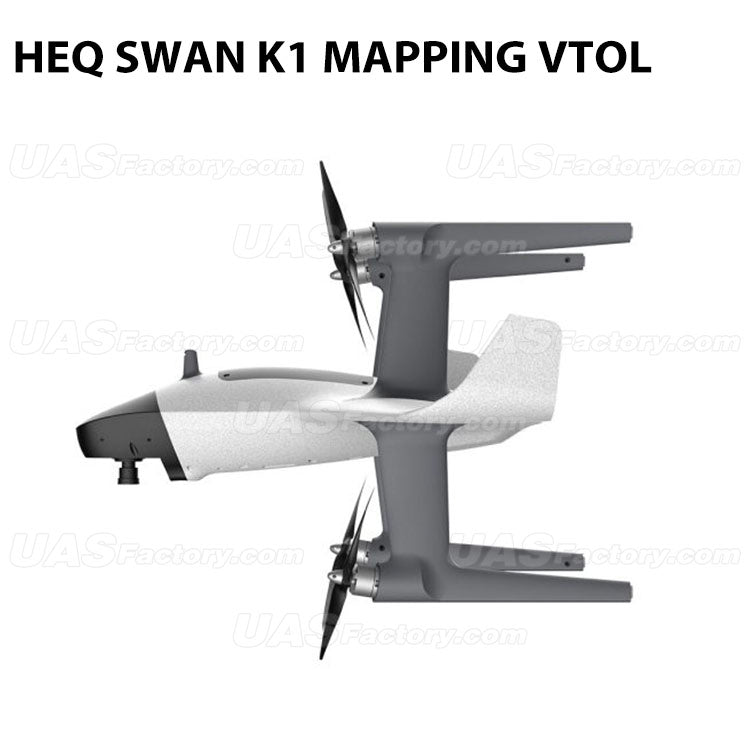

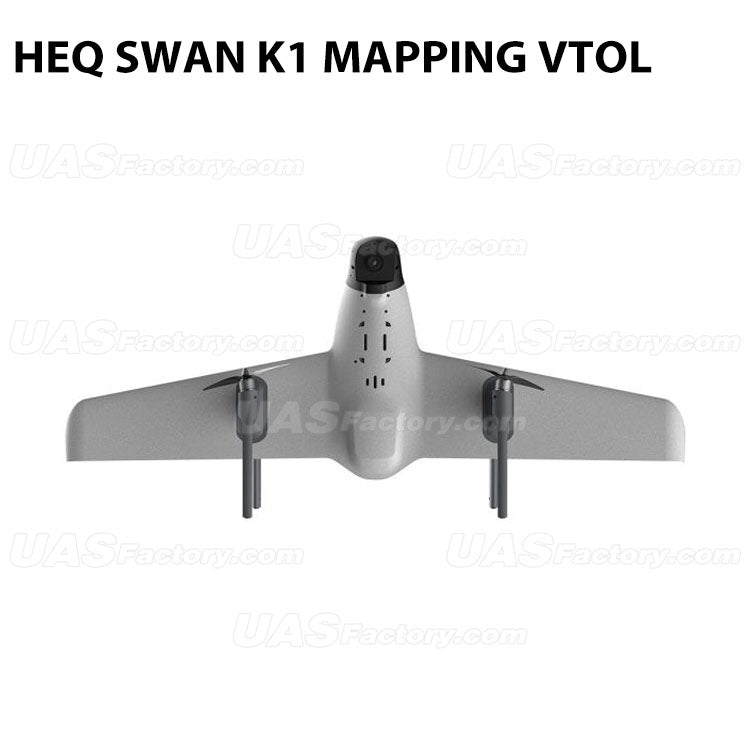

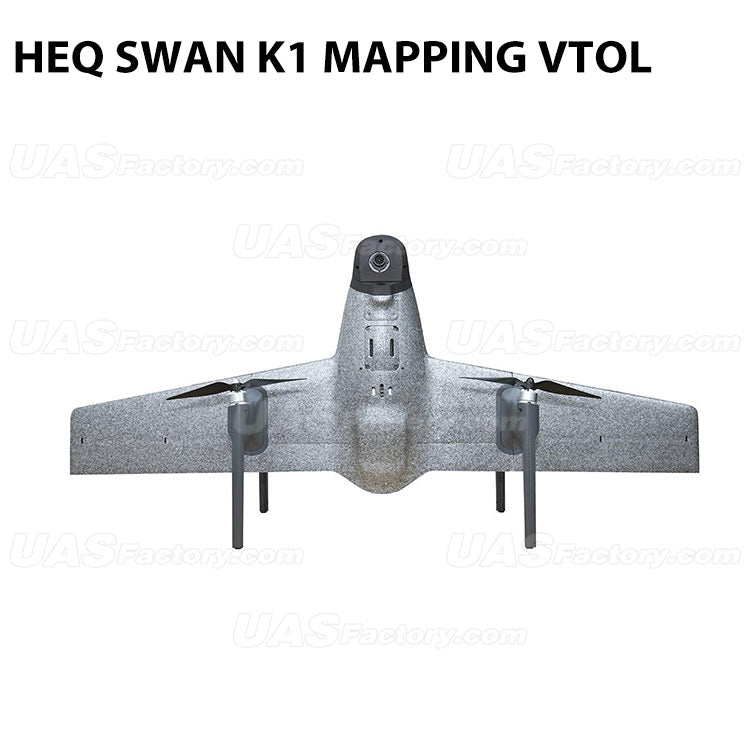

HEQ Swan K1 Mapping VTOL Mapping Drone
The HEQ Drone Swan-K1 Mapping VTOL is a Small VTOL Mapping UAV for surveying and mapping fixed-wing UAV that can take off and land vertically, as well as switch flight modes with one button. Swan K1 Mapping drone adopts no rudder surface control technology, which brings users a minimalist control experience. The most important is it could get a centimeter-accurate Map without GCPs (ground control points), which truly achieves GCPs-free control measurement. Swan-K1 mapping has the advantages of being lightweight, portable, convenient for disassembly and installation, single-person operation, long battery life, etc. advantages. It can be used in surveying and mapping, measurement, remote inspection, power inspection, urban planning, energy projects, and road construction projects, mine surveying and other industries.
HEQ Swan K1 VTOL Mapping Drone Specifications
| Camera | |
| Size | 75×65×90 mm (including 25 mm lens) |
| Weight | 220g (including lens) |
| Pixel | 24.3 million pixels |
| Camera frame | APS frame |
| Sensor size | 23.5×15.6 mm |
| Maximum resolution | 24MP |
| Lens mount | Sony E mount |
| Access current | 2~7S 10~30V |
| PPK module | |
| Operating temperature | -30~+75℃ |
| GNSS signal | GPS、GLONASS、BDS、Galileo |
| GNSS channel | 72 |
| Update rate | 5Hz |
| Input voltage | 5V |
| Antenna voltage | 3.3V |
| Average current | 25mA |
| Data storage | 16 GB |
| Data Format | RINEX |
| Antenna interface | Mcx |
| Light | Trigger, satellite, storage, power |
| Horizontal accuracy | 2 cm+1ppm |
| Vertical accuracy | 4 cm+1ppm |
| Work efficiency | |
| Overlap rate | 80%×70% Resolution 5/10/20 cm 60 mins flight time |
| 1：500 Flying height 210 m | 2-3 square kilometers per flight |
| 1：1000 Flying height 420 m | 4-5 square kilometers per flight |
| 1：2000 Flying height 840 m | 8-9 square kilometers per flight |
| Operation accuracy | |
| 1：500 Without ground control points | Horizontal accuracy≤ 5 cm |
| Vertical accuracy≤ 5 cm | |
| 1：1000 Without ground control points | Horizontal accuracy≤ 8 cm |
| Vertical accuracy≤ 10 cm | |
| 1：2000 Without ground control points | Horizontal accuracy≤ 15 cm |
| Vertical accuracy≤ 20 cm |
