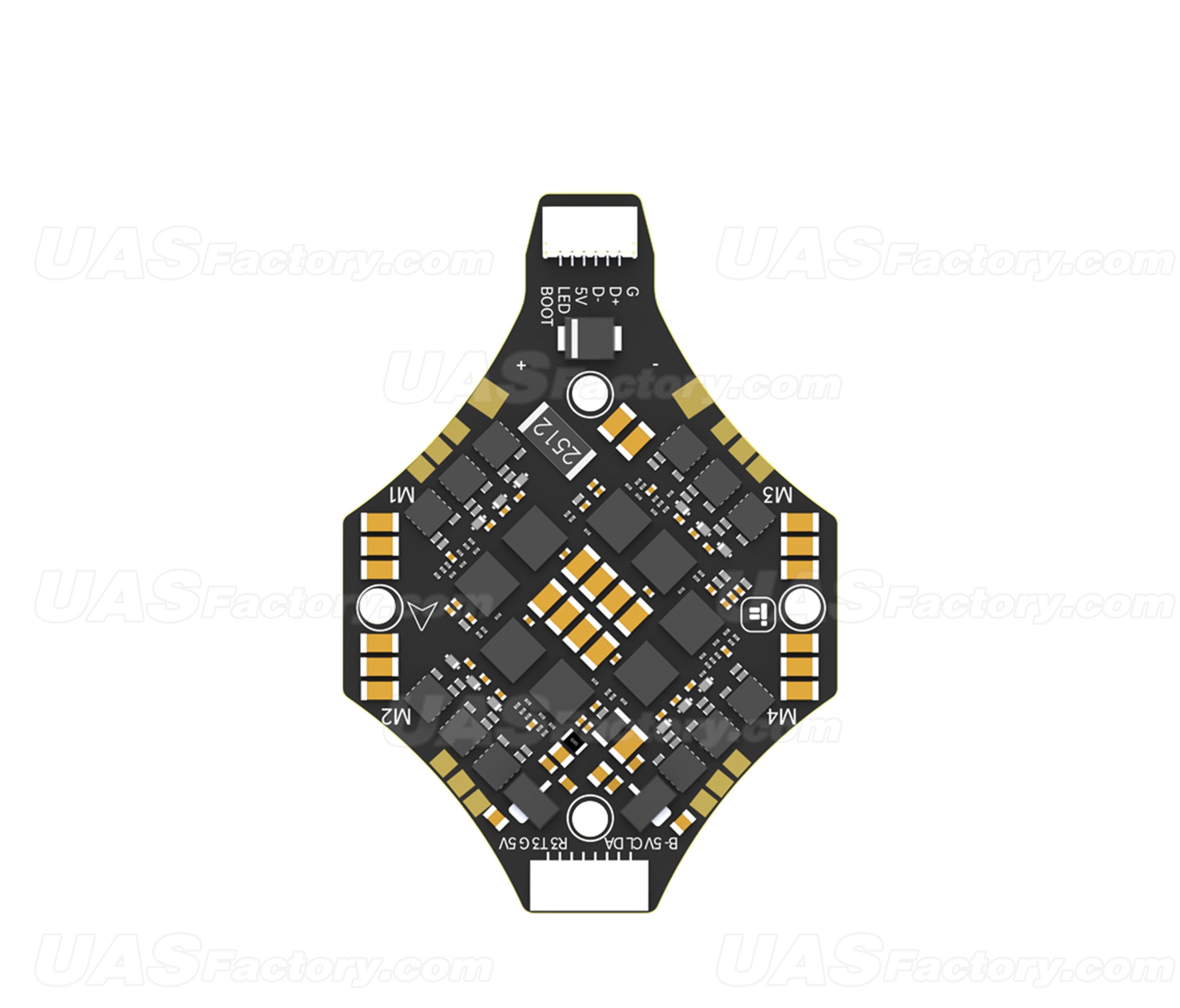

Defender 25 F7 AIO

Description
This is new generation F7 AIO designed for Defender 25. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work. Solder your motor wires on and let's go!

Highlights
Pass-through DJI O3 and Caddx Vista/Polar Connector
MCU: STM32F722
Gyro: ICM42688
OSD: NO
Blackbox: 32MB Onboard Flash
Gyro: DPS310
Weight: 12.8g±0.2g

FC Specifications
MCU: STM32F722
Gyro: ICM42688
Blackbox: 32MB Onboard Flash
BEC output: 5V 2.5A
WS2812 LED Strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: SH1.0 to Type-C adapter
OSD: N/A (HD VTX version)
FC Firmware： IFLIGHT_BLITZ_F722_X1
Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 32.5*32.5mm
Input voltage: 2-4S, support LIHV battery
Smartaudio / IRC Tramp VTX protocol supported

ESC Specifications
ESC MCU: STM32G071
Driver: FD6288
Input voltage: 2-4S Support LIHV battery
Output current: 20A, peak value 30A (10 seconds)
ESC firmware: IFLIGHT_BLITZ_G071_01
Current sensor: ratio 200 (1/10mV/A)
BEC: NO
ESC Telemetry: Yes（PCB routed, set UART6 for telemetry）
Bidirectional DShot: Yes
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

Package included
1 x Defender 25 BLITZ F7 AIO
1 x Capacitor 470uF/35V (Onboard)
1 x XT30U Male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicon grommets
