Chinowing T40 Dual Screen Ground Control

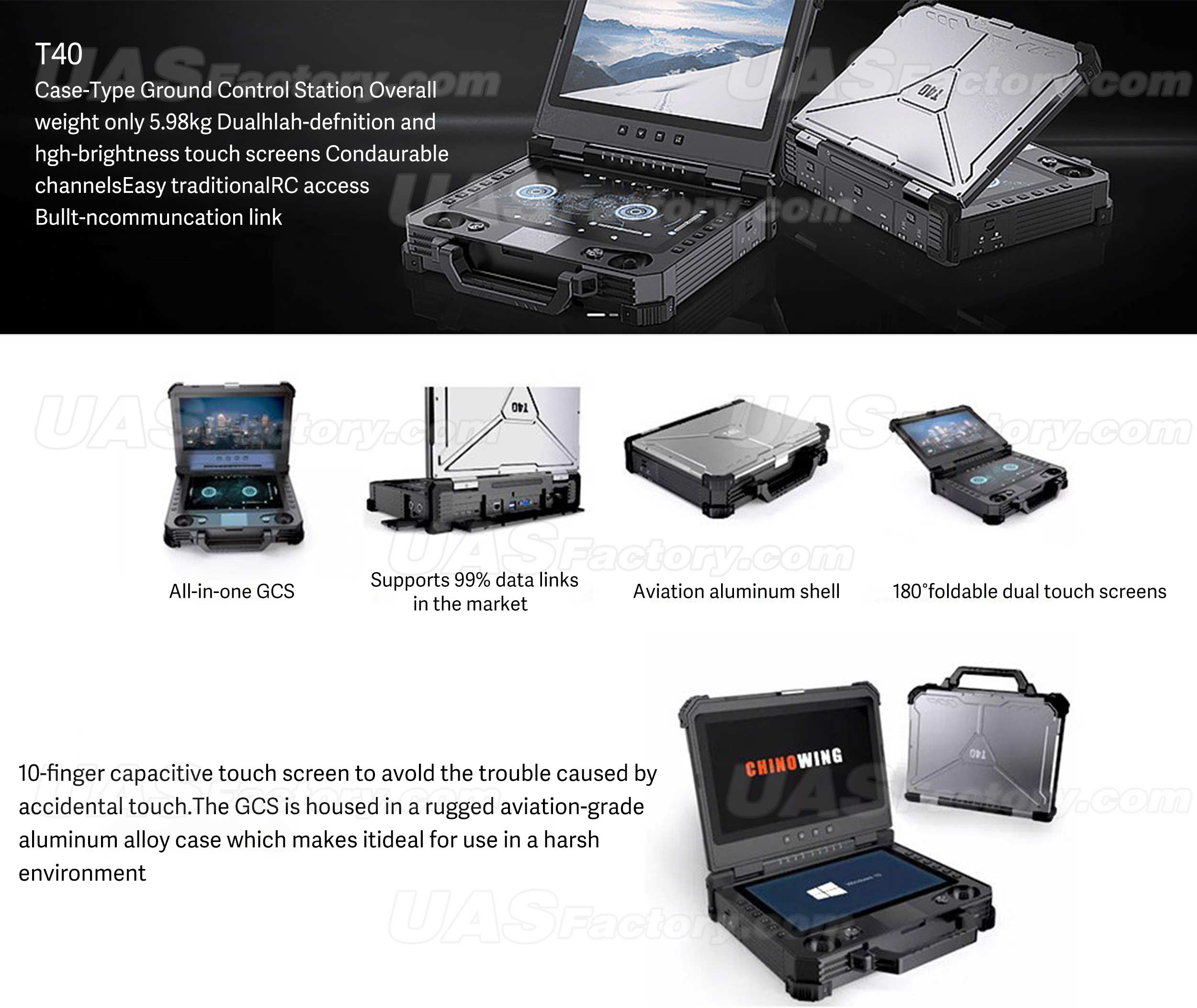

Chinowing T40 dual screen ground control station (Intel i7 8565U/10500U) integrating data transmission, video transmission and remote control. The T40 UAV ground station adopts a solid aviation aluminum alloy shell, which is waterproof and dustproof. Suitable for harsh environments.

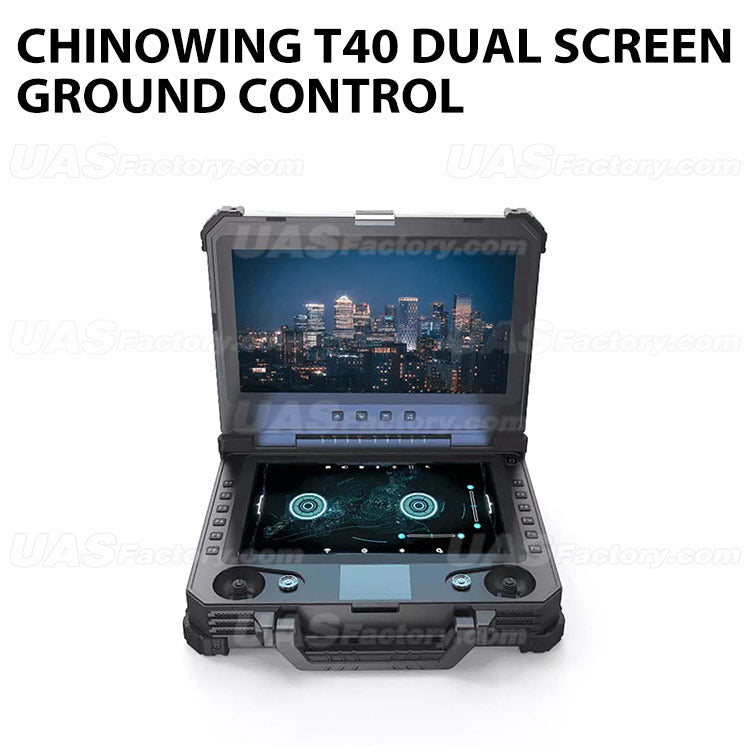

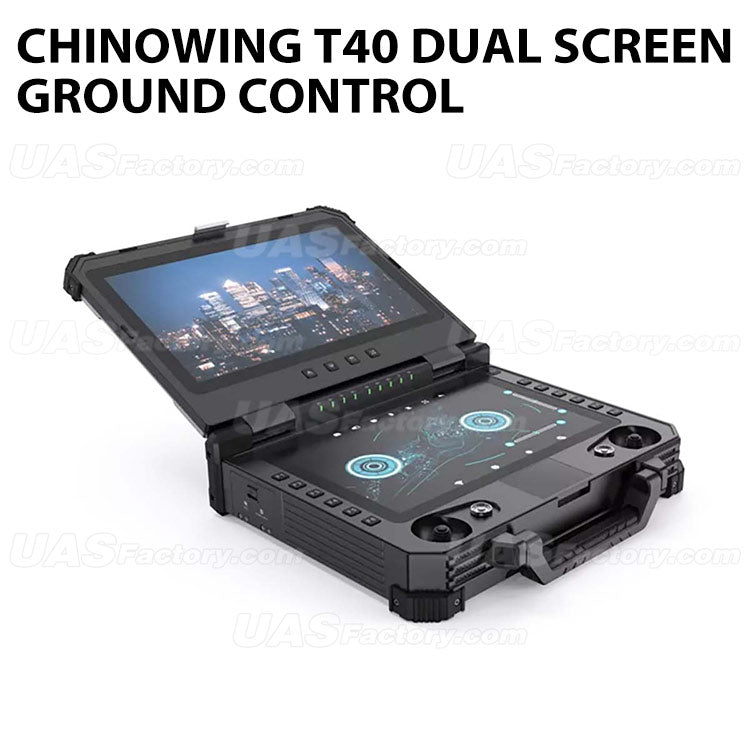

Double touchscreen with high resolutions and high brightness are installed in a foldable design that can be opened up to 180°. The upper screen is a 13.3″ screen with 1000nit brightness and 1920×1080 resolution. The lower screen is a 12.3″ screen with 1500nit brightness and 1280×800 resolution. There is no problem working with the system under direct sunlight.

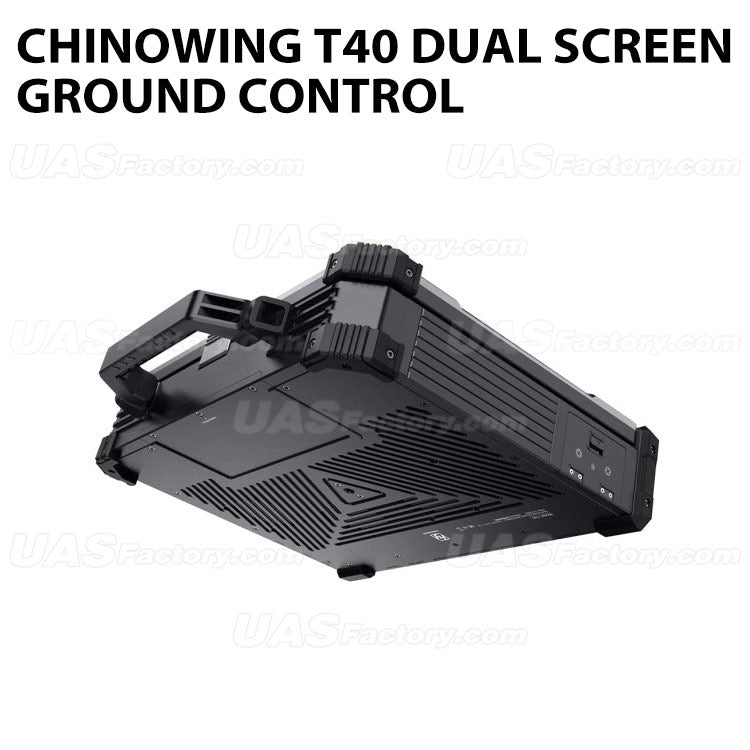

The overall weight is only 5.98 kg due to the aviation-grade aluminum alloy shell.

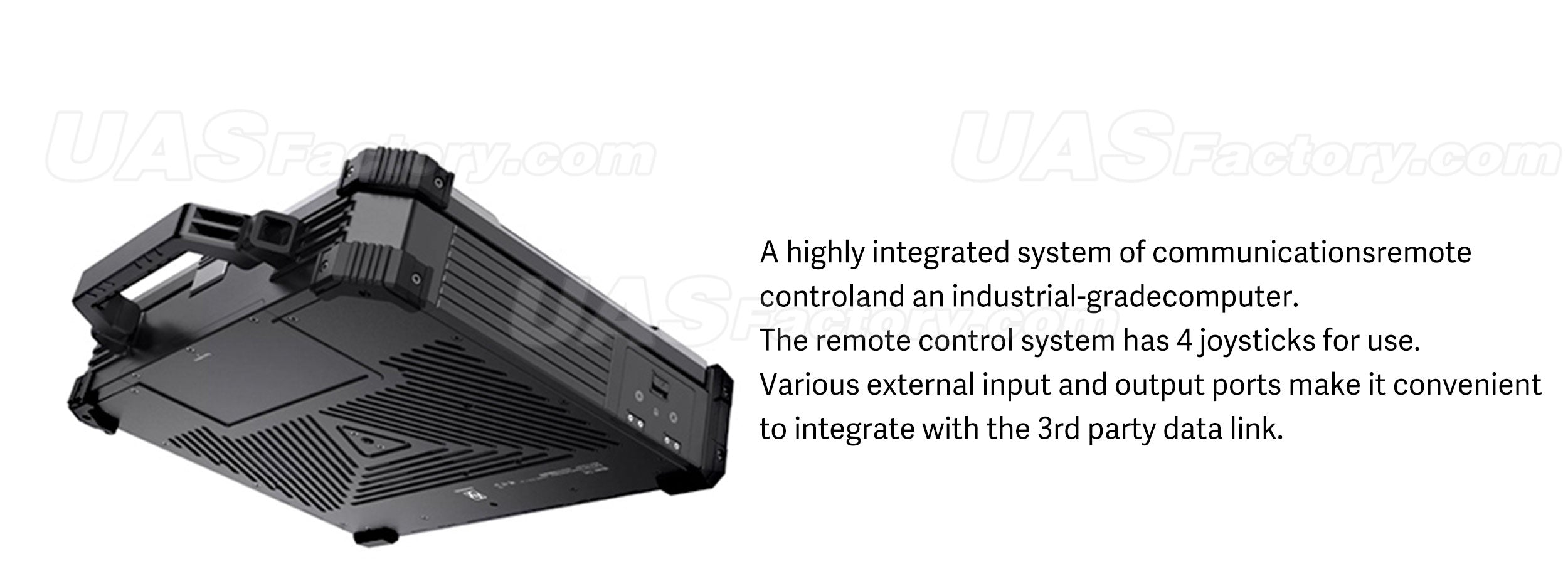

The remote control system has 4 joysticks for use, it also supports traditional RC access for remote control.
Various external input and output ports allow seamless integration with 3rd party data links. HID USB and programmable switches can be set via the software. It is especially suitable for UAV, UGV, USV, Robots, etc.
In addition to 27 physical channels, the T40 includes a Remote Control configuration interface that allows users to assign joysticks, switches, and buttons to specific channels. Its lightweight aluminum alloy shell and 3-in-1 communication capabilities make the T40 a reliable and versatile device.

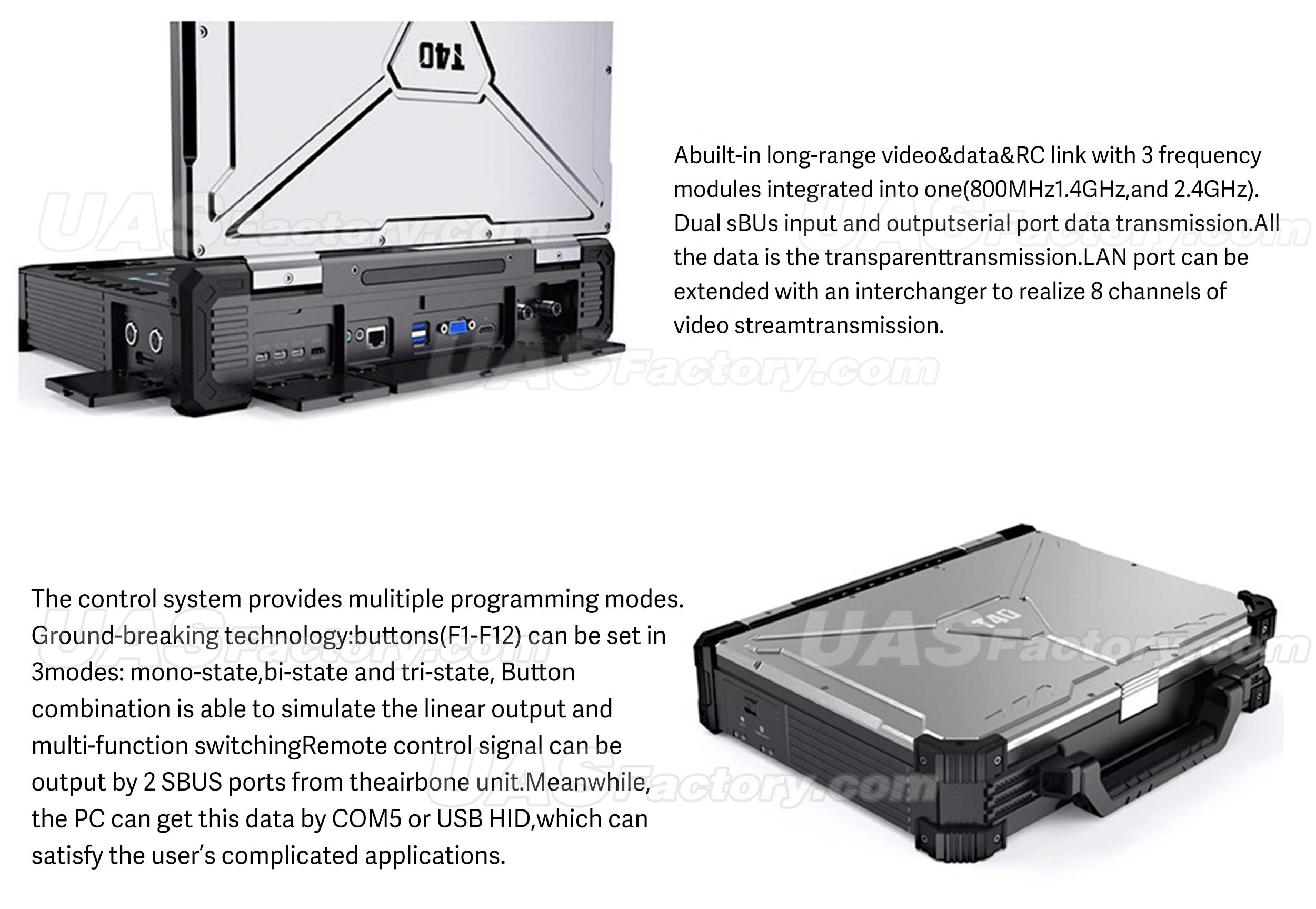

Chinowing T40 adopts dual SBUS input and output, serial data transmission. All data is transmitted transparently. The LAN port expandable switch can realize 8-way video stream transmission.
It supports the installation of Windows or LINUX operating systems, and most ground control station (GCS) software on the market, including MissionPlanner and QGroundControl, can be installed on it.
Features
- Aviation grade aluminum shell, the overall weight only 5.98 kg.
- Built on Intel-based PC, real industrial-grade GCS
- Dual touch screens with high definition and brightness and extended touchpad.
- Video & telemetry & RC & computer in one
- Dual SBUS output, able to control the drone and the payload simultaneously
- Compatible with 100% data link in the market.

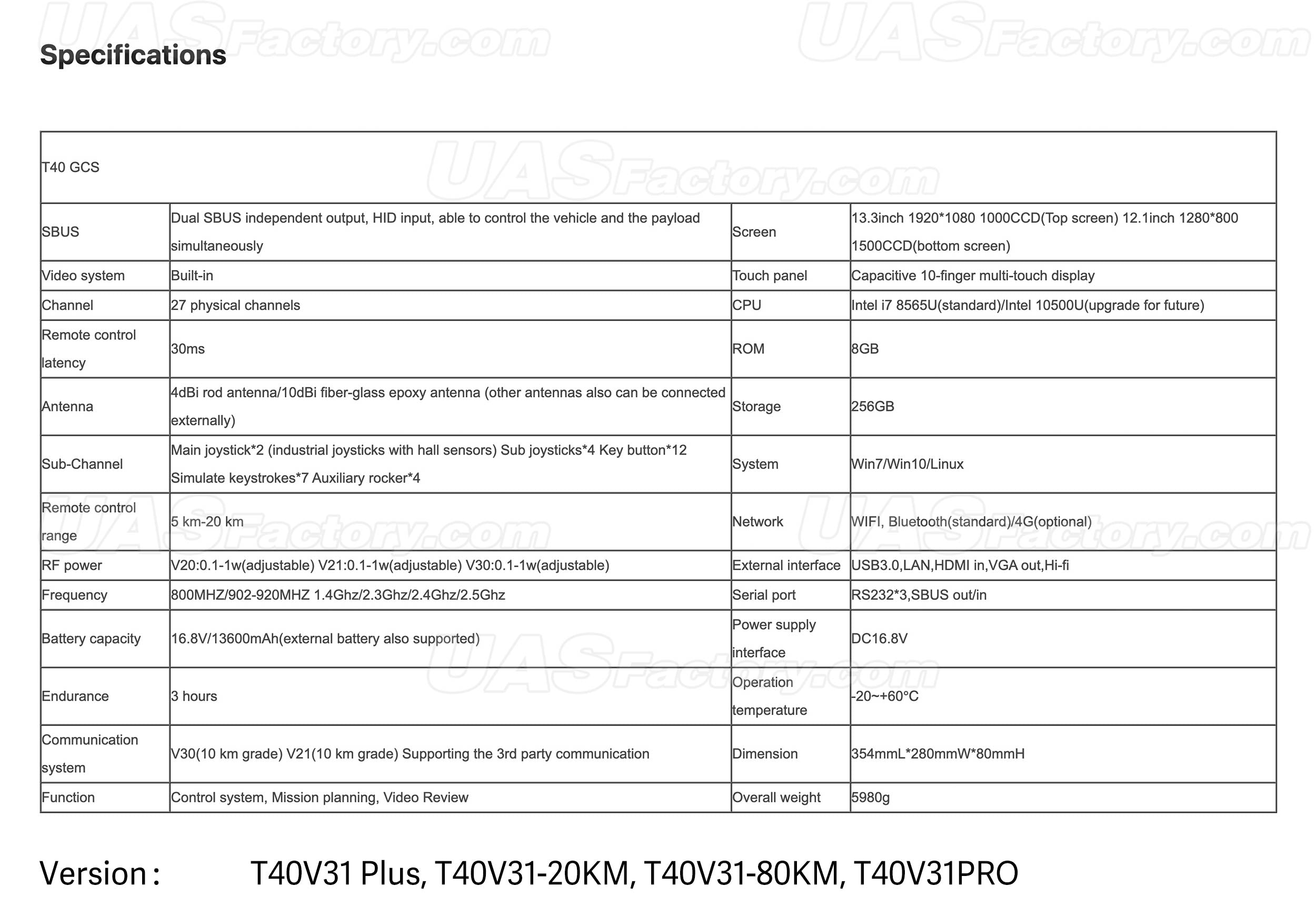

Chinowing T40 Description
| SBUS | Dual SBUS Independent Output, HID Input | Video System | Built-in |
|---|---|---|---|
| Channel | 27 Physical Channels | Remote Control Latency | 30ms |
| Antenna | 4dB Rod Antenna/10dBi Fibre-glass Epoxy Antenna (other Antennas Also Can Be Connected Externally) | Sub-Channel | Main Joysticks*2 Sub Joysticks*4 Key Button*12 Simulate Keystrokes*7 |
| Remote Control Range | 5-20 km | RF Power | V20:0.1-1W(adjustable) V21:0.1-1W(adjustable) V30:0.1-1W(adjustable) |
| Frequency | 800MHZ/902-920MHZ 1.4Ghz/2.3Ghz/2.4GHz/2.5GHz | Battery Capacity | 16.8V/13600mAh（external Battery Also Supported) |
| High Light | dual screen UAV ground control system
UAV Ground Control System 5.98 kg Intel I7 8565U UAV ground control stations |
||
