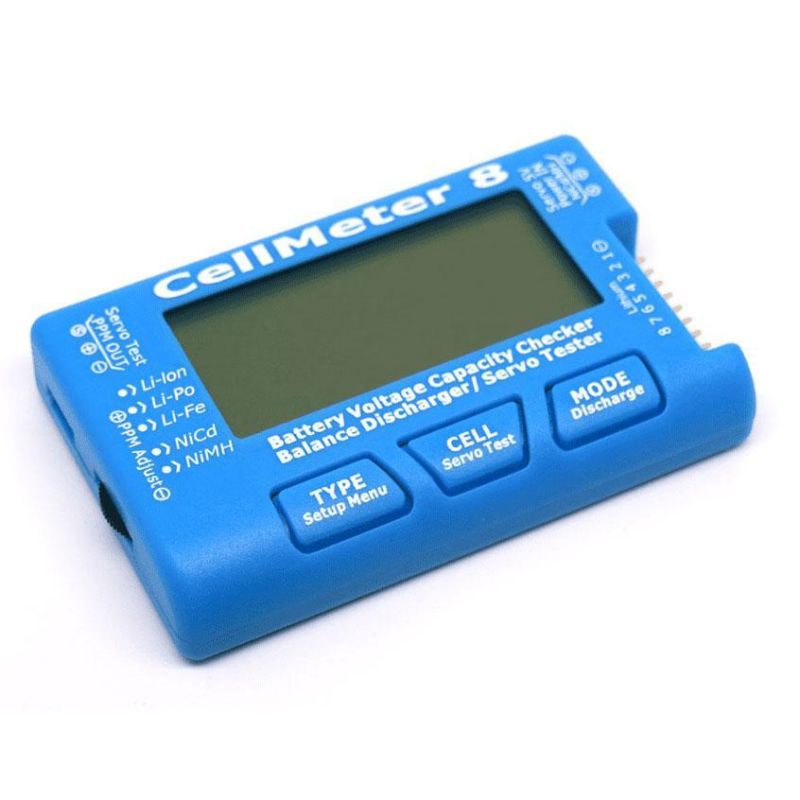

Cellmeter 8 Digital Lipo Battery Voltage Capacity Checker Servo Tester Blue RC Tools

Your Purchase Includes:
1x CellMeter 8 V2 2-8S Battery Checker

Features:
- High visibility LCD display screen with LED light
- Port for balance plug for up to 8 cell Lipo, LiFe, or Li-Ion batteries

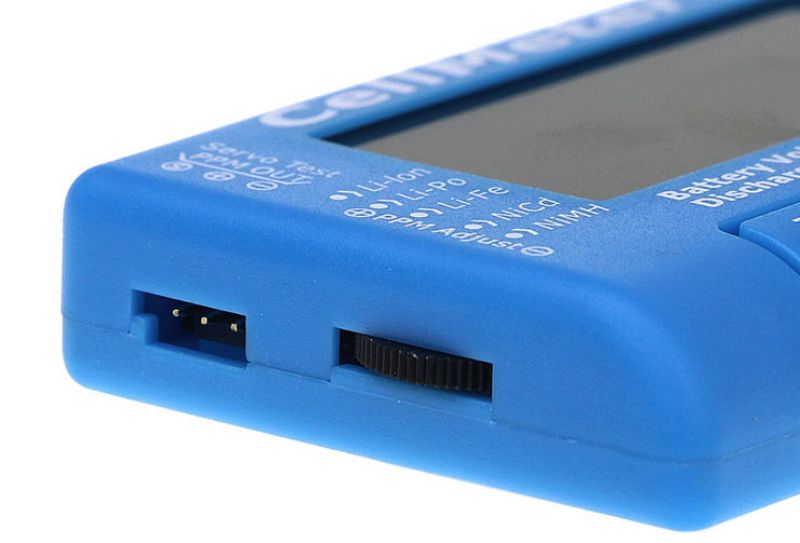

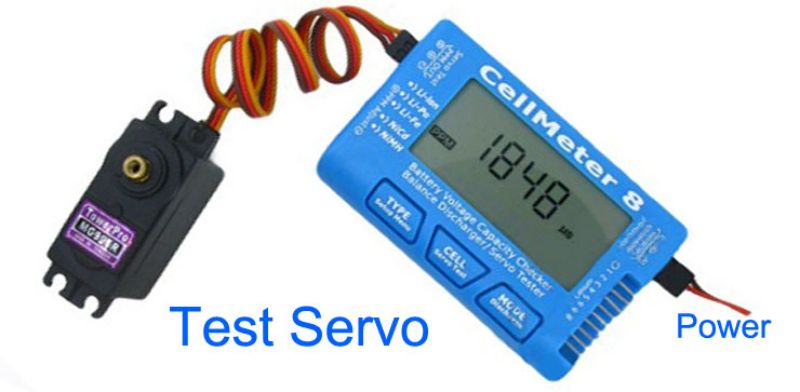

- Can be used as Servo tester to test standard and narrow servo.
- Port for discharge plug of NiMh/NiCd batteries

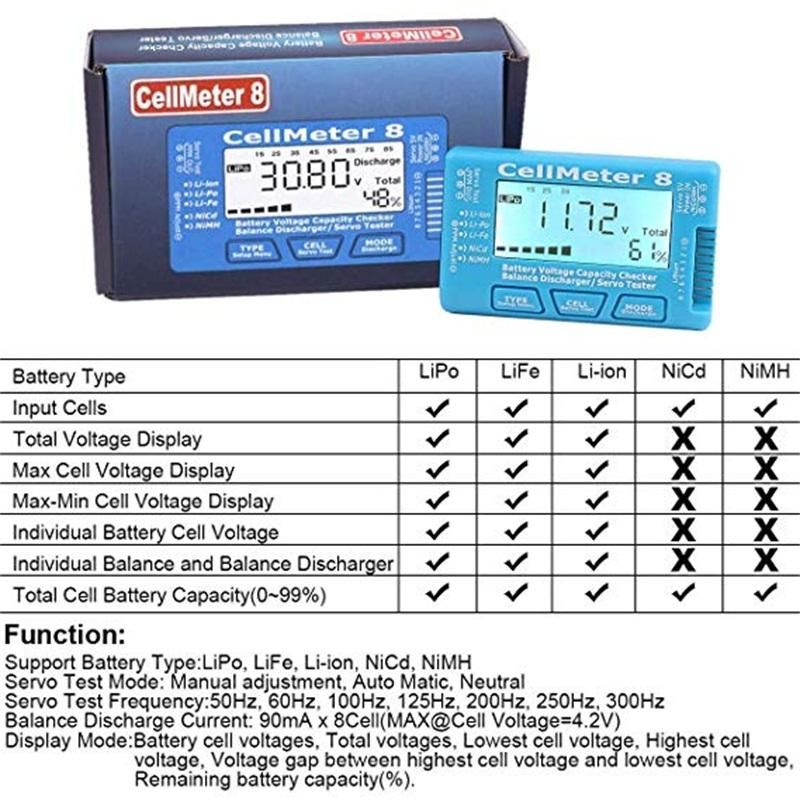

- can be used to check the battery voltage of Lithium batteries including Lipo, LiFe, Li-Ion, as well as NiMH and NiCd batteries.

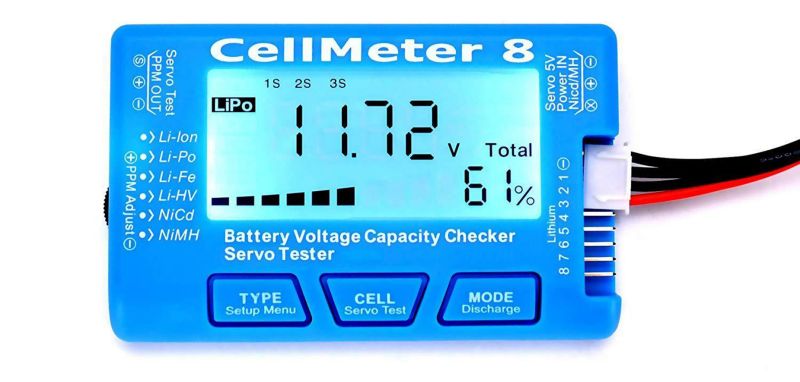

- measure the voltage of both individual cells and full battery voltage, and can also indicate the highest voltage cell, lowest voltage cell and difference

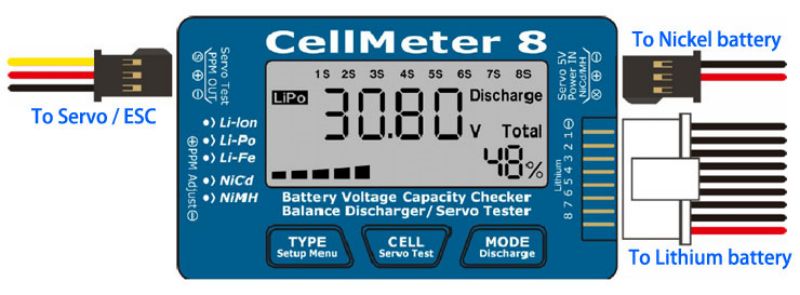

Connections:

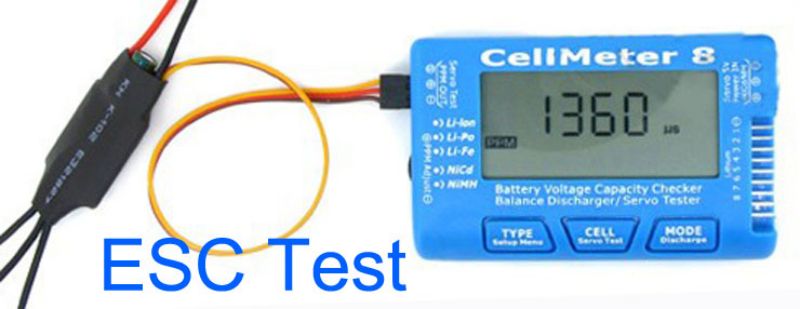

It can connect to Servo, ESC, Lithium battery and Nickel battery as following:

PARAMETERS SETTING:
1. Connect the lithium battery or nickel battery to CellMeter8
2. Long press Type button over 1 second to enter parameter setting mode.
3. Short press Type button to enter the next parameter settings,
4. Short press CELL key to reduce the parameter value, Long press CELL button to reduce the value quickly. Short press MODE key to increase the parameter value. Long press MODE button to increase the value rapidly.
5. Long press Type button over 1 second to exit parameter setting mode.

Discharge cut-off voltage setting range: 2.000~4.200V
Servo Test Frequency Setting: 50Hz, 60Hz, 100Hz, 125Hz, 200Hz, 250Hz, 300Hz
Servo Test Signal Range setting: 500~2500us, 1000~2000us

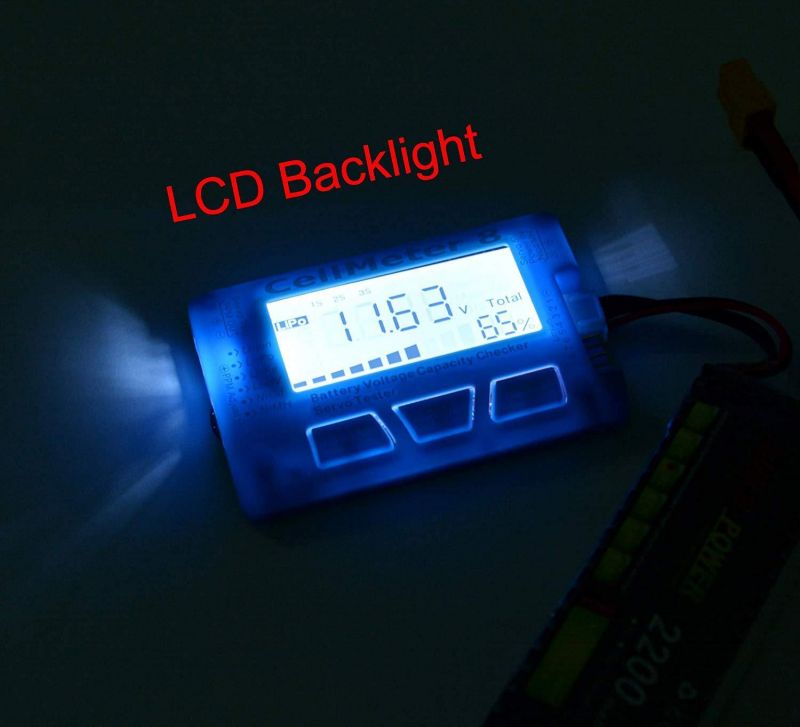

LCD Backlight opening time setting: off, 10s~60s, on
Sound switch setting: on, off
