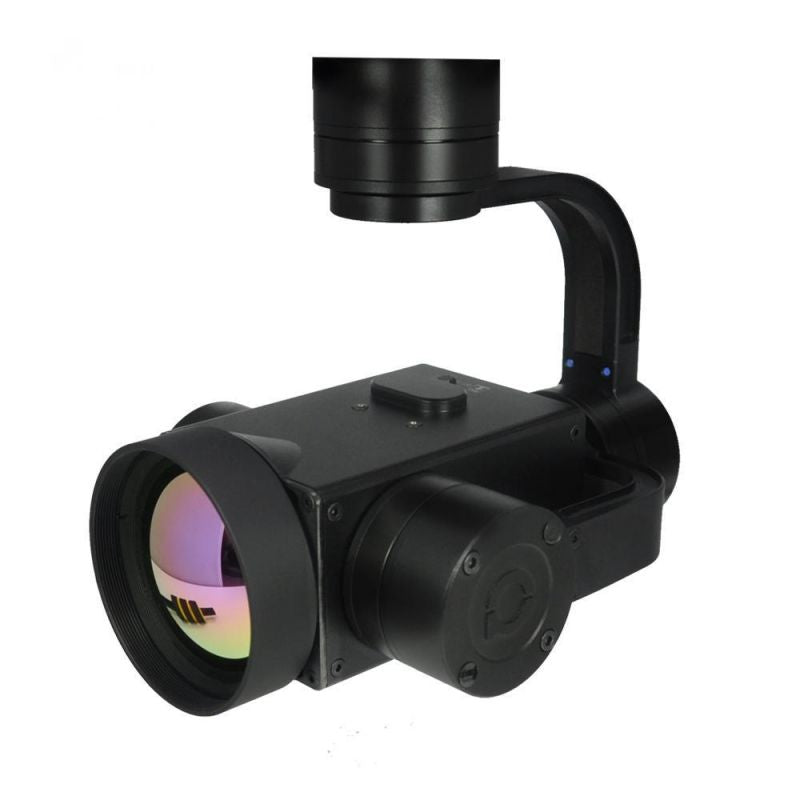

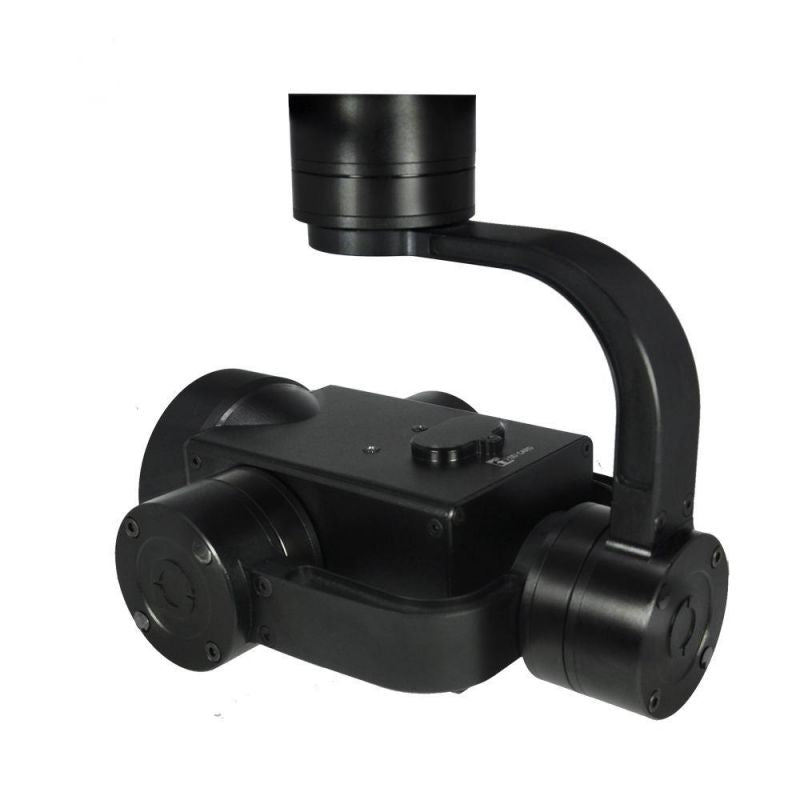

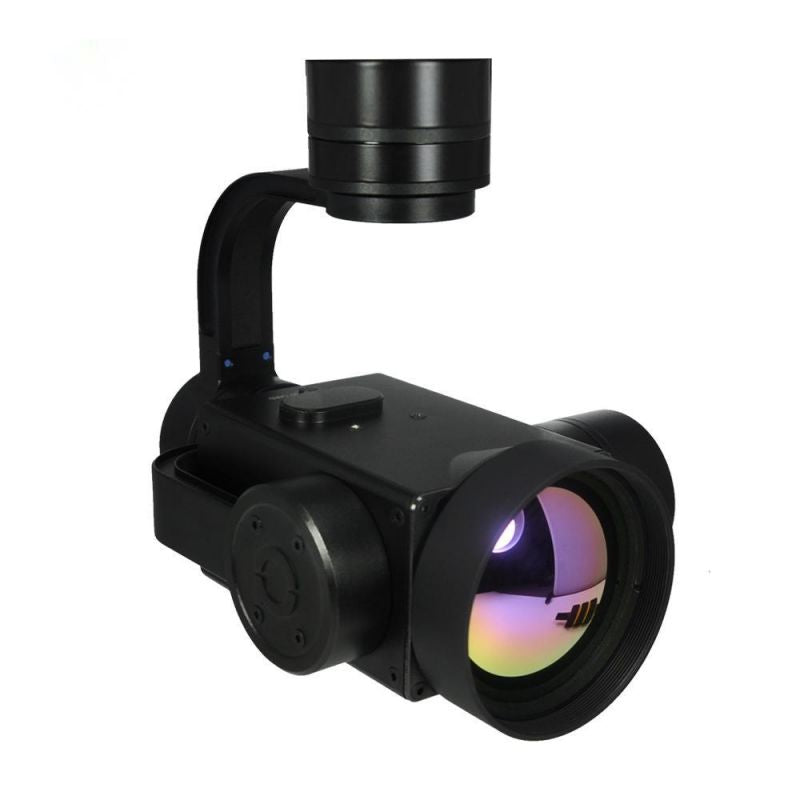

ZIR50T Single Infrared Thermal Sensor Tracking Camera with Thermometry for solar station
The thermal imaging camera lens size of Z-IR50 is 50mm. It has just one infrared camera. There are 3 color palette to choose,
white, iron red, pseudo color. Z-IR50 is a pinpoint-precision professional 3-axis gimbal which features high stability, small
size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision
encoder in each motor. Z- IR50 supports PWM control, S.BUS contral and serial command control, suitable for close range remote
control or remote data command control.
The speed of Z-IR50 gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast
speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center
function will allow the gimbal return to initial position automatically and rapidly.
white, iron red, pseudo color. Z-IR50 is a pinpoint-precision professional 3-axis gimbal which features high stability, small
size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision
encoder in each motor. Z- IR50 supports PWM control, S.BUS contral and serial command control, suitable for close range remote
control or remote data command control.
The speed of Z-IR50 gimbal is adjustable, LOW speed mode is used for large zoom range, the control will be more accurate; Fast
speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center
function will allow the gimbal return to initial position automatically and rapidly.

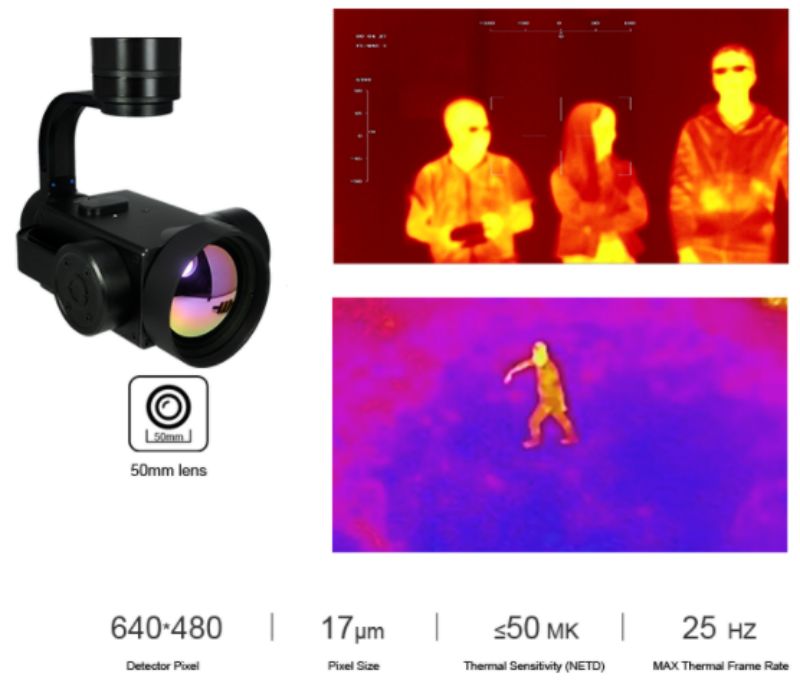

Powerful 50mm Thermal Imager

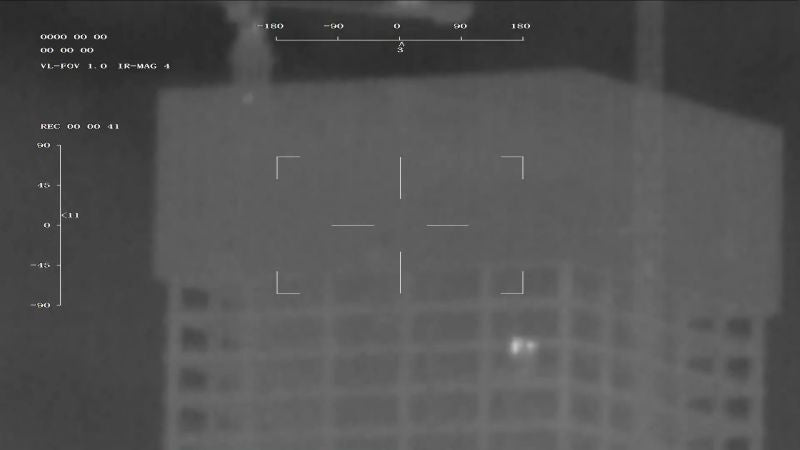

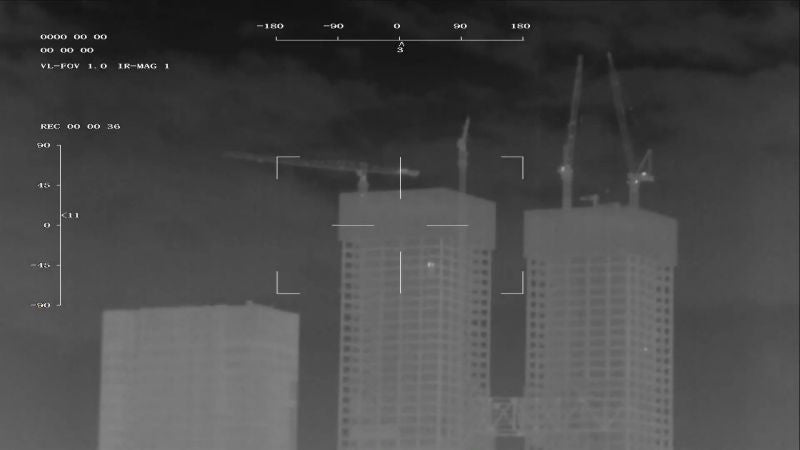

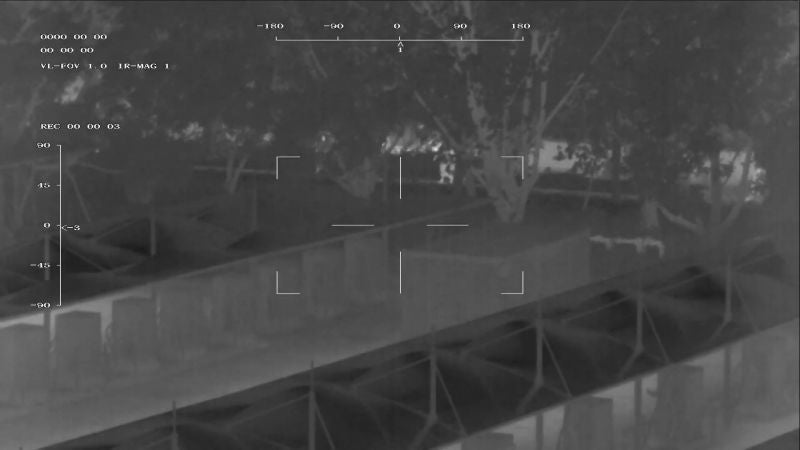

Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) with 50mm lens thermal image sensor, ZIR50T can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.
Hardware Parameter
|
|
Working voltage
|
12V
|
Input voltage
|
3S ~ 4S
|
Dynamic current
|
500mA @ 12V
|
Idle current
|
400mA @ 12V
|
Power consumption
|
≤ 3.85W
|
Working environment temp.
|
-20℃ ~ +50℃
|
Output
|
micro HDMI(HD output 1080P 60fps) / IP / SDI
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
Control method
|
PWM / TTL / S.BUS / TCP
|
Gimbal Spec
|
|
Pitch/Tilt
|
±90°
|
Roll
|
±85°
|
Yaw/Pan
|
±170°/ ±360°*N (IP/SDI output)
|
Vibration angle
|
Pitch/Roll: ±0.01°, Yaw:±0.01°
|
One-key to center
|
√
|
Thermal Imager Spec
|
|
Lens size
|
50mm
|
Horizontal FOV(°)
|
12.4
|
Vertical FOV(°)
|
9.3
|
Diagonal FOV(°)
|
15.5
|
Detective Distance (Man: 1.8x0.5m)
|
1471 meters
|
Recognize Distance (Man: 1.8x0.5m)
|
368 meters
|
Verified Distance (Man: 1.8x0.5m)
|
184 meters
|
Detective Distance (Car: 4.2x1.8m)
|
4510 meters
|
Recognize Distance (Car: 4.2x1.8m)
|
1127 meters
|
Verified Distance (Car: 4.2x1.8m)
|
564 meters
|
Working mode
|
Uncooled long wave (8μm~14μm) thermal imager
|
Detector pixel
|
640*480
|
Pixel size
|
17μm
|
Focusing method
|
Athermal prime lens
|
Emissivity correction
|
0.01~1
|
NETD
|
≤50mK (@25℃)
|
MRTD
|
≤650mK (@characteristic frequency)
|
Image enhancement
|
Auto adjust image brightness and contrast ratio
|
Color palette
|
White, iron red, pseudo color
|
Auto Non-uniform correction
|
Yes (no shutter)
|
Digital zoom
|
2x, 4x
|
Sync correct time
|
Yes
|
Thermometry type
|
Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
|
Temperature warning
|
Optional: overheat warning
|
Thermal Object Tracking
|
|
Update rate of deviation pixel
|
25Hz
|
Output delay of deviation pixel
|
<3ms
|
Minimum object size
|
32*32 pixel
|
Maximum object size
|
128*128 pixel
|
Tracking speed
|
±48 ~ ±192 pixel/frame
|
Object memory time
|
100 frames (4s)
|
Packing Information
|
|
N.W.
|
650g
|
Product meas.
|
100mm*146mm*141mm
|
Accessories
|
1pc gimbal device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with
foam cushion |
G.W.
|
980g
|
Package meas.
|
152*121*167mm
|
