Features high stability, small size, light weight and low power consumption suitable forfor UAV, helicopter, fixed wing plane and rotary wing aircraft, ect. Can be applied in various fields like military reconnaissance, public security surveillance, traffic monitoring, fire fighting, wildlife spotting, disaster management and rescue etc.
| Gimbal spec | |
| Pitch/Tilt | ±90° |
| Roll | ±85° |
| Yaw/Pan | ±150° |
| Vibration angle | Picth/Roll: ±0.02°, Yaw:±0.03° |
| Camera spec | |
| Imager Sensor | 1/3inch CMOS |
| Total pixel | 4MP |
| Optical zoom | 18x, F=4.7~84.6mm |
| Min object distance | 1.5M |
| Viewing angle | Horizontal: 54.8°(Wide end) ~ 3.4°(Tele end) |
| Vertical: 41°(wide end) ~ 2.5°(tele end) | |
| Focus: 66.6°(wide end) ~ 7.2°(tele end) | |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Camera Object Tracking (Optional) | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <15ms |
| SNR | 4 |
| Object size range | 16*16 pixel ~ 160*160 pixel |
| Tracking speed | ±32 pixel/frame |
| Object memory time | 4s |

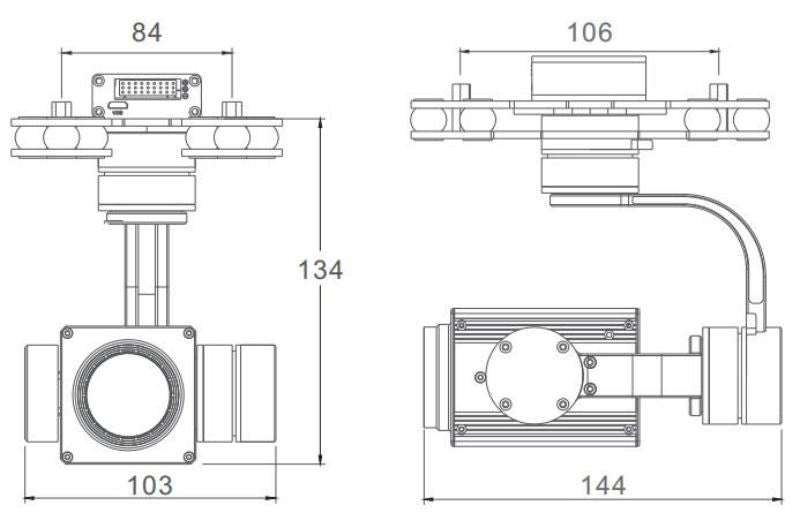

Measurement: 144*103*134mm
