- QIR50T 50mm infrared thermal payload for surveillance and inspection QIR50T 50mm infrared thermal payload for surveillance and inspection
QIR50T 50mm infrared thermal payload for surveillance and inspection
- Description
- Shipping & Returns
- Reviews
Hardware Parameter | |
Working voltage | 12V ~ 16V |
Input voltage | 3S ~ 4S |
Dynamic current | 500mA @ 12V |
Idle current | 400mA @ 12V |
Power consumption | ≤ 3.85W |
Working environment temp. | -20 ℃ ~ +50 ℃ |
Output | micro HDMI(HD output 1080P 60fps) / IP |
Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
Control method | PWM / TTL / S.BUS / TCP |
Gimbal Spec | |
Pitch/Tilt | ±90° |
Roll | ±85° |
Yaw/Pan | ±170°/360°*N(IP/SDI output version) |
Vibration angle | Pitch/Roll: ±0.01°, Yaw :±0.01° |
One-key to center | √ |
Thermal Imager Spec | |
Lens size | 50mm |
Horizontal FOV | 12.4° |
Vertical FOV | 9.3° |
Diagonal FOV | 15.5° |
Detective Distance (Man: 1.8×0.5m) | 1471 meters |
Recognize Distance (Man: 1.8×0.5m) | 368 meters |
Verified Distance (Man: 1.8×0.5m) | 184 meters |
Detective Distance (Car: 4.2×1.8m) | 4510 meters |
Recognize Distance (Car: 4.2×1.8m) | 1127 meters |
Verified Distance (Car: 4.2×1.8m) | 564 meters |
Working mode | Uncooled long wave (8μm~14μm) thermal imager |
Detector pixel | 640*480 |
Pixel size | 17μm |
Focusing method | Athermal prime lens |
Emissivity correction | 0.01~1 |
NETD | ≤50mK (@25 ℃ ) |
MRTD | ≤650mK (@characteristic frequency) |
Image enhancement | Auto adjust image brightness and contrast ratio |
Color palette | White, iron red, pseudo color |
Auto Non-uniform correction | Yes (no shutter) |
Digital zoom | 2x, 4x |
Sync correct time | Yes |
Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
Thermal Oject Tracking | |
Update rate of deviation pixel | 25Hz |
Output delay of deviation pixel | <3ms |
Minimum object size | 32*32 pixel |
Maximum object size | 128*128 pixel |
Tracking speed | ±48 ~ ±192 pixel/frame |
Object memory time | 100 frames (4s) |
Packing Information | |
NW | g |
Product meas. | mm |

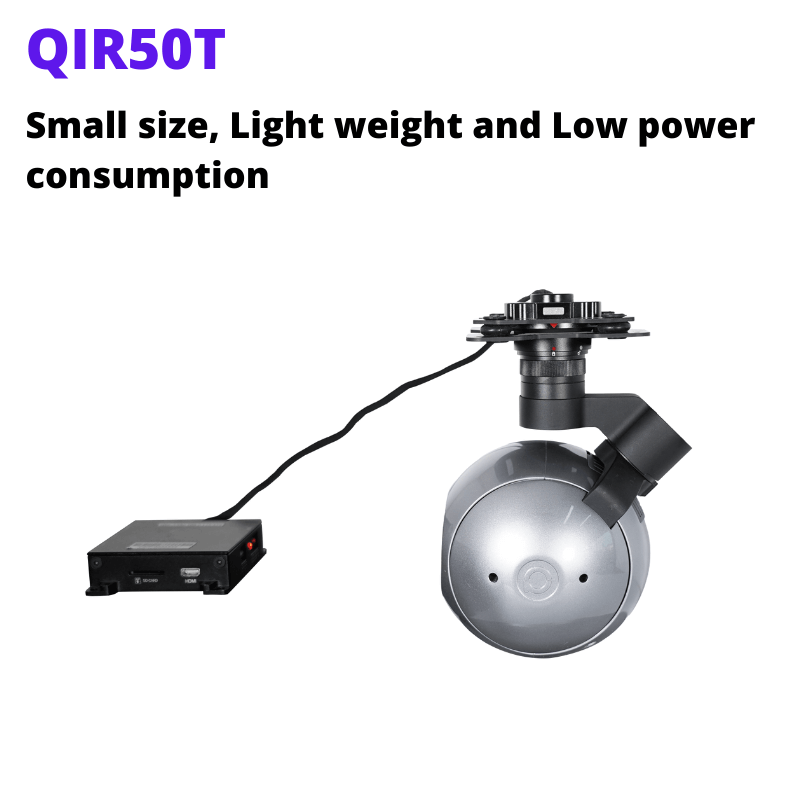

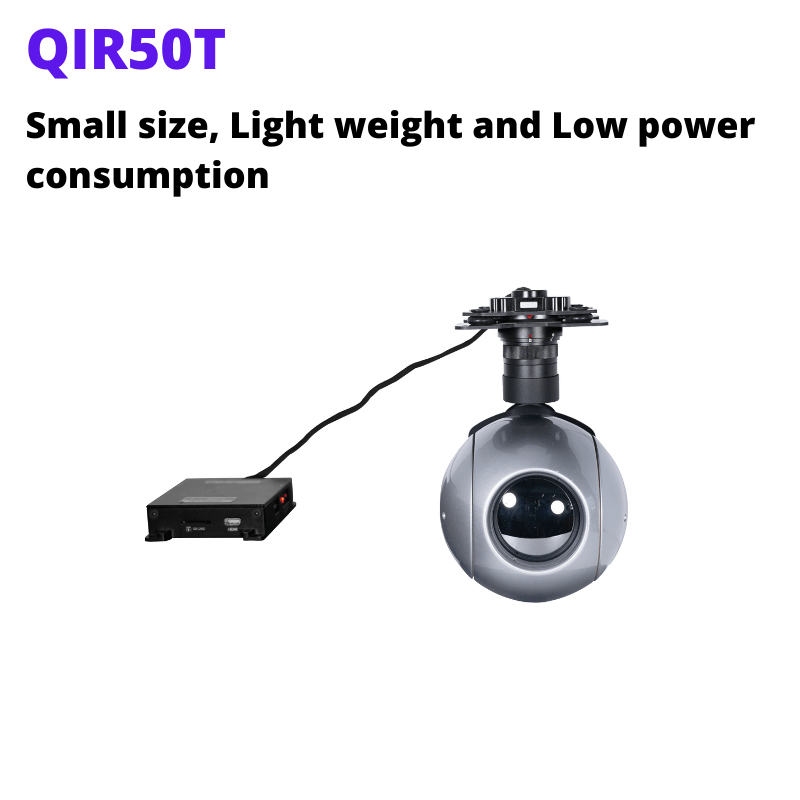

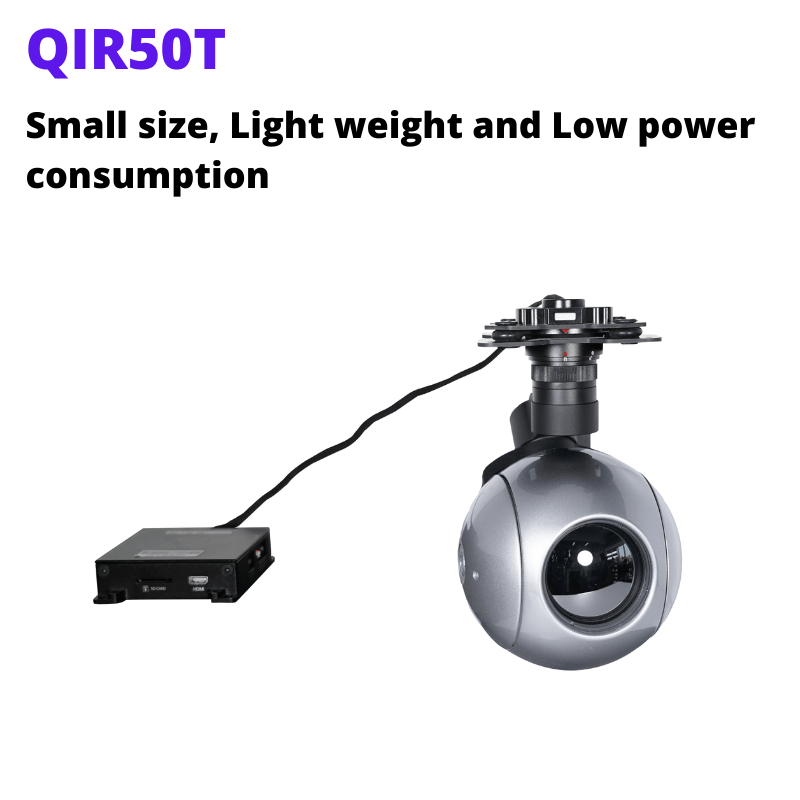

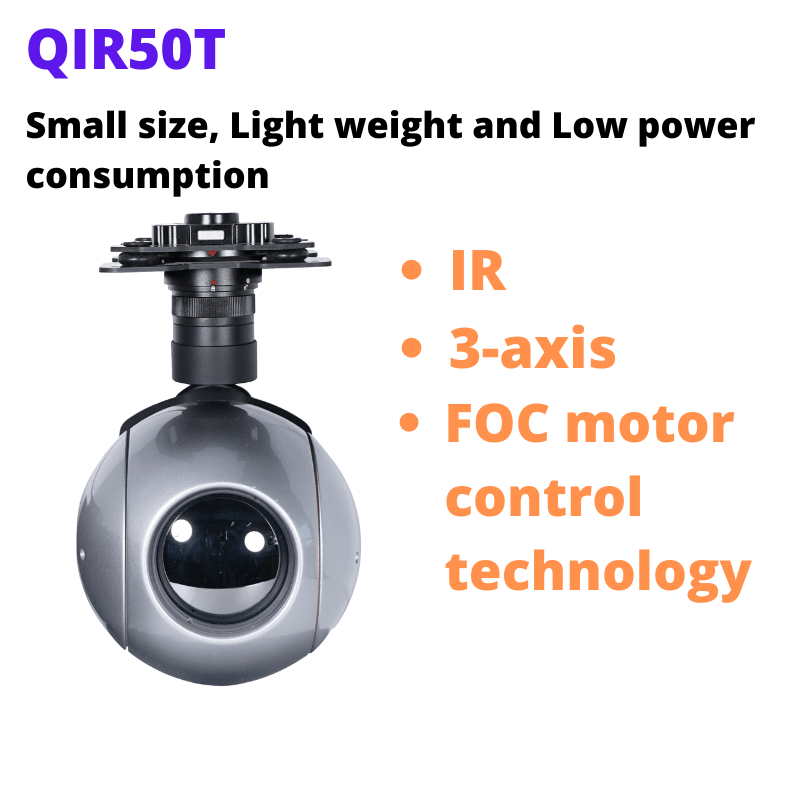

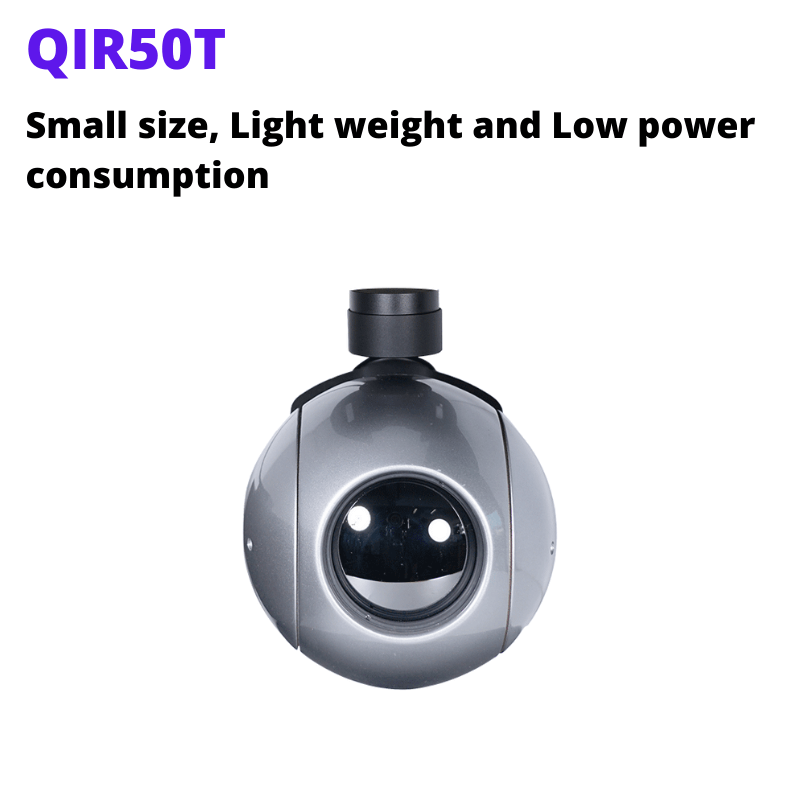

The thermal imaging camera lens size of QIR50T is 50mm. It has just one infrared camera. There are 3 color palette to choose, white, iron red, pseudo color. QIR50T is a pinpoint-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor. QIR50T supports PWM control, S.BUS contral and serial command control, suitable for close range remote control or remote data command control.
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
