UP600+ charger is specifically designed for Foxtech Diamond Series Semi-solid State Lipo Battery, like Diamond 6S 22000mAh, 30000mAh Semi-solid State Lipo Battery, to charger/storage ultra low voltage battery. When the battery voltage is between 2.8v-3.2v, the charge current is 1A to protect battery and extend battery life.

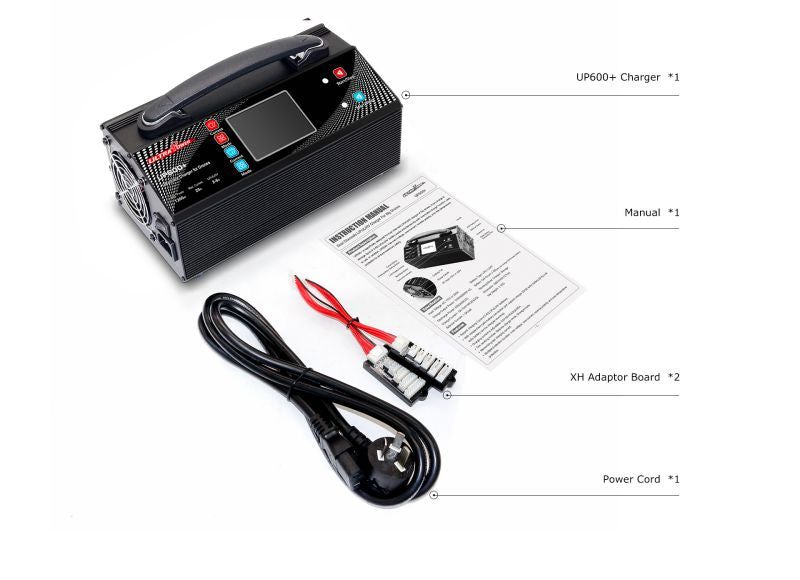

Your Purchase Includes:
1 x UP600+ Charger
1 x Power Cord
2 x Adaptor Board
1 x Manual

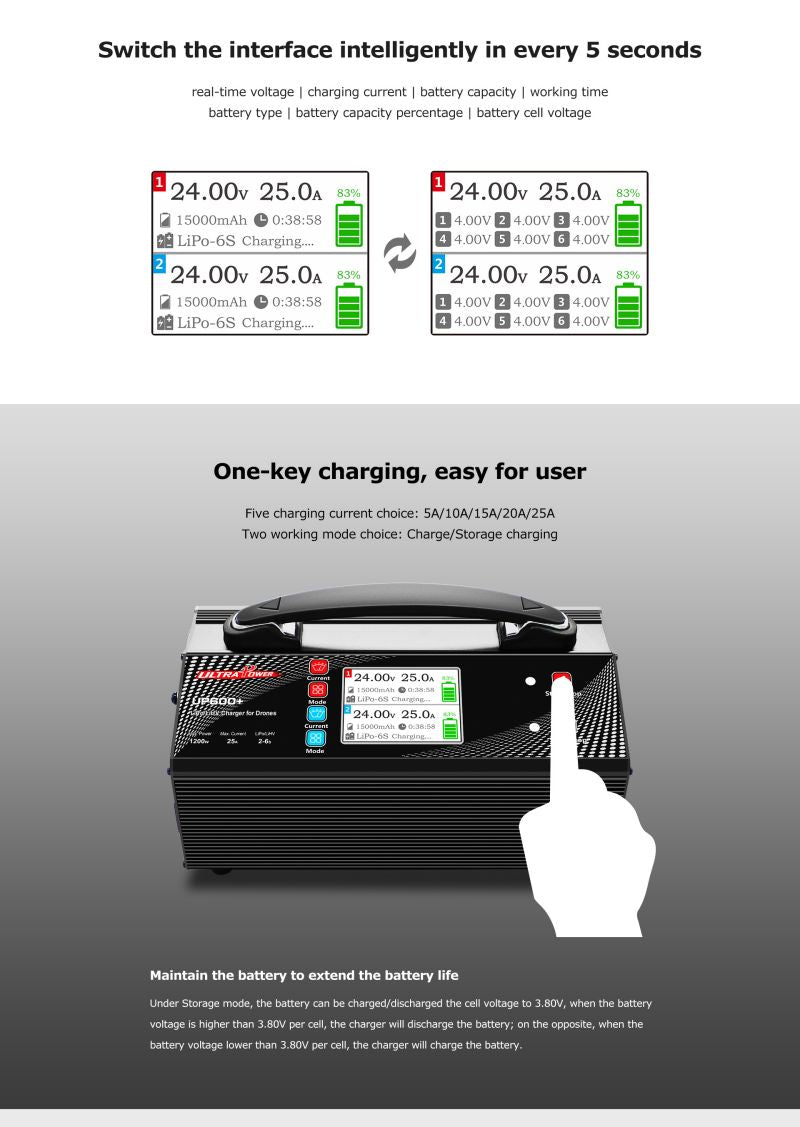

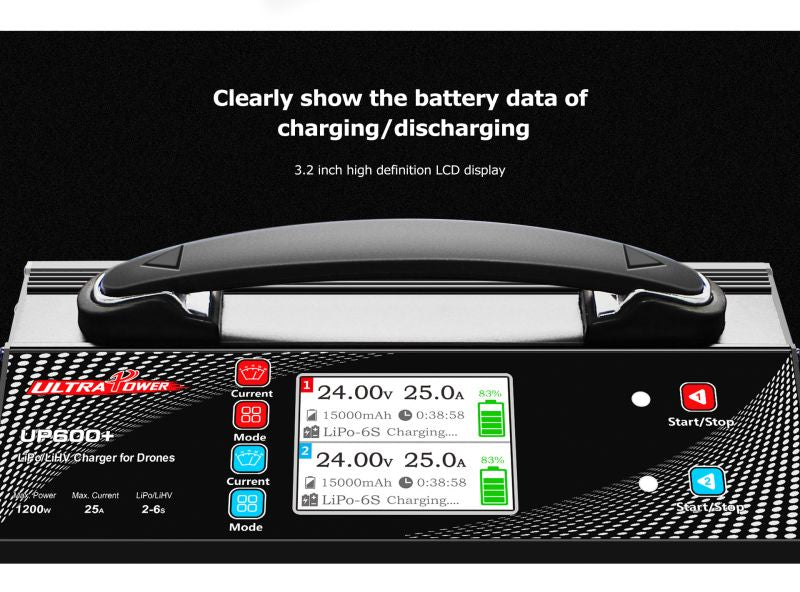

It is a dual channels charger, which can charge & storage 2pcs of 2-6S SemiSolid/LiPo Battery packs simultaneously. The charge current is adjustable from 5A/10A/15A/20A/25A. Besides, UP600+ has a 3.2 inch HD LCD display to clearly show charging/discharging data.
Features:
1.Support charging 2 pcs of 2-6S SemiSolid/LiPo batteries

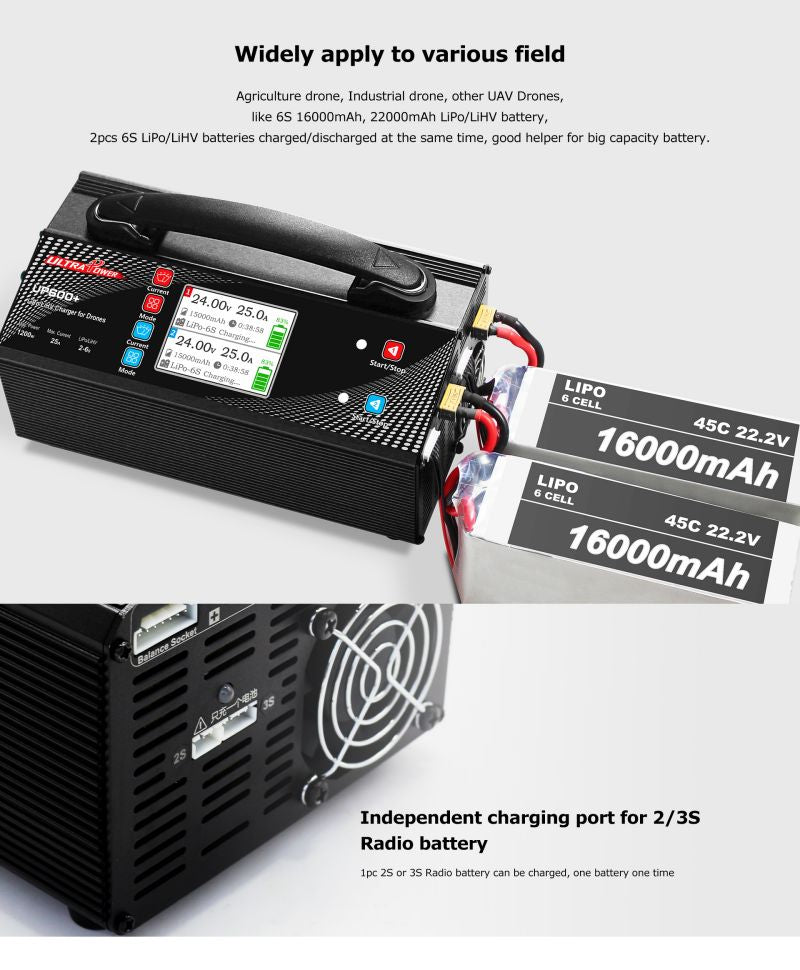

2. With independent radio battery connection port, support charge 2S/3S radio battery.(Only one radio battery can be charged one time)
3. Charging current is adjustable: 5A/10A/15A/20A/25A
4. Two working modes: Balance charge mode, Storage mode
5. Memorizing last charging current
6. Multiple protection function: over-voltage, over-current, reverse polarity, and over-temperature protection

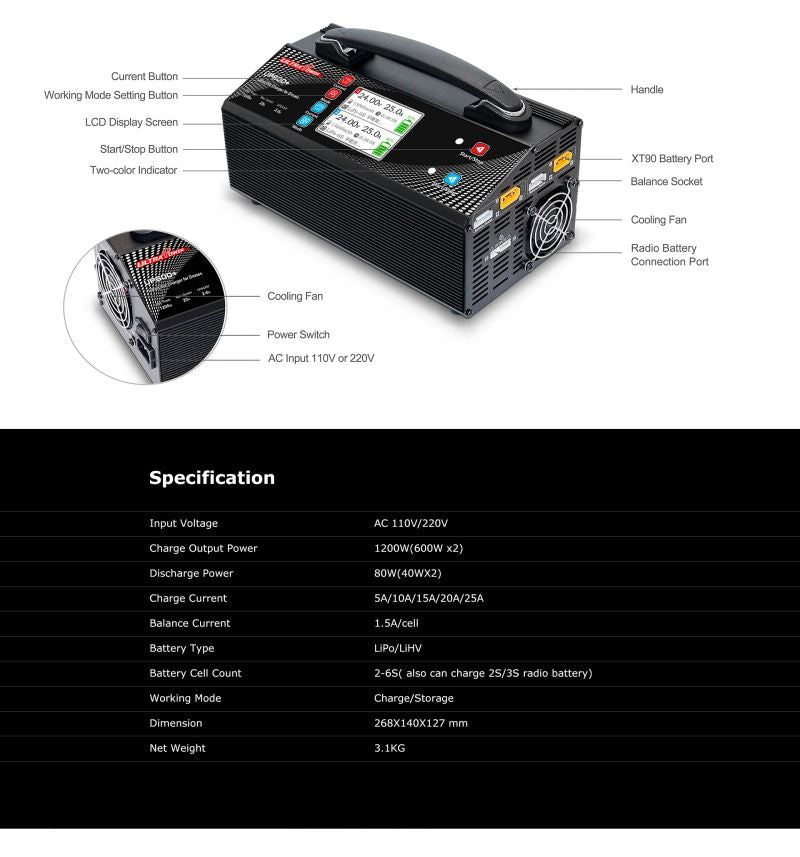

Specifications:
Input voltage: AC 110V/220V
Charge current: 5A/10A/15A/20A/25A
Charge power: 1200W (600Wx2)
Discharge power: 80W (40Wx2)
Balance current: 1.5A/cell
Battery type: SemiSolid/LiPo
Support battery types: 2-6 S
Charging mode: balance charging mode / storage mode
Dimensions: 268x140x127mm
Weight: 3.1KG
