S550 F550 500 Upgrade Hexacopter Frame Kit with Unflodable Landing Gear for FPV DIY Multirotor FPV Drone

The rack adopts an upward inclination design similar to the S800 rack, and the machine arm adopts a reinforced machine arm with carbon rods, which is upgraded in quality

1. The four force arms are made of Nylon + glass fiber (strong hardness and explosion resistance!)

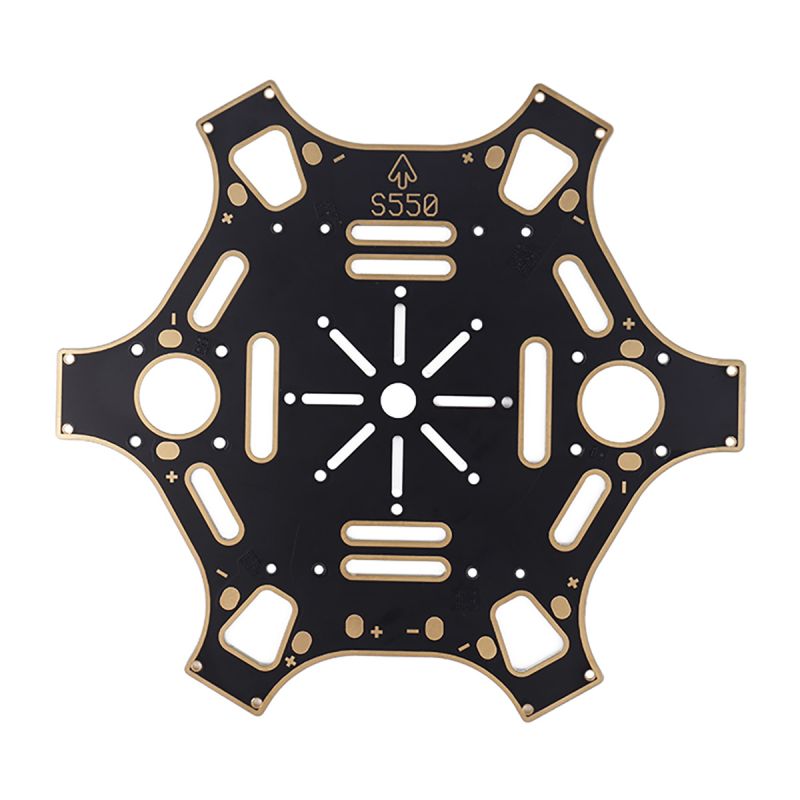

2. The integrated PCB board is used for wiring, and the high-strength titanium alloy PCB circuit board is equipped to make the wiring of power supply and electric regulation faster and safer.

3. With pan tilt hanger, the boom adopts inward tilt and roll design, which can make the aircraft more stable in the pitch direction of roll and more flexible in rotation.

4. The new design sinks the motor installation position and raises the PCB position, making the center of gravity of the new four-axis aircraft lower and more stable.

5. Six axis 550 wheelbase frame, suitable for carrying GoPro hero3 PTZ, entertainment aerial photography and exercise machine.

6. Optimize the design of large installation space to provide sufficient installation space for various flight control systems.

7. Adopt non-standard m2 5 socket head cap screws can firmly link the PCB board with the force arm.

Product parameters:
Wheelbase: 555mm
Body weight: 642g
Takeoff weight: 800 ~ 2500g
Packing box size: 223 * 287 * 48mm
Package weight: 795g
Recommended electronic equipment (purchased separately)
Motor: 2212-3108 kv720-900kv
Electric regulation: 30A Brushless
Recommended battery: 11.1v-14.8v 2200-5200mah
Propeller: 9443-1047 inches
