Q30TIR lite-lighter EO/IR 30x optical zoom payload thermal sensor Q30TIR lite rc uav camera gimbal for surveillance and inspection-Freeshipping

Stabilized the Q30TIR lite is a highly optimized 3-axis gimbal payload with pinpoint-precise motor rotation with a control

accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings - as is common with many gimbals - the Q30TIR lite uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.

Lighter SONY 30x Zoom Starlight Camera
Powered by SONY 1/2.8 Exmor R CMOS module, with 0.01lux@F1.6 starlight level min illumination, Q30TIR lite can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p FHD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 3000 meters, which can meet the application requirements of various domains.

Advanced IR Thermal Imager
Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) thermal image sensor, Q30TIR lite can record and transmit thermal image and visible images at the same time in PIP format. With temperature measuring sensor, it could accurately attain the temperature of objects and individuals. The thermal sensor allows three points’ temperature ranging between -30℃~300℃ to be measured and displayed on screen. Adjust the different colors applied to the thermal data based on the needs of specific scenarios.

Visible Light and Thermal Imager Dual Sensors Object Tracking
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

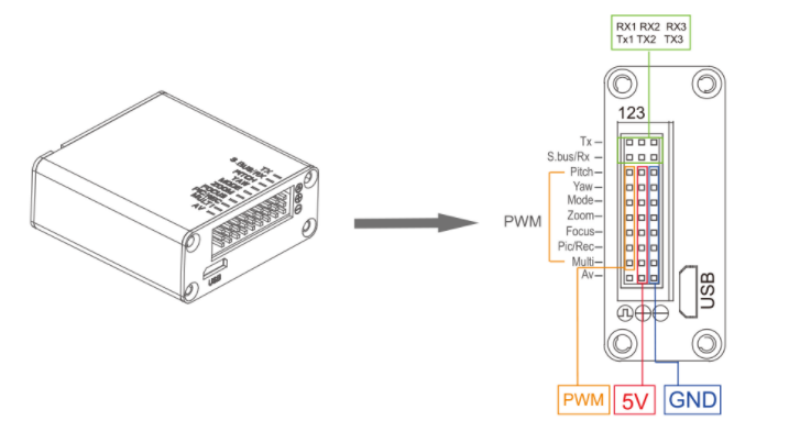

Control box signal interfaces
