IRON MAN 650 Foldable Quad-copter Frame (plastic landing skid)TL65B02

Tarot 650 Carbon Fiber Frame Kit × 1 set

· TORAY 3K carbon fiber plate and 3K hollow pure carbon fiber tube (not 3K glassy carbon tube), CNC processed.

· Whole set is only 485g

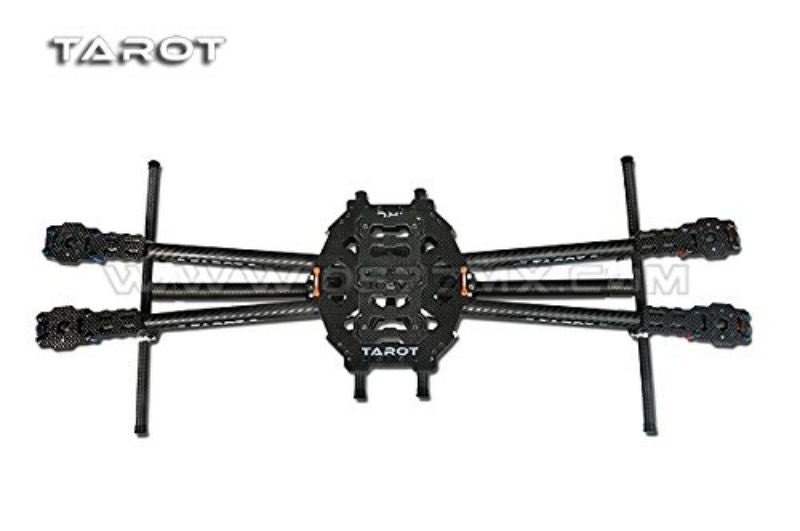

· Foldable design, which is for customers has high portability

· Camera gimbal shall be hanged on the front, which is slidable. The battery position is also adjustable; users can adjust the C.G. based on the photography equipments.

· Especially for monitor, remote sensing, survey and mapping, aerial investigation, fire observation, life exploration, cable patrol,

and farm monitoring applications which has moving objects but no heavy loading

Recommended configuration: gopro configuration

· 180-250W motor+20A ESC+4S 5000 battery+10-12 inches propeller

General configuration: EVIL/SLR-LIKE configuration

· 300-400W motor+30A ESC+4S 5000-10000 battery+12-14 inches propeller

Could be ok but not recommended configuration: DSLR configuration

· 400W above motor+40A ESC+6S 5000-10000 battery+14-17 inches propeller
