EH314 MINI 4K Zoom Camera with 3-axis Gimbal

$1,299.00 $1,599.00
local_offer Save $300.00
Unit price  per

Guaranteed safe & secure checkout

    Payment methods
  • PayPal
EH314 MINI 4K Zoom Camera with 3-axis Gimbal
local_offer

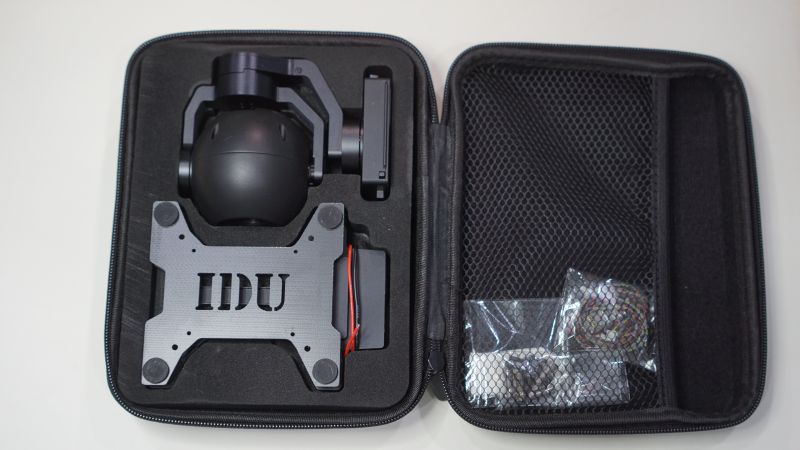

Your Purchase Includes:

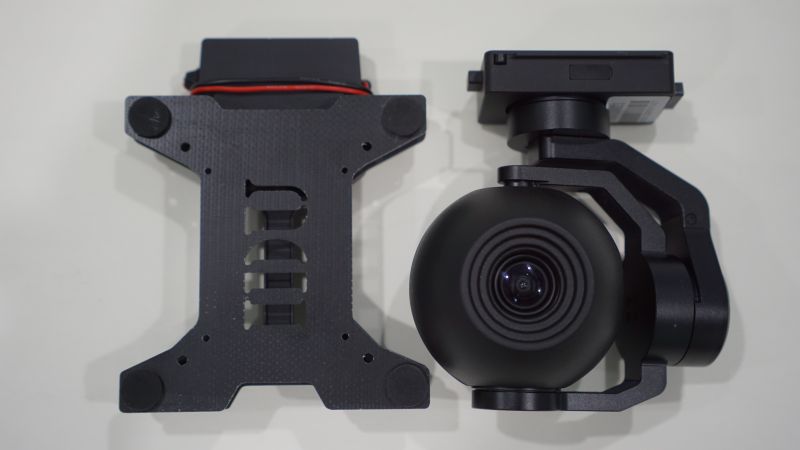

1x EH314 4K Zoom Camera with 3-axis Gimbal
1x OSD Module for EH314 4K Zoom Camera with 3-axis Gimbal
1x Gateway Damping plate
1x Network Cable

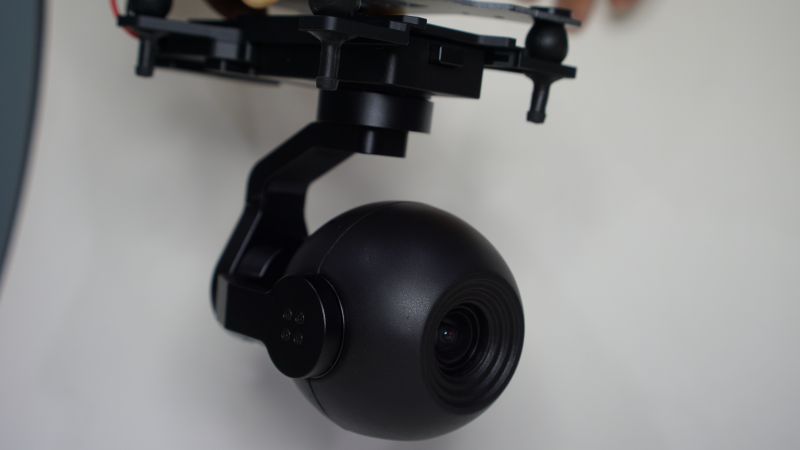

EH314 is a 4K HD camera with 3-axis gimbal, uses 1/2.3 CMOS sensor, has 12 megapixels, with 3.5x optical zoom lens and supports 4X digital zoom, supports 4K video recording, EH314 supports Max.128G SD card.

EH314 features small size, compact structure and light weight. So it can be mounted on most drones. EH314 features high stability, camera vibration accuracy is within 0.008°. The high-precision 3-axis gimbal also has a target tracking function. It also supports finger touch zoom function, so you can double-click the target to zoom. Besides, it supports recording GPS information, the flight control GPS information can be written into a photo or video (must work with the provided fc or developed by customer, or with a special OSD module).

EH314 MINI 4K camera with 3.5x optical zoom and 3-axisfunction can be used in inspection, target tracking, surveillance and other fields.

Specification:
Working Voltage: 12V-25V
Power: 6W
Weight: gimbal 275g, gateway damping plate 100g
Size: 99x79x140mm
Interface Type: Ethernet port
Display and control method: Windows PC or Android cellphone, tablet
Gimbal parameter:
Mounting Type: detachable
Range of control angle: pitch: +70° to -110°, yaw: ±300°
Structure design angle: pitch: +70° to -110°, yaw: ±300°, roll: +90°to ﹣50°
Max. Control Speed: pitch:120º/s; yaw 180º/s


Camera Parameter:
Sensor: CMOS:1/2.3″; total pixels 12.71 mega; max. Resolution 4152*3062
Lens: 3.5x optical zoom lens F 3.85~13.4mm
Image storage format: JPEG
Video storage format: MP4
Working mode: REC;PIC
Exposure mode: Auto/manually
Video output resolution: 1080P 50fps, 1080P 25fps, 720P 25fps
Minimum illumination: color:0.5Lux/F2.4
Electronic shutter: 1/3~1/30000 s
Digital zoom: 4X
Support memory card type: Micro SD card(Max. 128G)
Information video overlay(OSD): support
