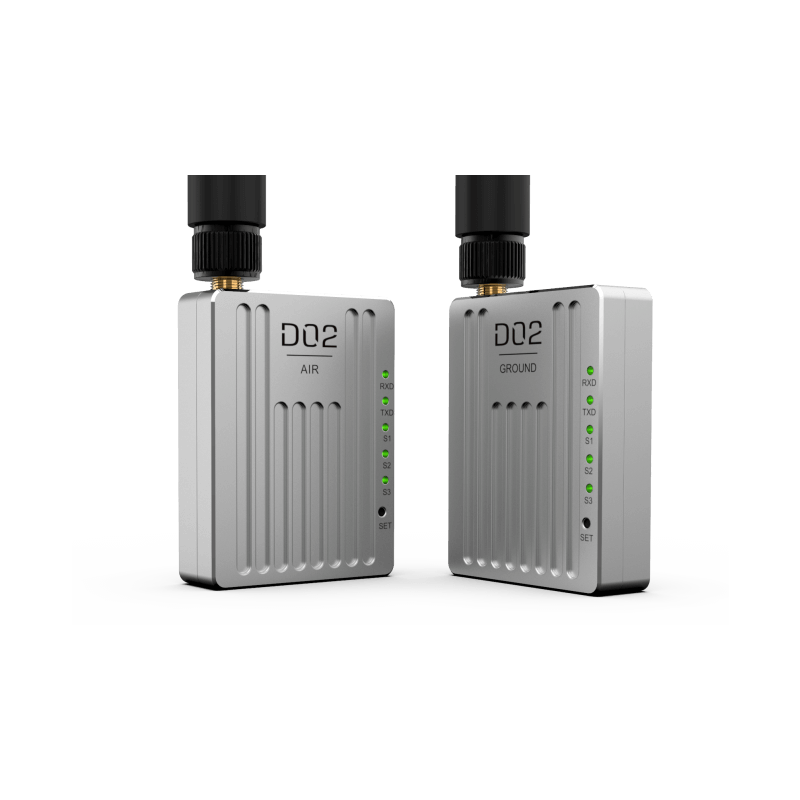

D02 Data Link
- Dual USB ports and TTL/RS232 ports
- Parameters setting software

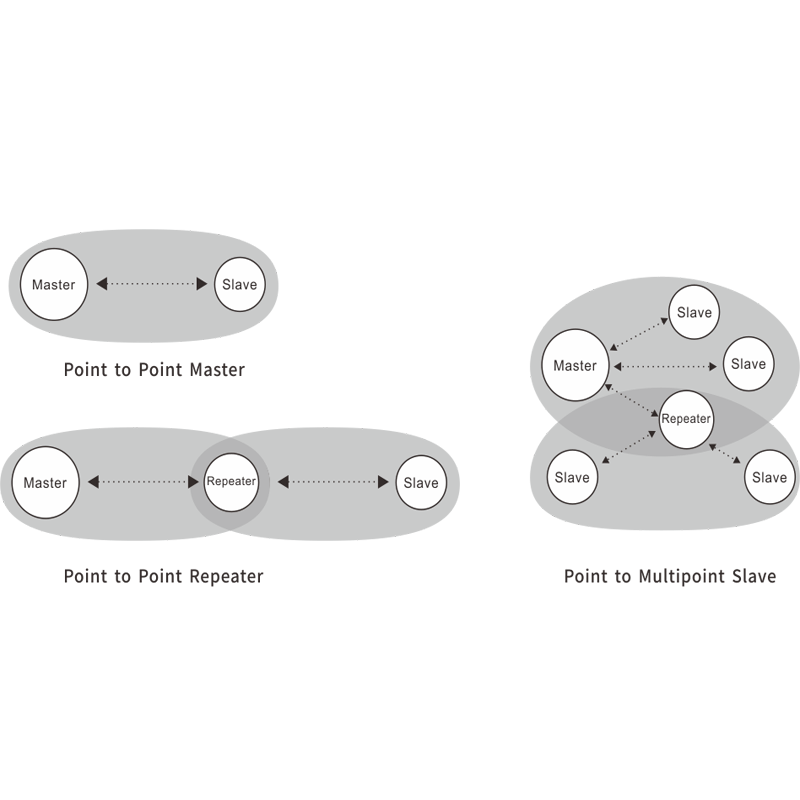

- Point to point, relay, point to multipoint
- 30km transmission range
- High speed frequency hopping
- P900 module

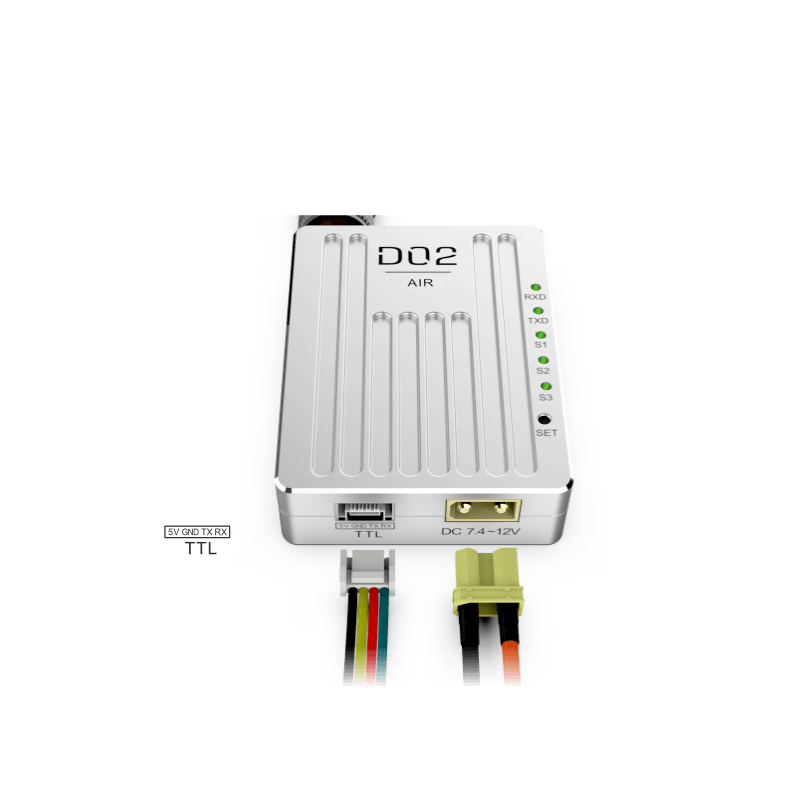

Airborne unit: TTL port or RS232

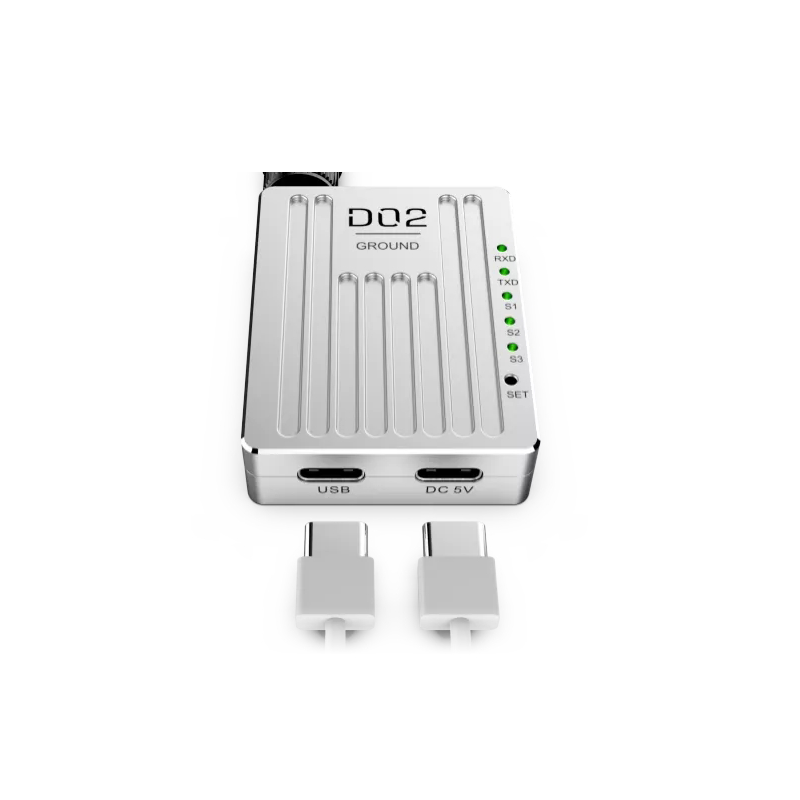

- Dual TPYE C ports
- Power-supply with USB 3.0 port for full power output
- 2 ports are available for power-supply when power is insufficient

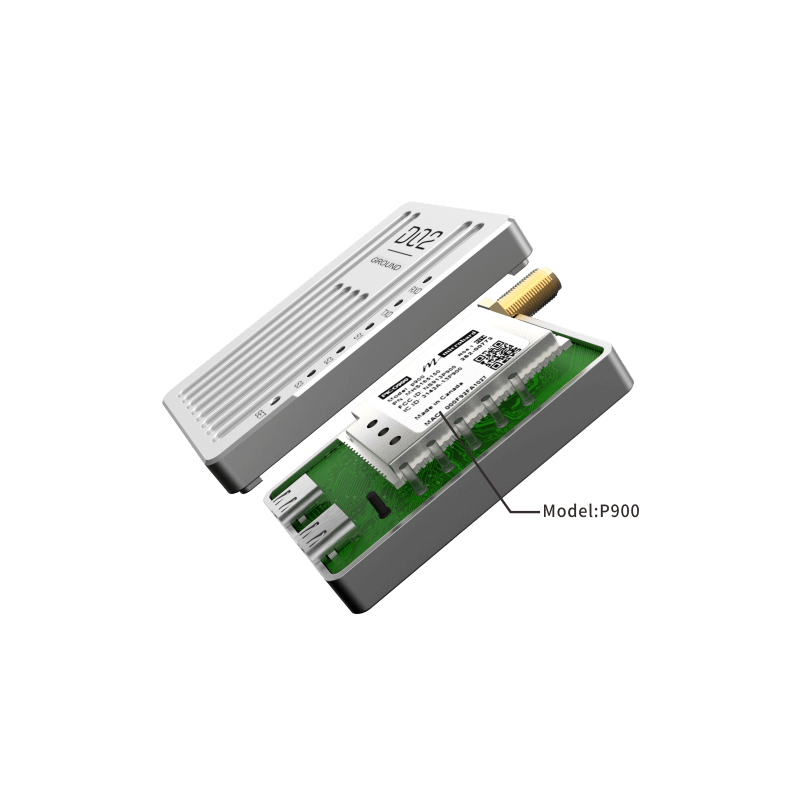

Bulit-in P900 module
30km transmission range

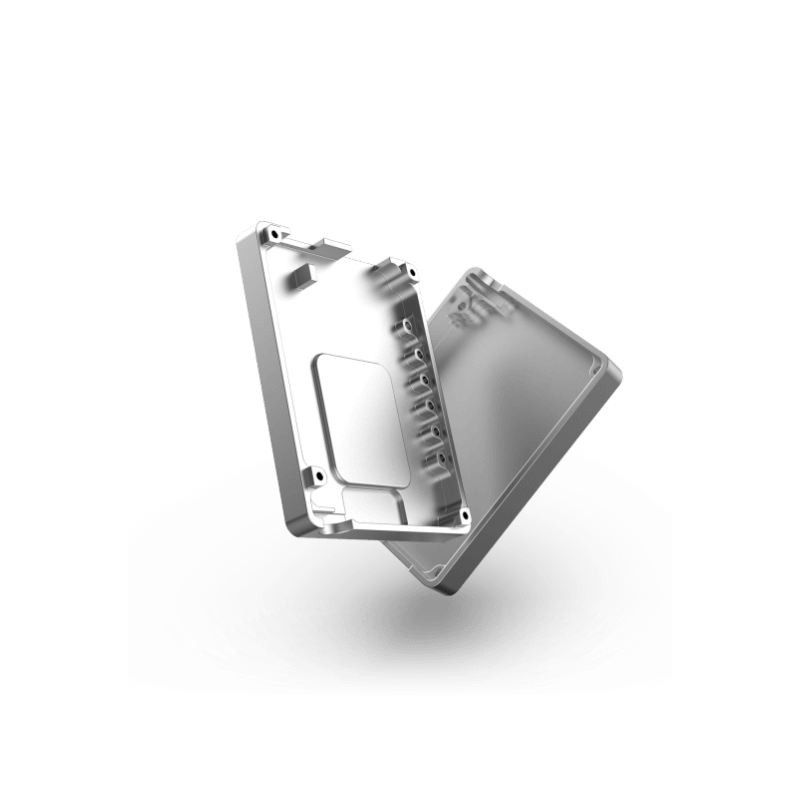

Aeronautical aluminum alloy housing
Weight only 40g

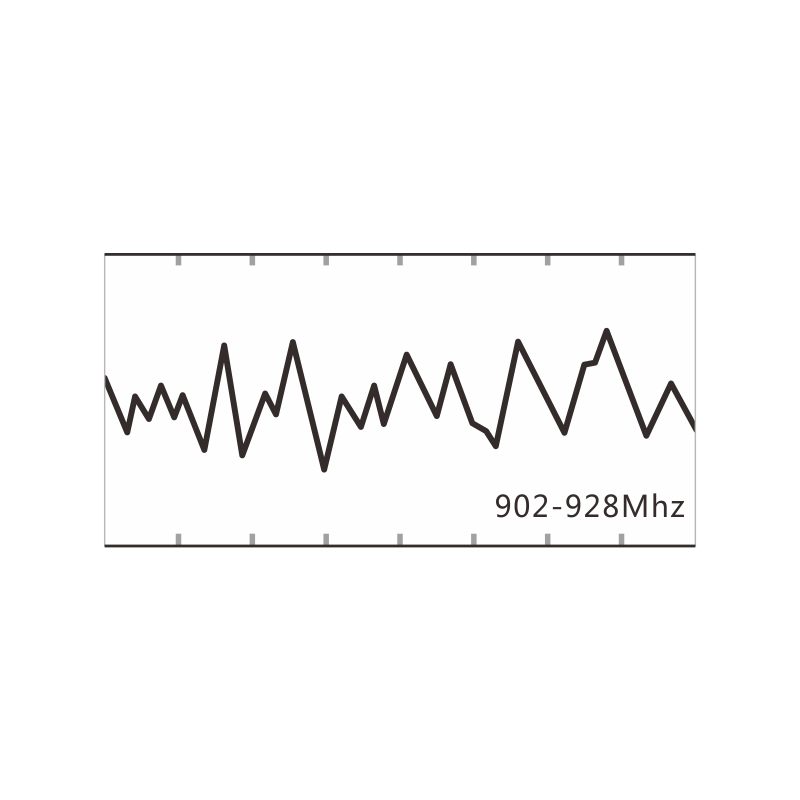

Support high speed frequency hopping

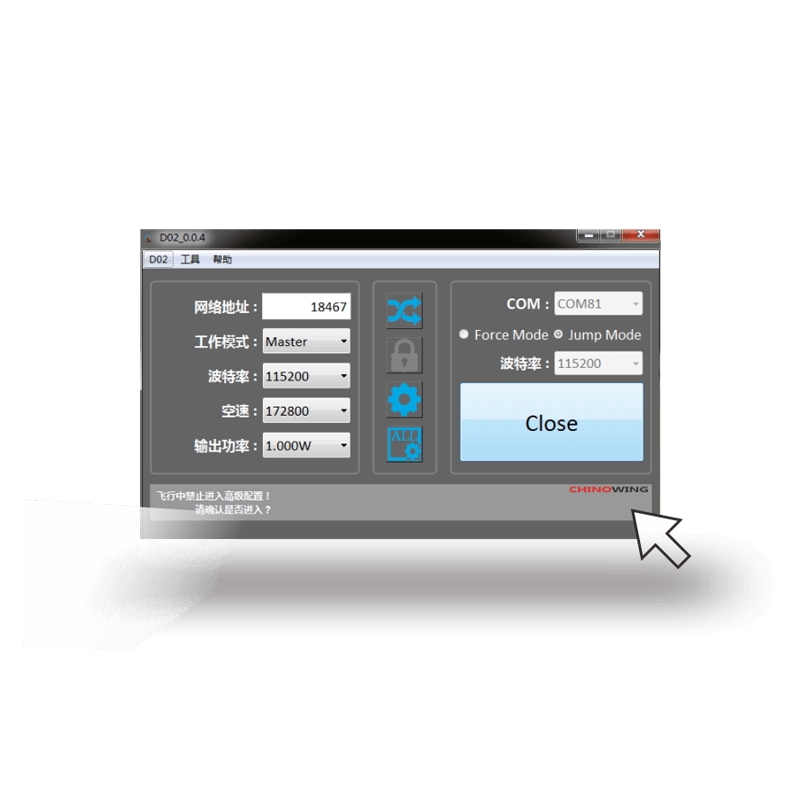

Universal parameters setting software
Visual operation, simple and easy
|
Item |
Parameters |
|
Frequency |
902-928MHz |
|
Modulation |
Frequency hopping |
|
Forwarding error detection |
Hamming/BCH/Golay/Reed-Solomon |
|
Error Detection |
Error detection 32 bits of CRC, ARQ |
|
Encryption |
Optional(AES128/256) |
|
Output power |
100mW~1w(20-30dBm) |
|
Transmission range |
30km grade |
|
Serial port |
3.3v CMOS TTL(RS232 optional) |
|
Transmission protocol |
Transparent transmission |
|
Baud rate |
9600bps~230400bps(adjustable) |
|
Wireless Link Rate |
276kbps max |
|
Power supply voltage |
Ground unit: 5.0v; airborne unit: 7.4v~24v |
|
Antenna interface |
SMA |
|
Data interface |
GH1.25-4P&USB Type-c |
|
Dimension |
62mm(L)*40mm(W)*13mm(H) |
|
Weight |
40g(exclude antennas) |
|
Operating temperature |
-55℃~+85℃ |
