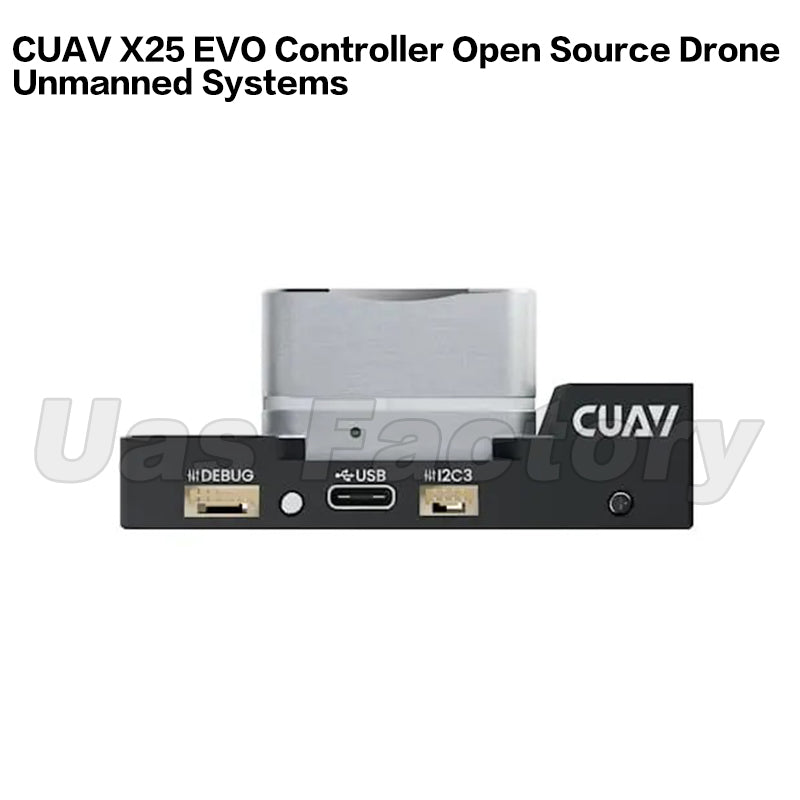

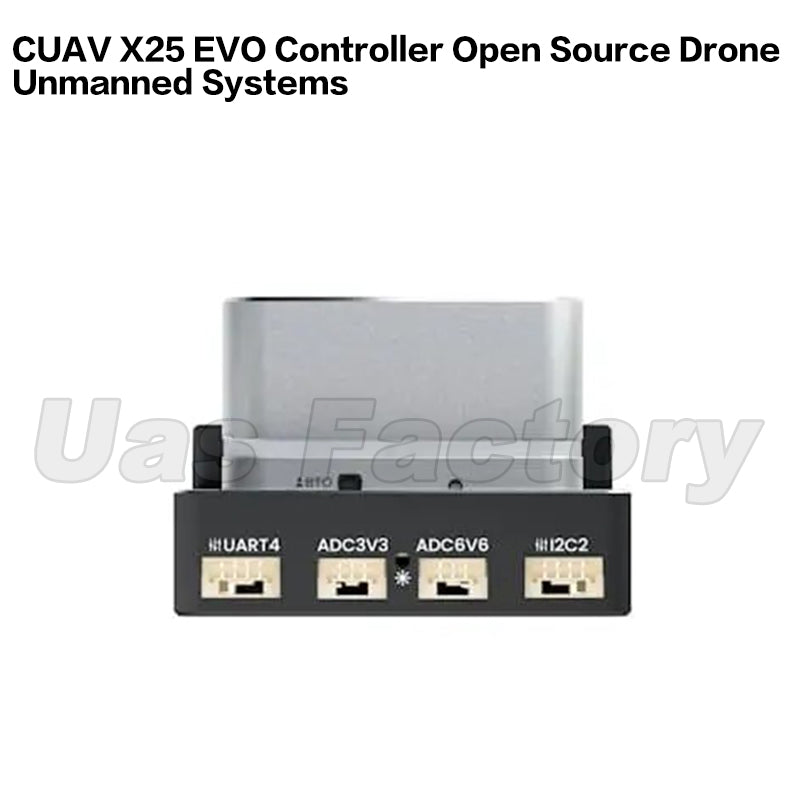

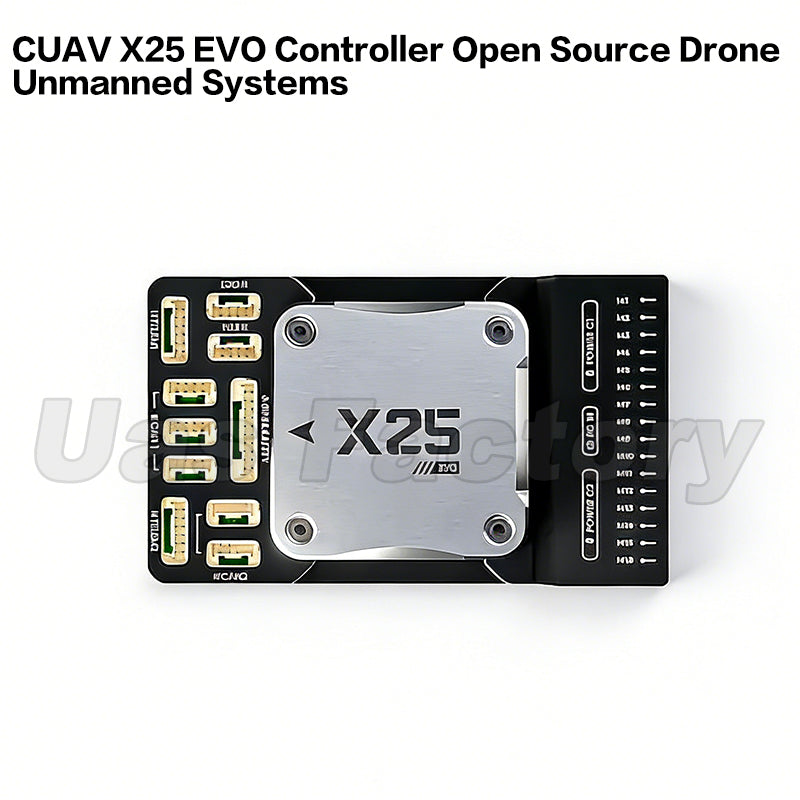

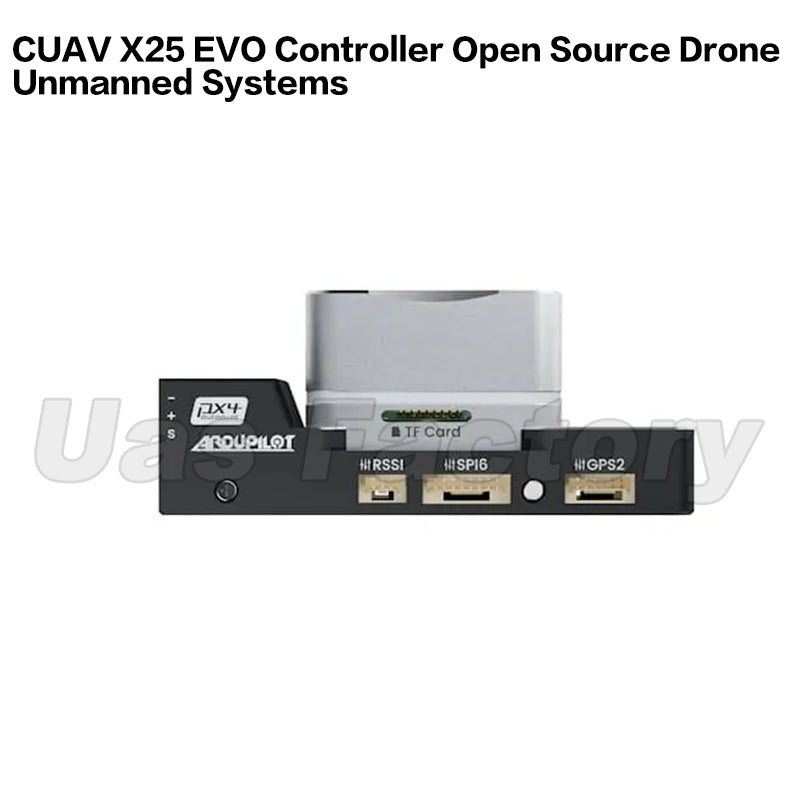

CUAV X25 EVO Flight Controller for UAV / Drone
High-Performance Open Source Autopilot | Wide Voltage | Industrial-Grade Sensors
The CUAV X25 EVO Flight Controller is a next-generation open-source UAV controller designed for professional drone and unmanned systems. Built with a powerful STM32H7 processor and advanced sensor architecture, it delivers unmatched performance, reliability, and scalability for industrial and commercial drone applications.
⚡ Wide Voltage Power System (10V–18V)
Designed for high-efficiency power delivery in demanding environments:
Supports 10V–18V wide voltage input
Built-in 5V / 15A high-power DC-DC converter
External output up to 12A, ideal for heavy payload devices
✅ Compared to standard flight controllers (typically 5V / 1.5A), X25 EVO provides significantly higher output capacity for professional UAV systems.
🧠 High-Performance STM32H7 Processor
Advanced H7 processor for powerful onboard computing
Lower CPU usage for more stable operation
Supports ArduPilot & PX4 autopilot systems
Compatible with:
Non-GPS navigation
FFT filtering
LUA scripting
IMU temperature calibration
🎯 Industrial-Grade IMU Sensor Matrix
Engineered for precision and safety in complex environments:
Triple TDK industrial IMUs
Dual barometers + RM3100 anti-interference magnetometer
Failover redundancy for enhanced flight safety
✔ High-precision external clock reduces sensor error and improves synchronization.
🌡️ Dual Temperature Compensation System
Maintain stable performance in extreme environments:
Real-time temperature compensation (±0.5°C accuracy)
Reduces temperature drift by 15%
Improves attitude stability by 25%
🛡️ Dual Shock Absorption System
Patented 4th-generation damping system
Optional external shock mount
Reduces vibration interference
Improves sensor accuracy and flight stability
🌐 CAN Bus + 100M Ethernet Connectivity
Enable full system integration and real-time communication:
CAN Bus for smart battery, ESC, motor data monitoring
Built-in 100M Ethernet port
Ideal for:
AI drone applications
Swarm UAV operations
Visual navigation & tracking
🔌 High Power & Expansion Capability
Up to 16 PWM outputs (Servo)
Up to 32 PWM outputs (CAN)
Supports 3.3V / 5V PWM switching
Eliminates signal loss over long cables
🔋 Advanced Power Monitoring (PMU Support)
Standard PMU 2 Lite (70V / 220A)
Optional PMU 2S (140V / 500A)
Ideal for large UAV / heavy-lift drone platforms
🌈 RGB Status Indicator System
Full-color LED status display
Real-time feedback:
Flight mode
Battery level
GPS status
System errors
✔ Easy diagnostics and faster troubleshooting
🚀 Applications
Perfect for:
Industrial UAV systems
Long-range drones
Heavy-lift drones
Mapping & surveying UAV
AI-powered drone platforms
Products include:
X25 EVO*1
CAN PMU2 Lite15V Module *1
CAN Extension board *1
CAN Cable *2
Type-C Cable *1
TELEM Cable *2
RSSI Cable *1
RC IN Cable *1
CAN PMU 2 Lite15V Controller Power Cable *1
GPS2->GPS Cable *1
UART 4 Cable *1
Ethernet Cable *1
ADC 3.3 Cable *1
ADC 6.6 Cable *1
TF Memory card *1
Flat Head Hex Socket Screw *4
Socket Head Cap Screw *4
Shaped Silicone Mounting Lug *4
