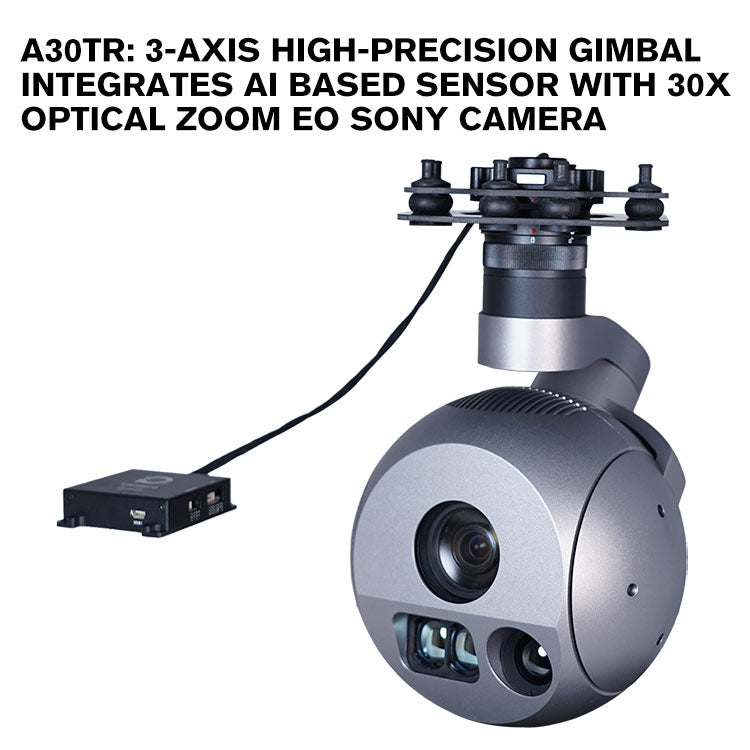

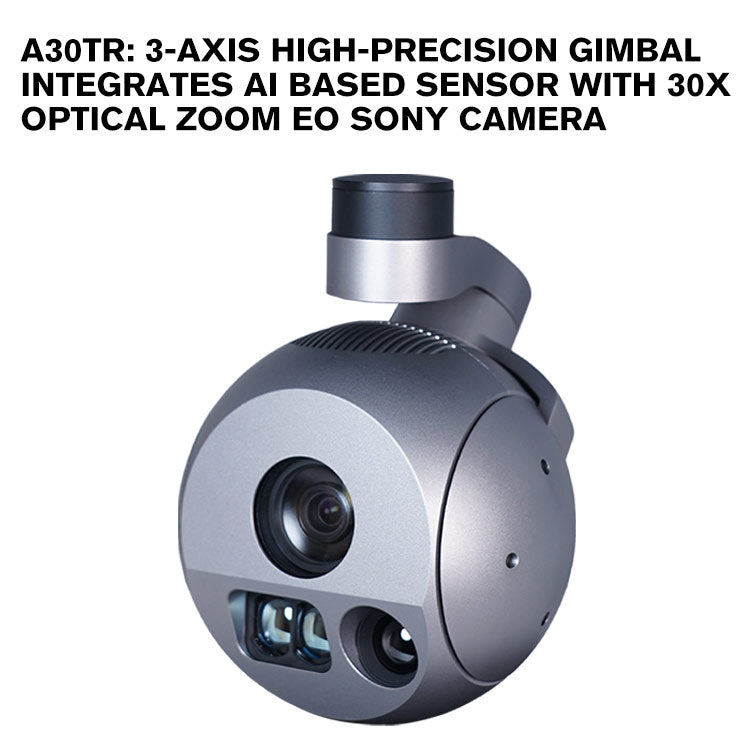

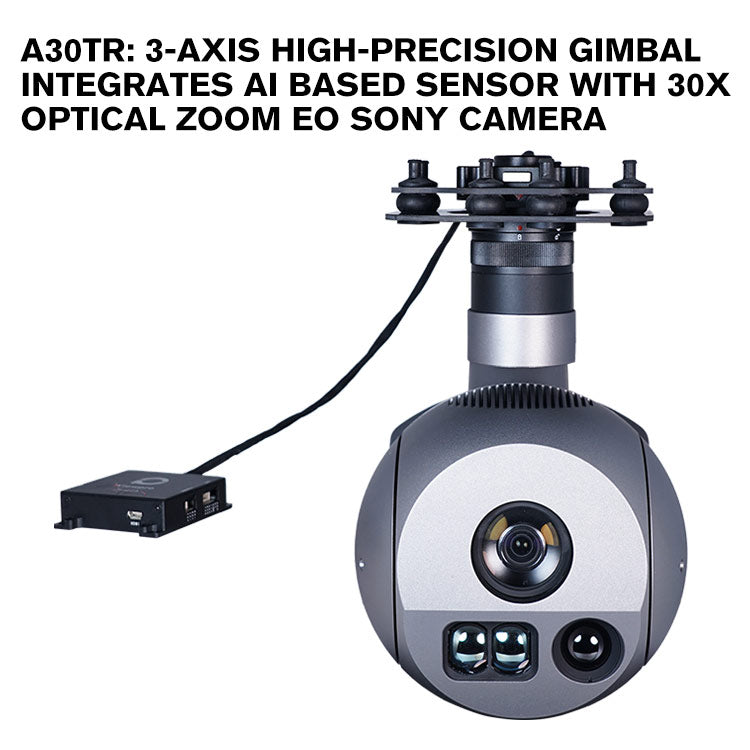

Viewpro New Era AI Camera A30TR Versatile Hybrid Payload
Product SKU:
Available:
Only 100 items in stock
100 items in stock
In stock
Pre-order
Out of stock
$13,499.00
Want it delivered by
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ～ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 1000～1300mA @ 12V |
| Idle current | 1000mA @ 12V |
| Working environment temp. | -20℃ ～ +60℃ |
| Output | micro HDMI(1080P 30/60fps) / IP (1080p/720p 30/60fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Photo storage format | JPG(1920*1080) |
| Video storage format | MP4 (1080P 30fps/60fps) |
| Control method | PWM / TTL / S.BUS / TCP(IP output) |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -60°～150°,Roll: ±45°, Yaw/Pan: ±300°/ ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera spec | |
| Imager Sensor | SONY 1/2.8" "Exmor R" CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3～129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7°(wide end)～2.3°(tele end) |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color 0.01lux@F1.6 |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain |
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance |
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| IR Thermal Imager Spec | |
| Focus Length | 19mm |
| Coating Film | DLC |
| Horizontal FOV | 22.9° |
| Vertical FOV | 18.4° |
| Diagonal FOV | 29.0° |
| Detective Distance (Man: 1.8x0.5m) | 792 meters |
| Recognize Distance (Man: 1.8x0.5m) | 198 meters |
| Verified Distance (Man: 1.8x0.5m) | 99 meters |
| Detective Distance (Car: 4.2x1.8m) | 2428 meters |
| Recognize Distance (Car: 4.2x1.8m) | 607 meters |
| Verified Distance (Car: 4.2x1.8m) | 303 meters |
| Working mode | Uncooled VOx long wave (8μm～14μm) thermal imager |
| Detector pixel | 640*512 |
| Pixel size | 12μm |
| Focusing method | Athermal prime lens |
| NETD | ≤50mK@F.0 @25℃ |
| Color palette | White, iron red, pseudo color |
| Digital zoom | 1x ～ 8x |
| Sync correct time | Yes |
| EO / IR Camera Object Tracking | |
| Update rate of deviation pixel | 30Hz |
| Output delay of deviation pixel | <30ms |
| Minimum object contrast | 5% |
| SNR | |
| Minimum object size | 16*16 pixel |
| Maximum object size | 256*256 pixel |
| Tracking speed | <32 pixel/frame |
| Object memory time | 100 frames |
| IR Laser Rangefinder | |
| Range | 5～1500 meters |
| Resolution | 0.5m |
| Working current: | 80mA （max） |
| Light Beam | 905nm pulse laser |
| Divergent Angle | 3 mrad |
| Laser pulse frequency | 1HZ |
| Power | ＜ 1 mW (safe for eye) |
| Ranging mode | Pulse |
| Location Resolving | Latitude and longitude of target |
| Ranefinder | Target distance measuring |
| EO Camera AI Recognition Performance | |
| Targets type | Car and human |
| Simultaneous detection quantity | ≥ 10 targets |
| Min contrast ratio | |
| Min target size | 5×5 pixel |
| Car detection rate | ≥85% |
| False alarm rate | ≤10% |
| Packing Information | |
| N.W. | 1198g (Viewport version) |
| Product meas. | 130*134.7*213.3mm (Standard version) /130*134.7*219mm (Viewport version) |
| Accessories |
1pc gimbal camera device, screws, copper cylinders, damping balls,1pc USB to TTL cable Hight quality plastic box with foam cushion |
