TBS CROSSFIRE 8CH DIVERSITY RX
Product SKU:
Available:
Only 100 items in stock
100 items in stock
In stock
Pre-order
Out of stock
$123.95
Want it delivered by
TRUE DIVERSITY, FULL RANGE

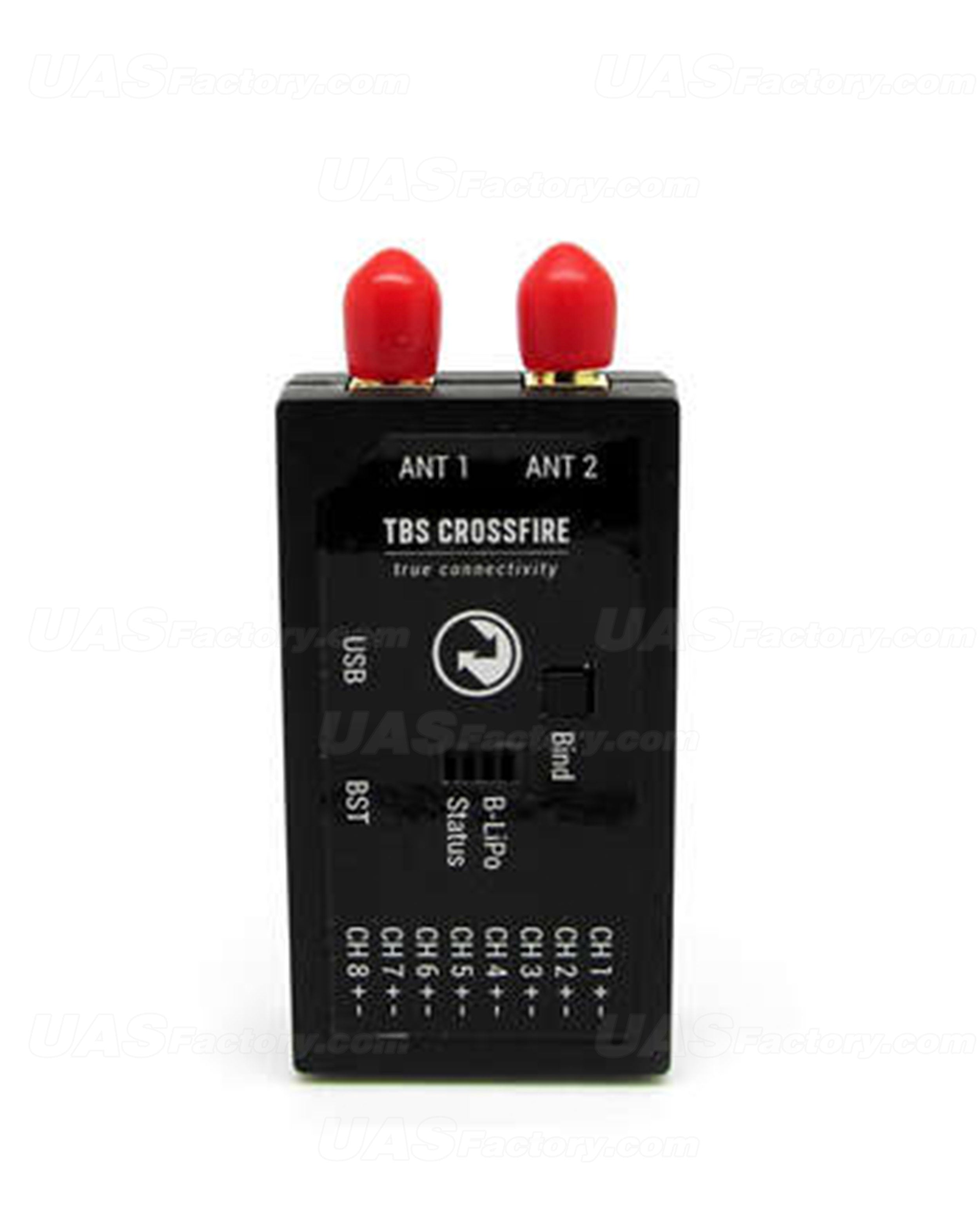

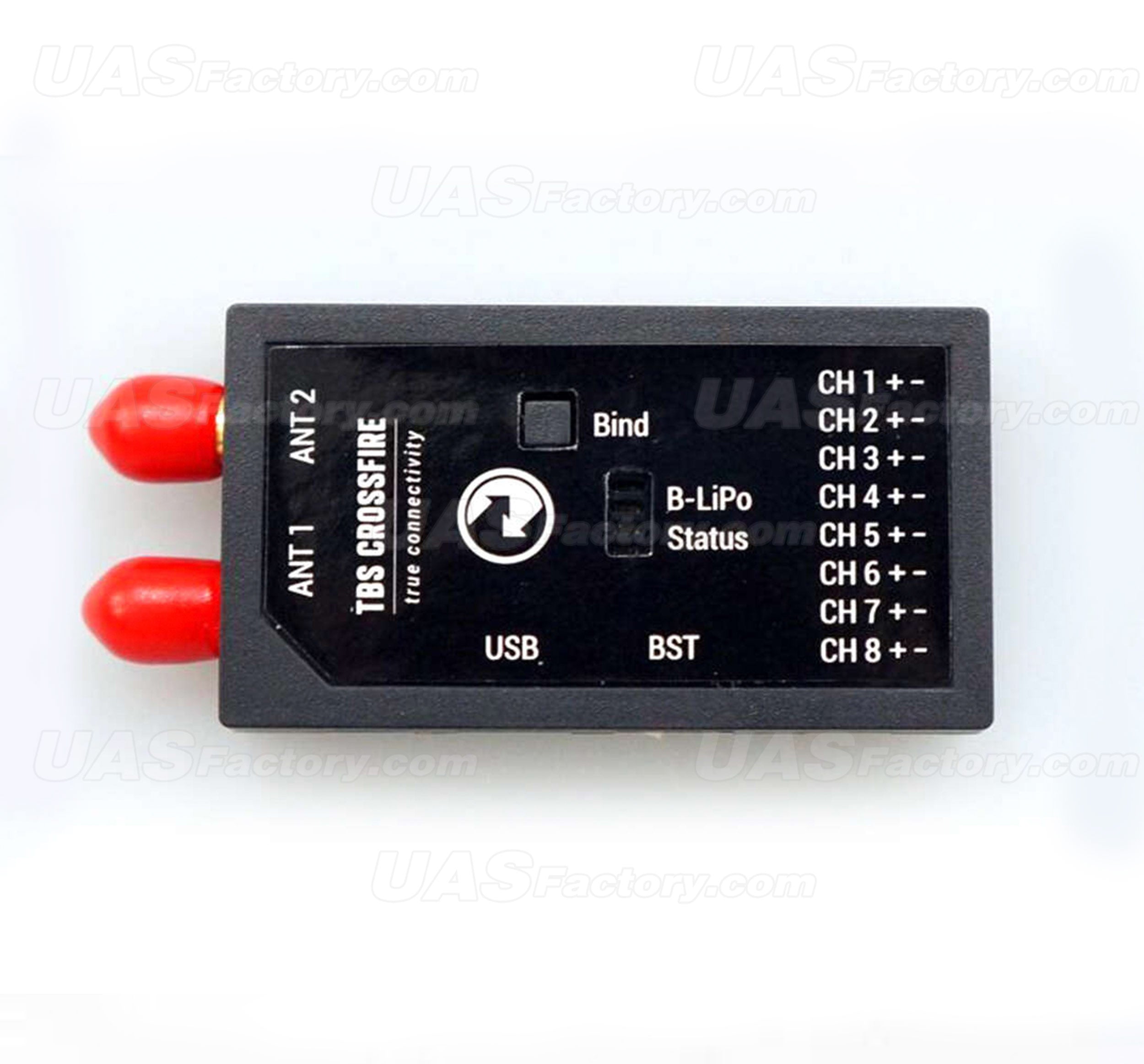

The TBS CROSSFIRE 8ch Diversity Receiver is a compact R/C receiver with 8ch PWM outputs (PPM, SBUS and CRSF capable), with best-in-industry noise-rejection and record-breaking range capability. It is the only receiver to provide true dual-input stage, chip based diversity, with the usual filtering and noise rejection from on-board video systems.
BEACON MODE
Ever lost a plane and spent hours looking for it? Enter the TBS CROSSFIRE beacon mode. The 8ch diversity receiver comes with a built-in LiPo battery that will keep the receiver running for a full day after all onboard electronics are gone. It will be screaming for help by giving you its GPS coordinates, and also blasting out RF beacon signals that will allow you to pinpoint its location even if no GPS was ever on your airplane.
BST, ANYONE?
BST, the BlackSheepTelemetry port, spreads the goodness of the TBS CROSSFIRE to any device that listens. For example, the TBS CORE PRO will display the RSSI and link quality info. Through CRSF the telemetry gets sent to the ground, where it can be captured by any bluetooth smart device. Software updates will get automatically spread across the entire ecosystem, through a single entry point (e.g. CORE PNP PRO). It's just user-friendly and safer that way! In case you're running out of BST ports we're including a BST port splitter free of charge!
FLARM IS HERE!
FLARM is a traffic awareness and collision avoidance technology for General Aviation, light aircraft, and UAVs. The TBS Crossfire Diversity RX's will be able to broadcast on the FLARM network for free, receiving drone and general aviation traffic information on your OSD requires additional licenses. Paired with the CORE PRO or FPVision and TBS GPS, you can get a virtual radar showing other FLARM devices around you (~3km range).
This allows safe navigation in crowded airspace, or nailbiting proximity formation flights with your buddies! Fullscale aviation will be alerted if your drone is on a collision course with them, and vice versa.
SPECIFICATIONS
| Weight | 25g |
| Size | 30 x 50 x 12mm |
| Input Power | +4.5V to 8.4V |
| Recovery mode: | Beacon-mode, receiver backup LiPo battery - operating time of approx. 2 days |
PACKAGE INCLUDES
- TBS Crossfire 8Ch Diversity Rx

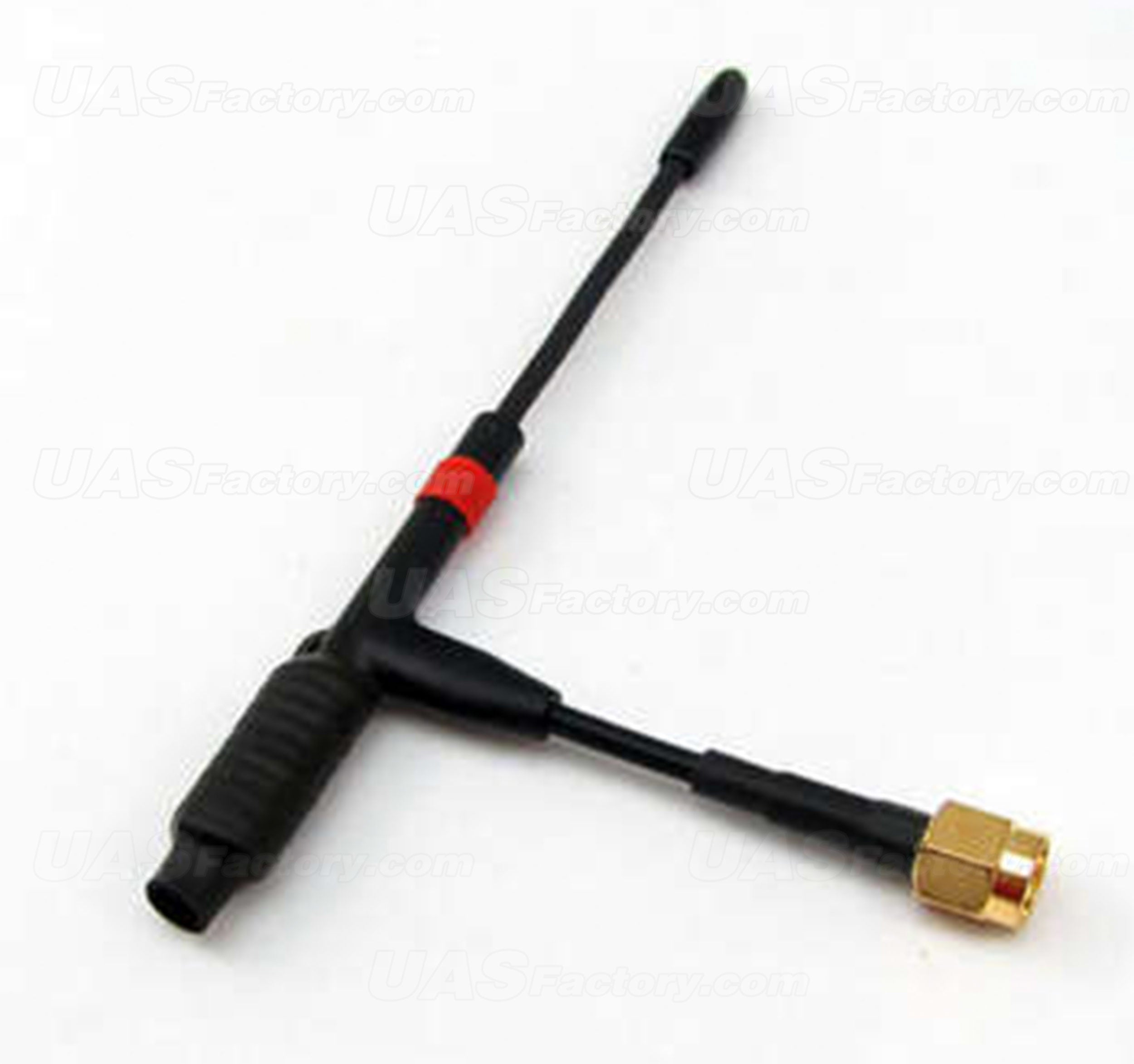

- TBS Crossfire Stock Rx Antenna(2pc)

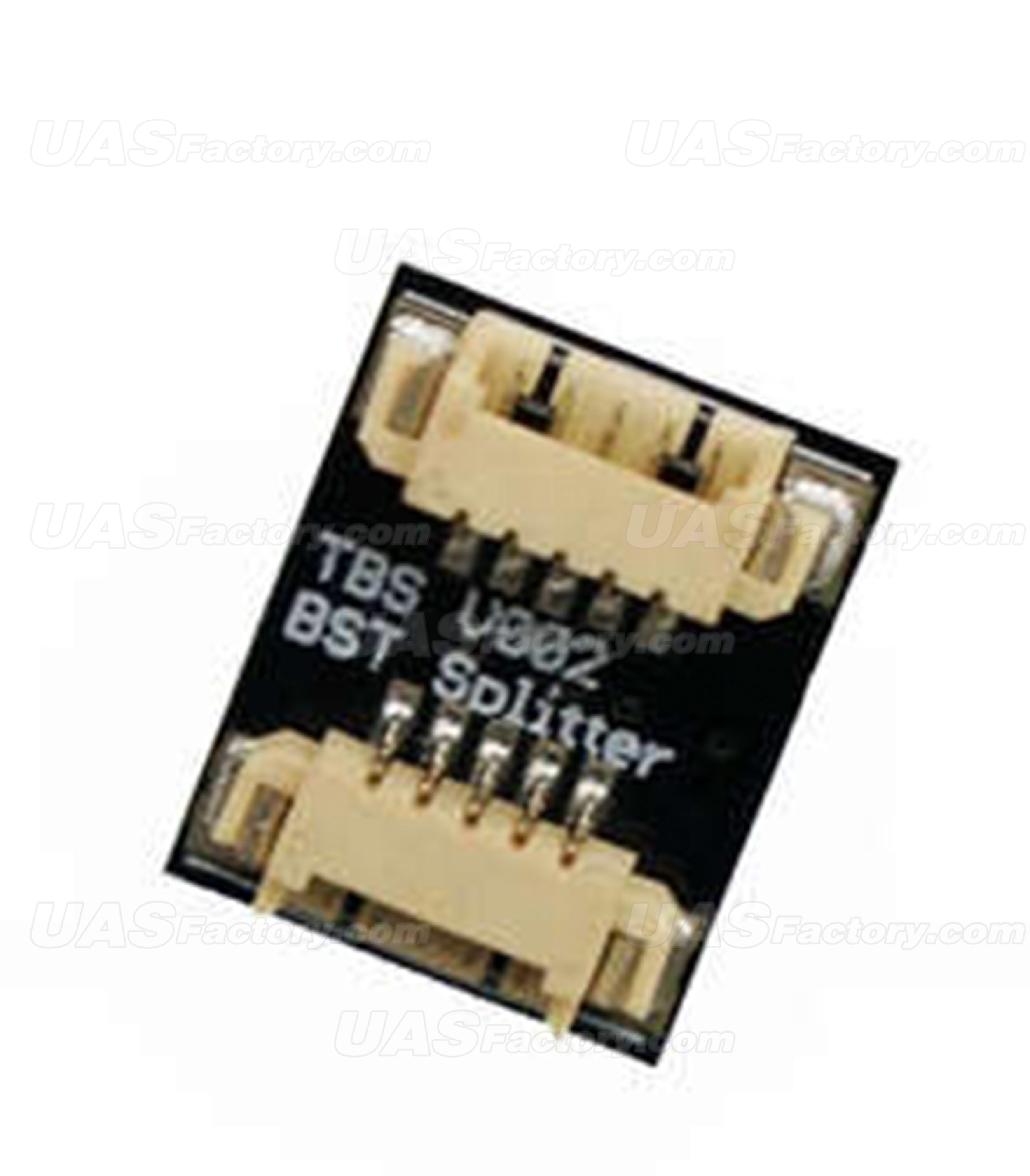

- BST splitter (one input to three output)
- BST cable(20cm)
