X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones
X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones
X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones
X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones
X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones
X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones
X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones
X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones
X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones
X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones
UAS Factory Co., LTD

X30TM 30x Optical Zoom Gimbal Camera with 2km Laser Rangefinder and GPS Location Resolving for DJI Matrice Drones

Product SKU:
Available:
Only 95 items in stock
95 items in stock
In stock
Pre-order
Out of stock
$6,599.00
Type
Resolution
Style
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Shipping & Returns

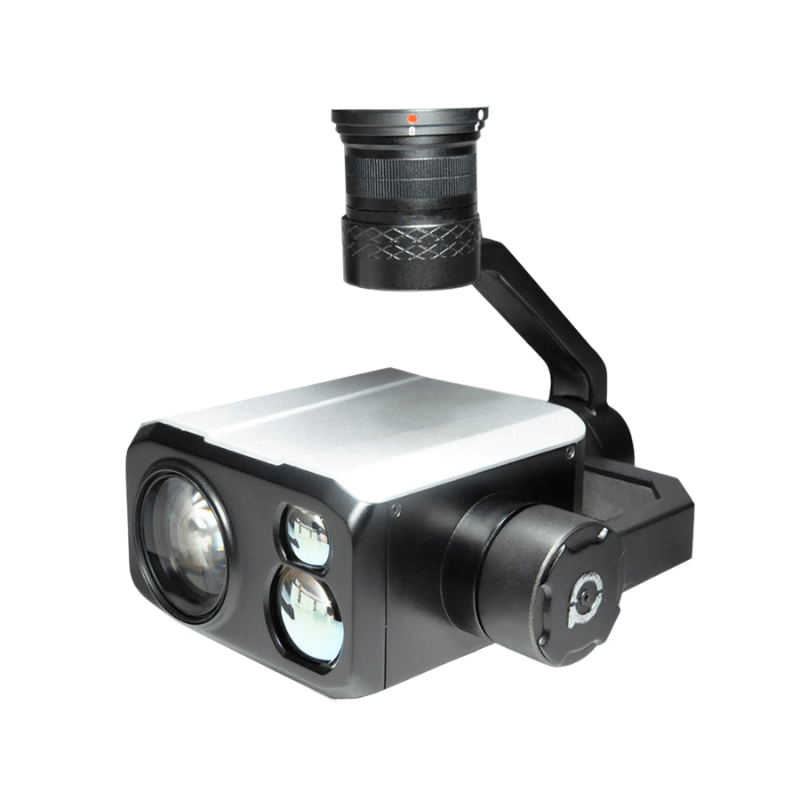

X30TM is a high-precision professional 3-axis gimbal which features high stability. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. It can be used on DJI drones M200 / M210 / M210RTK. Controlled by APP DJI PILOT it can meet many powerful functions, such as: photos or videos with 30 times optical zoom, object tracking, laser rangefinder. The speed of X30TM gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick. The one-key to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly.



Stabilizing the X30TM is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. 360°rotation remains possible through gimbal rotation. Stable, smooth footage image can be captured even when flying at high speed flight.



HARDWARE PARAMETER
Working Voltage
14V ~ 16V
Input Voltage
3S ~ 4S
Working Environment Temperature
-40℃ ~ +60℃
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control Method
DJI Pilot
GIMBAL SPECIFICATIONS
Pitch/ Tilt
±90°
Roll
±85°
Yaw/ Pan
±360°*N
Vibration Angle
Picth/Roll: ±0.02°, Yaw:±0.03°
One-key to Center
√
CAMERA SPECIFICATIONS
Imager Sensor
SONY 1/2.8-type Exmor R CMOS
Picture Quality
Full HD 1080 (1920*1080)
Lens Optical zoom
30x, F=4.3~129mm
Digital zoom
12x (360x with optical zoom)
Min illumination
Color 0.01lux[at]F1.6
CAMERA OBJECT TRACKING
Update Rate of Deviation Pixel
50Hz
Minimum Object Size
16*16 pixel
Maximum Object Size
160*160 pixel
Tracking Speed
±32 pixel/frame
Laser Rangefinder
Range
5~1500 meters
Resolution
0.5m
Working current:
80mA （max）
Light Beam
905nm pulse laser
Divergent Angle
3 mrad
Laser pulse frequency
1HZ
Power
＜ 1 mW (safe for eye)
Ranging mode
Pulse
Location Resolving
Latitude and longitude of target
Ranefinder
Target distance measuring
