UAS Factory Co., LTD

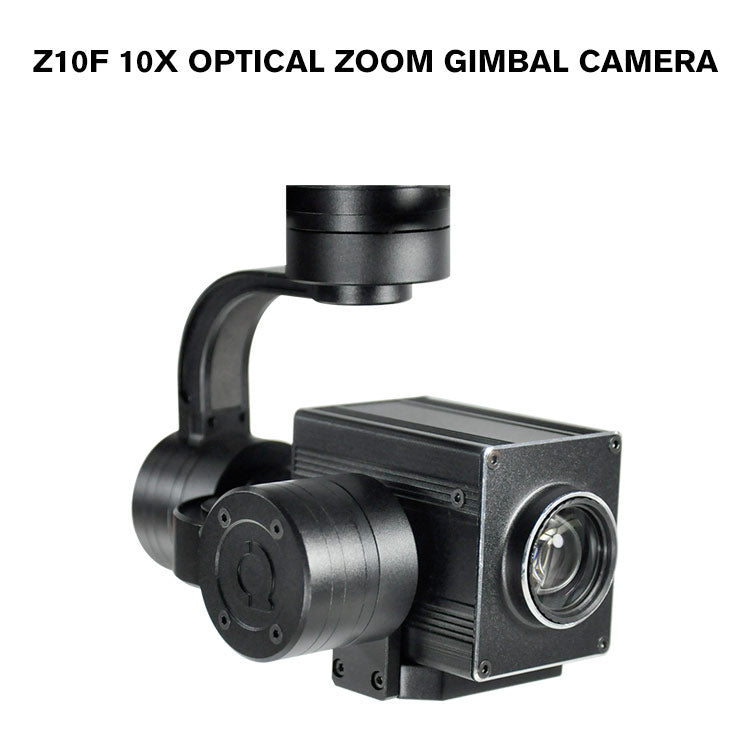

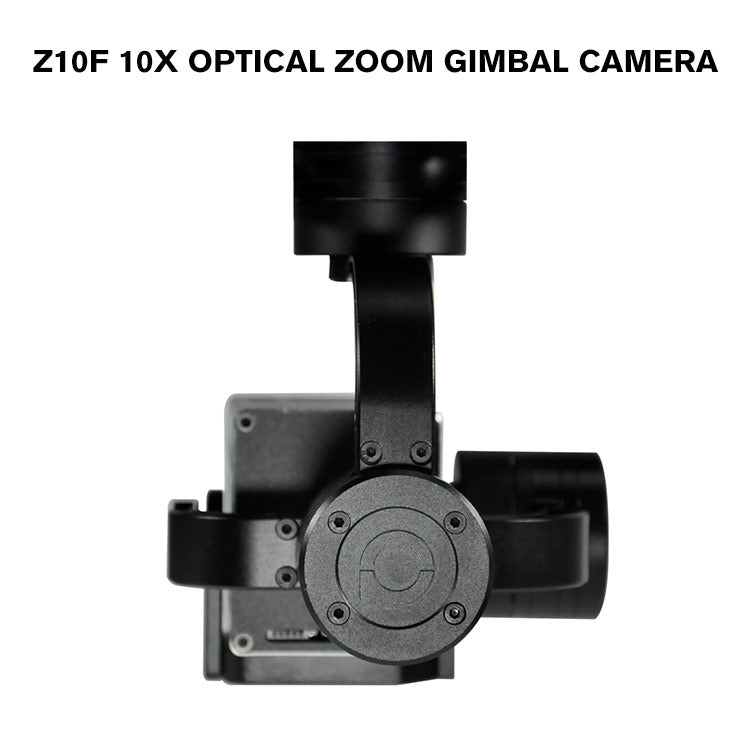

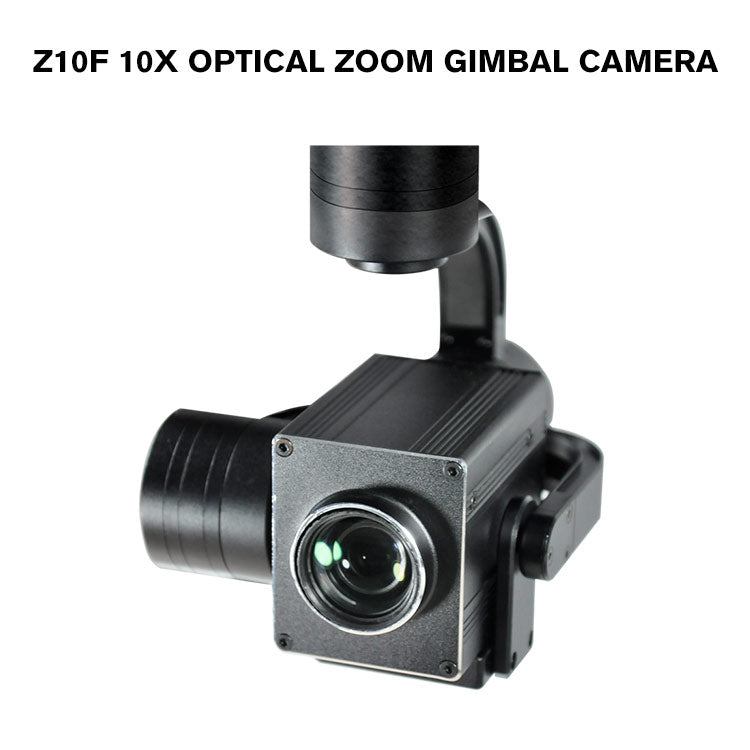

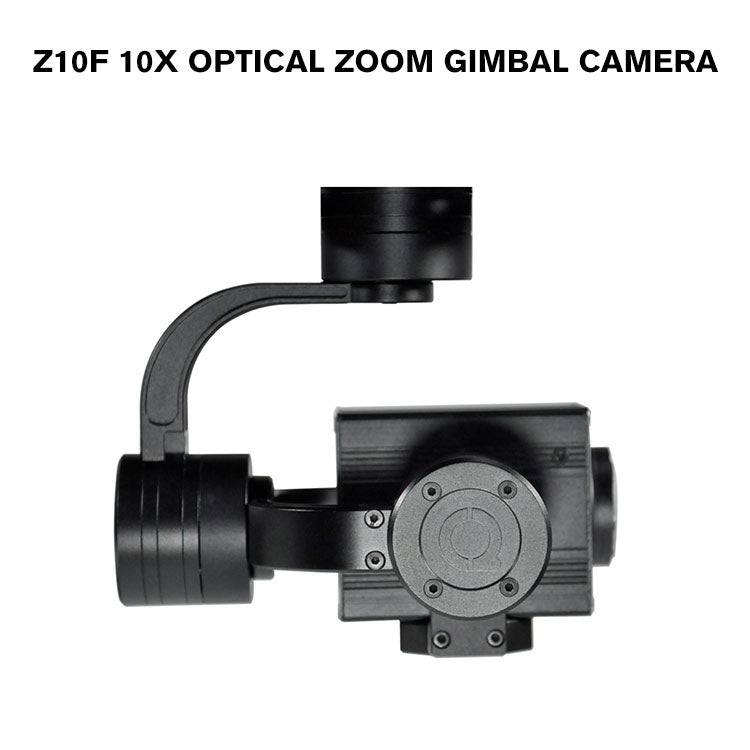

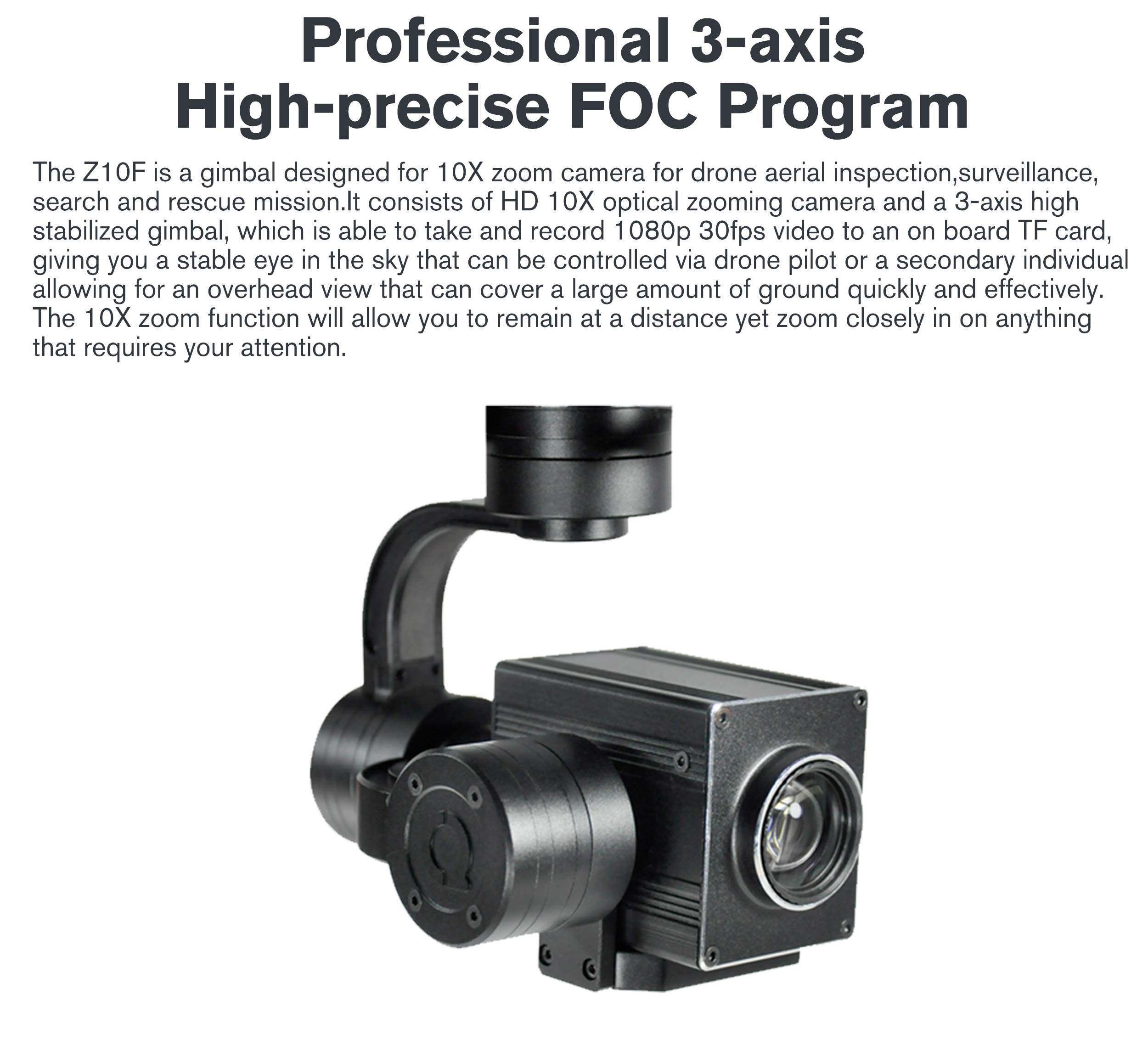

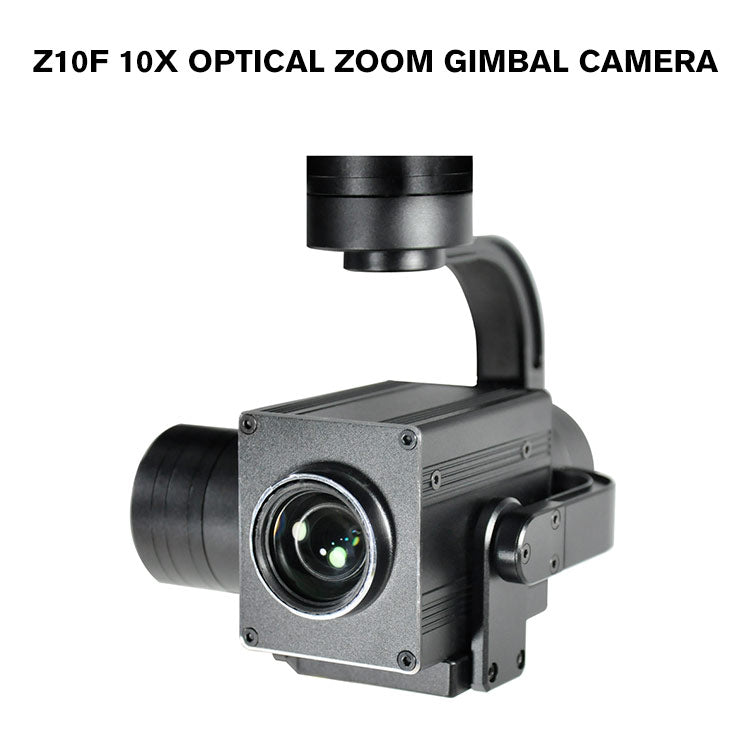

ViewPro-Z10F 10x Optical Zoom Gimbal Camera
Product SKU:
Available:
Only 100 items in stock
100 items in stock
In stock
Pre-order
Out of stock
$936.00
Want it delivered by

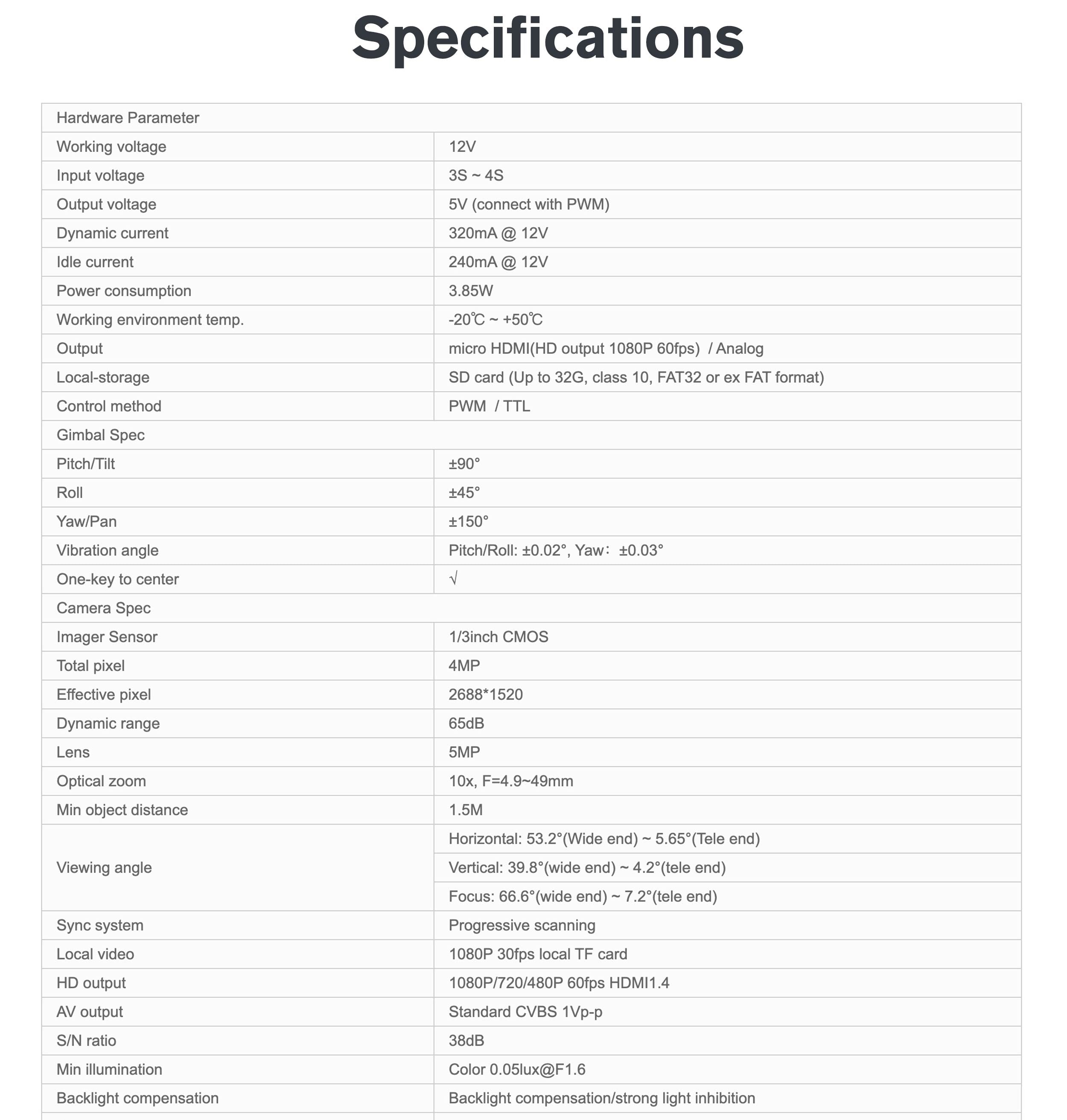

| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 4S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 320mA @ 12V |
| Idle current | 240mA @ 12V |
| Power consumption | 3.85W |
| Working environment temp. | -20℃ ~ +50℃ |

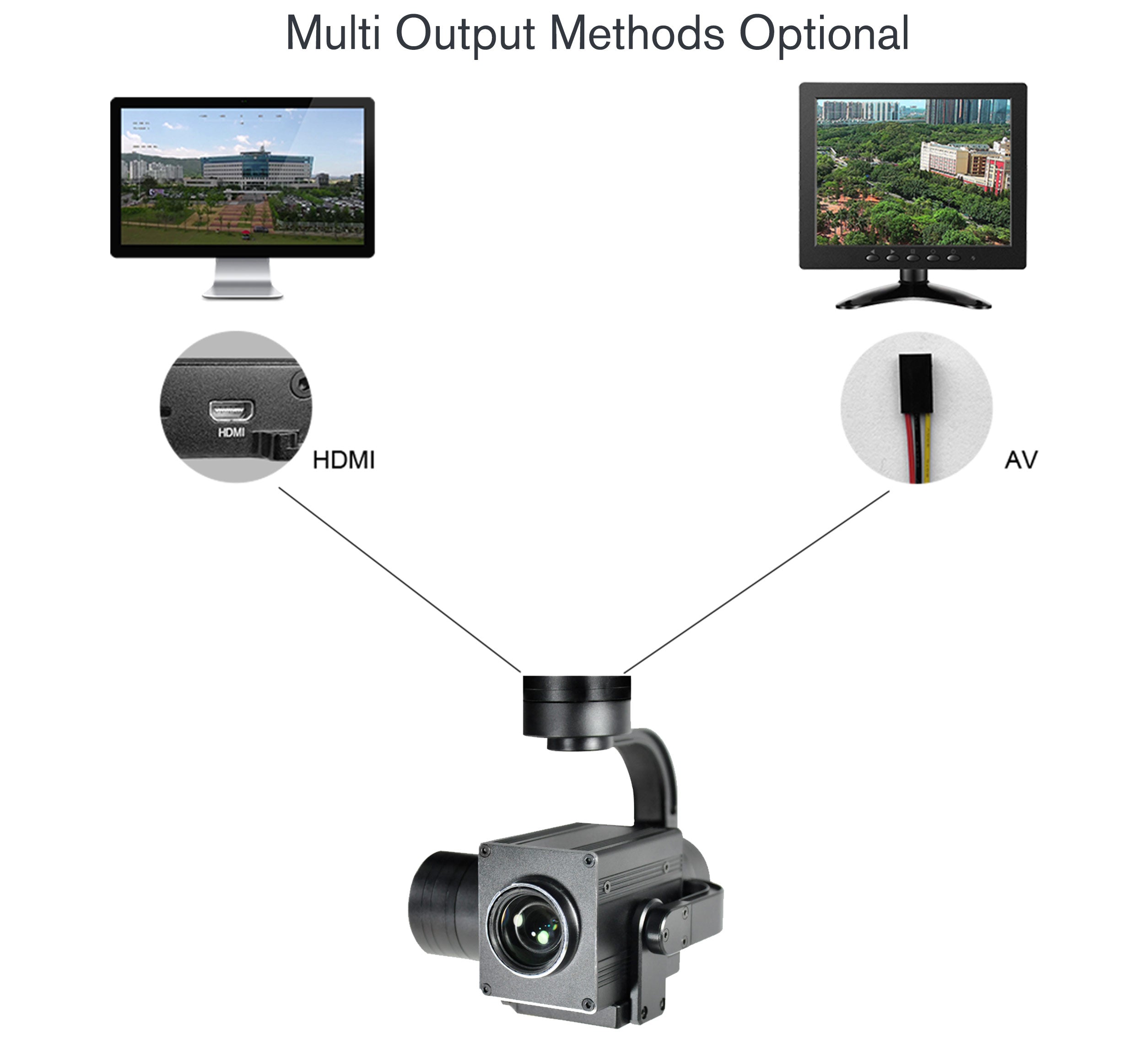

| Output | micro HDMI(HD output 1080P 60fps) / Analog |
| Local-storage | SD card (Up to 32G, class 10, FAT32 or ex FAT format) |

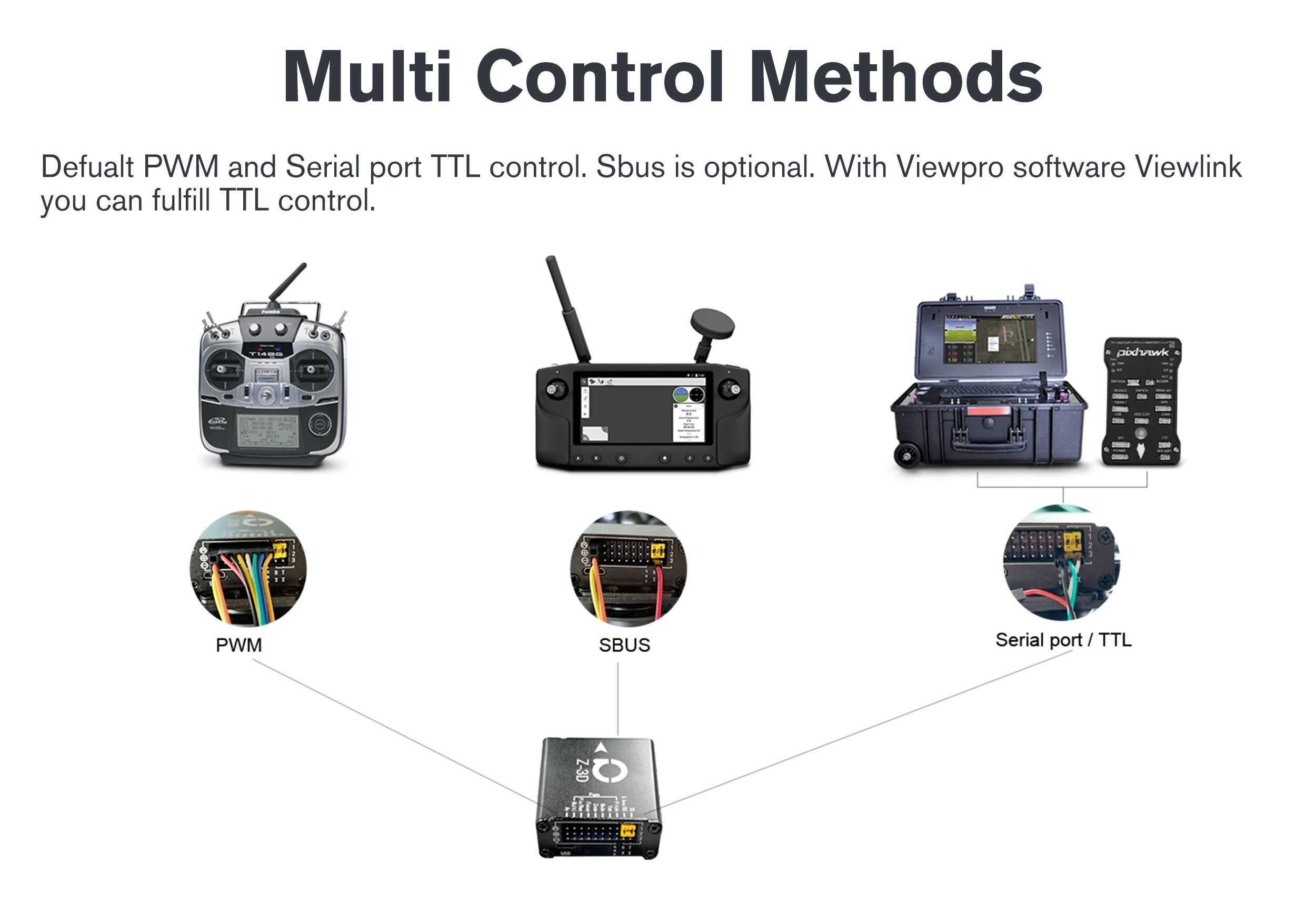

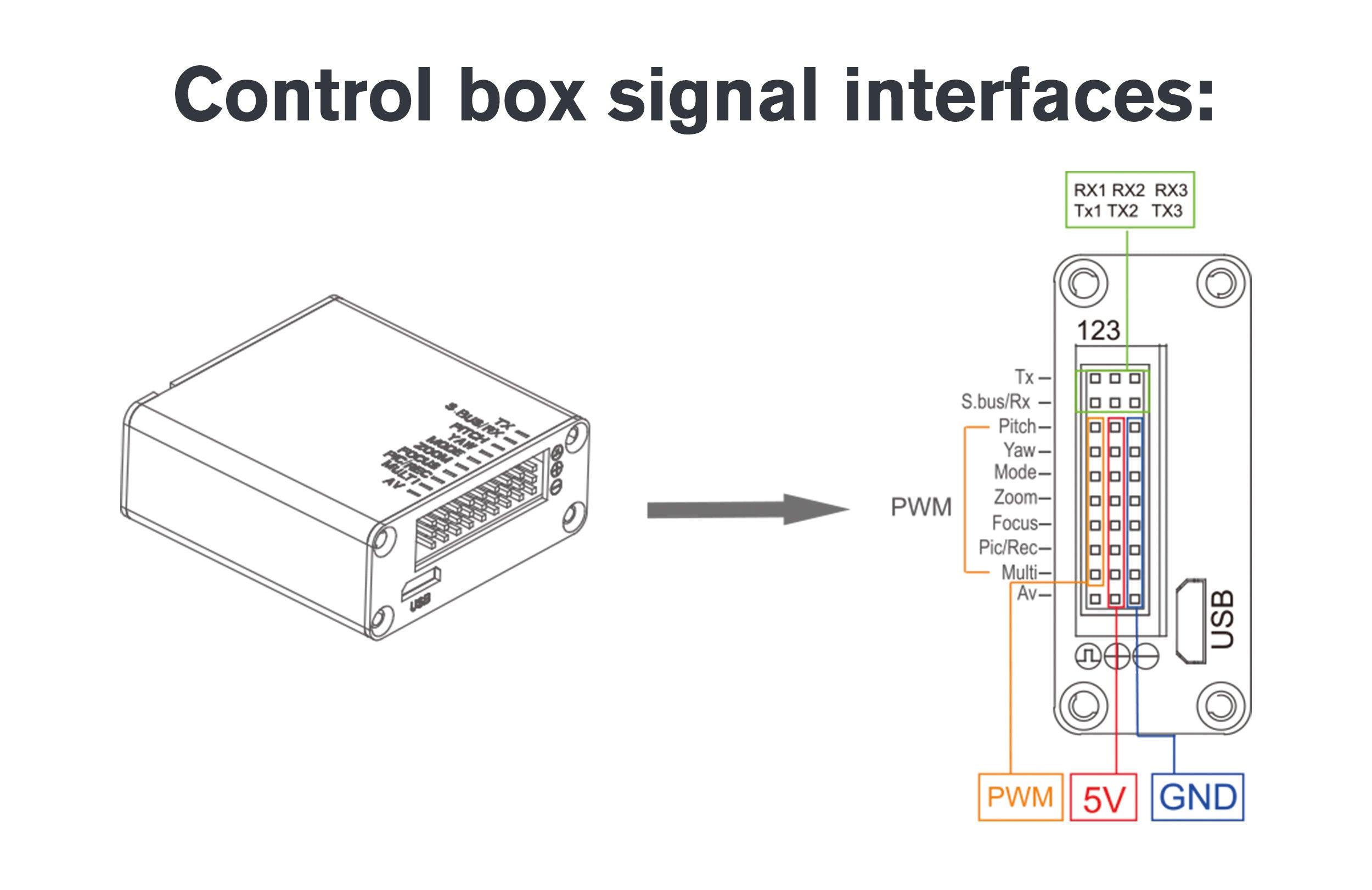

| Control method | PWM / TTL |
| Gimbal Spec | |
| Pitch/Tilt | ±90° |
| Roll | ±45° |
| Yaw/Pan | ±150° |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.03° |
| One-key to center | √ |
| Camera Spec | |
| Imager Sensor | 1/3inch CMOS |
| Total pixel | 4MP |
| Effective pixel | 2688*1520 |
| Dynamic range | 65dB |
| Lens | 5MP |
| Optical zoom | 10x, F=4.9~49mm |
| Min object distance | 1.5M |
| Viewing angle | Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end) |
| Vertical: 39.8°(wide end) ~ 4.2°(tele end) | |
| Focus: 66.6°(wide end) ~ 7.2°(tele end) | |
| Sync system | Progressive scanning |
| Local video | 1080P 30fps local TF card |
| HD output | 1080P/720/480P 60fps HDMI1.4 |
| AV output | Standard CVBS 1Vp-p |
| S/N ratio | 38dB |
| Min illumination | Color 0.05lux@F1.6 |
| Backlight compensation | Backlight compensation/strong light inhibition |

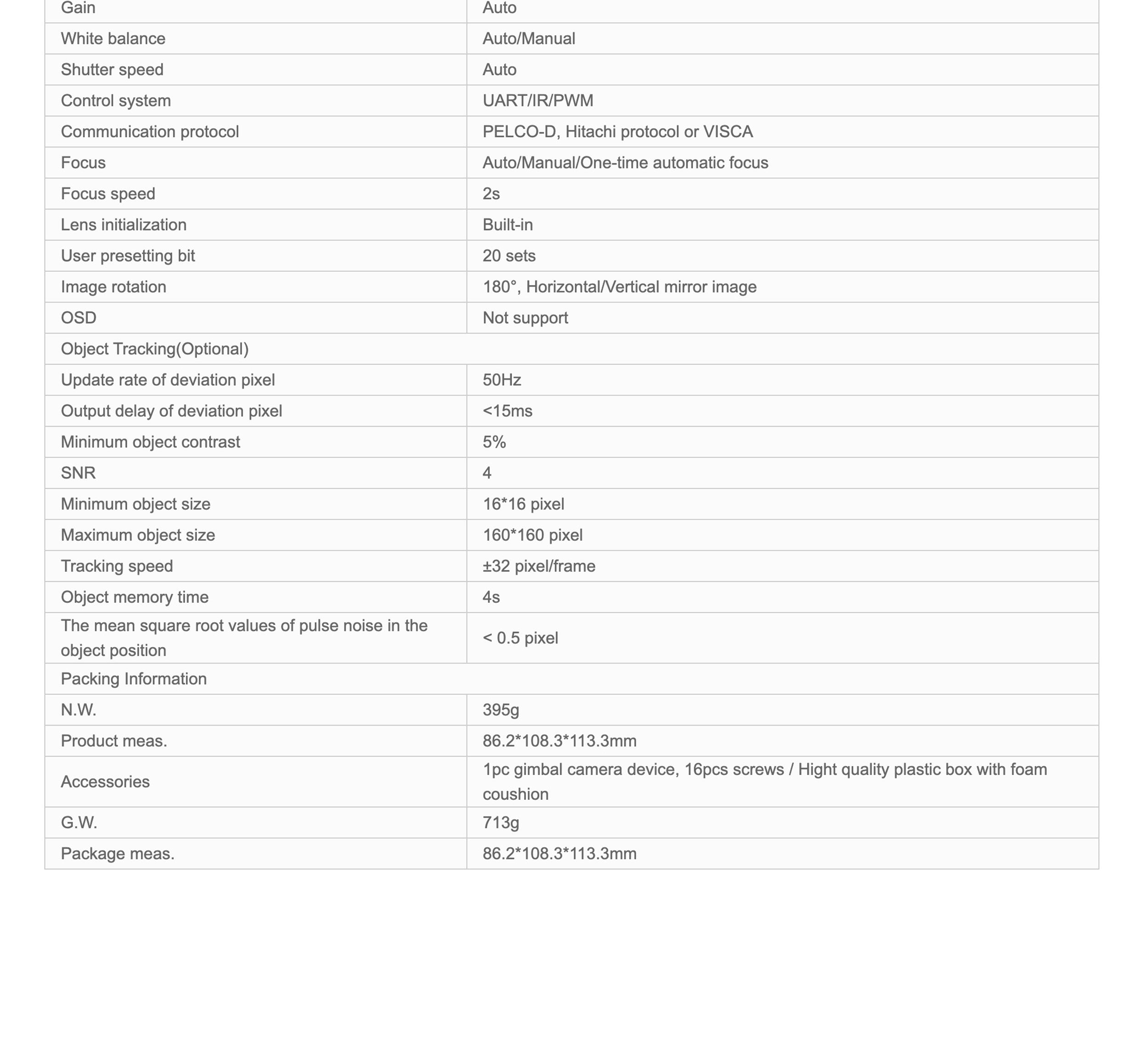

| Gain | Auto |
| White balance | Auto/Manual |
| Shutter speed | Auto |
| Control system | UART/IR/PWM |
| Communication protocol | PELCO-D, Hitachi protocol or VISCA |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180°, Horizontal/Vertical mirror image |
| OSD | Not support |
| Object Tracking(Optional) | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | <15ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 16*16 pixel |
| Maximum object size | 160*160 pixel |
| Tracking speed | ±32 pixel/frame |
| Object memory time | 4s |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 395g |

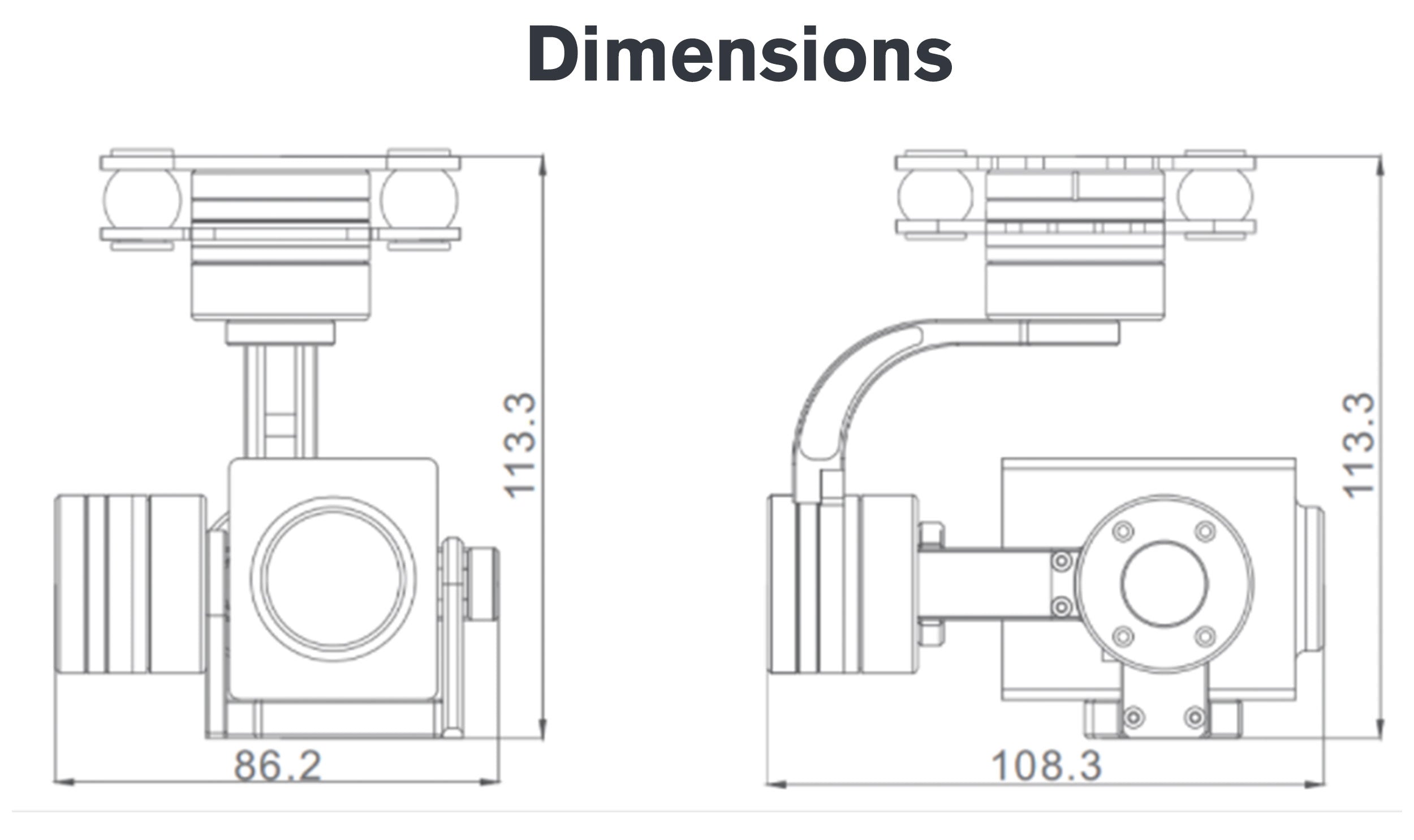

| Product meas. | 86.2*108.3*113.3mm |
| Accessories | 1pc gimbal camera device, 16pcs screws / Hight quality plastic box with foam coushion |
| G.W. | 713g |
| Package meas. | 86.2*108.3*113.3mm |
