- [stop production]ViewPro-Q10T 10x Time Optical Zoom EOS Camera gimbal auto tracking function gimbal [stop production]ViewPro-Q10T 10x Time Optical Zoom EOS Camera gimbal auto tracking function gimbal
% $-2,749.00
UAS Factory Co., LTD

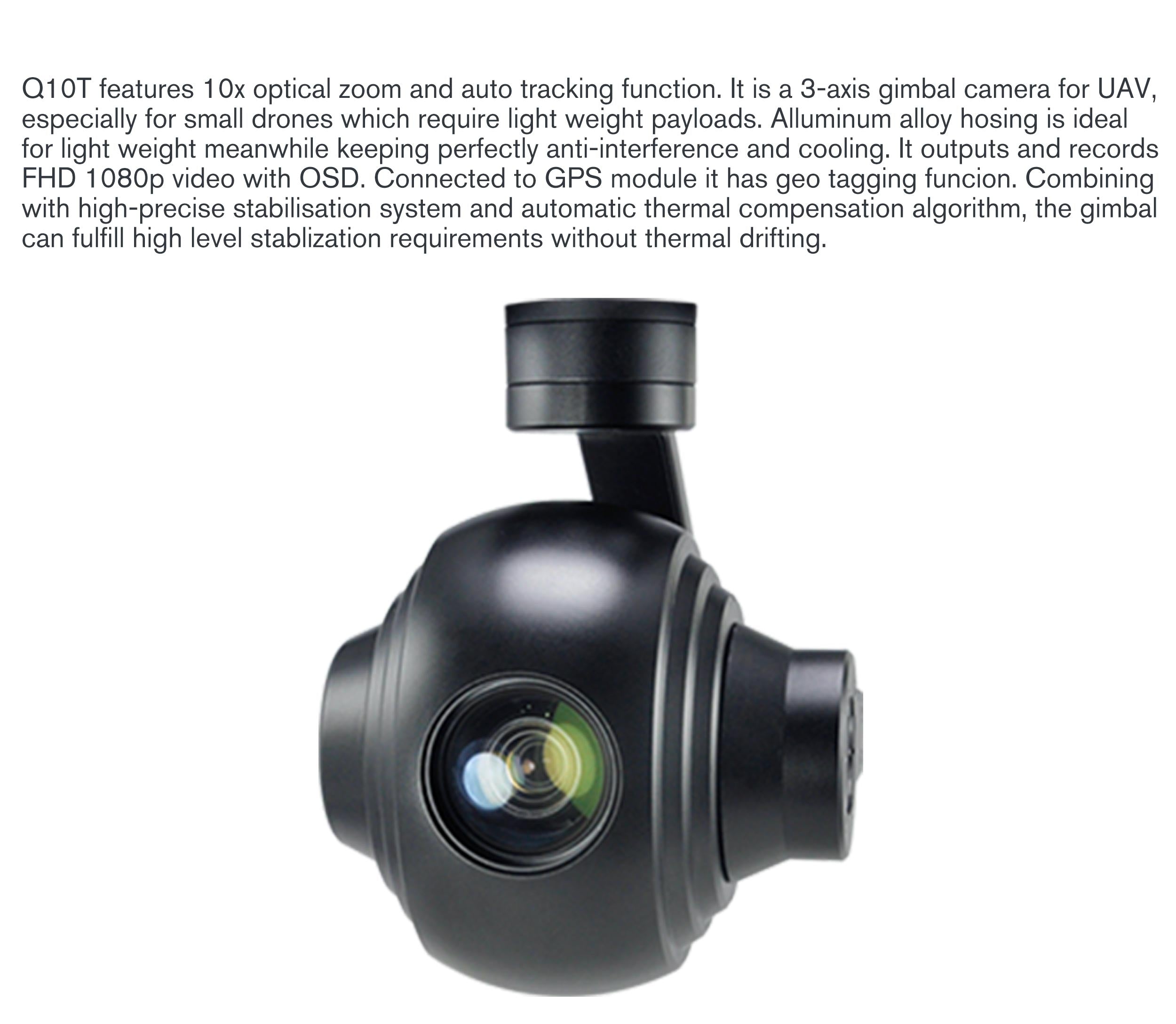

[stop production]ViewPro-Q10T 10x Time Optical Zoom EOS Camera gimbal auto tracking function gimbal
Product SKU:
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
$2,749.00
Want it delivered by
- Description
- Shipping & Returns
- Reviews

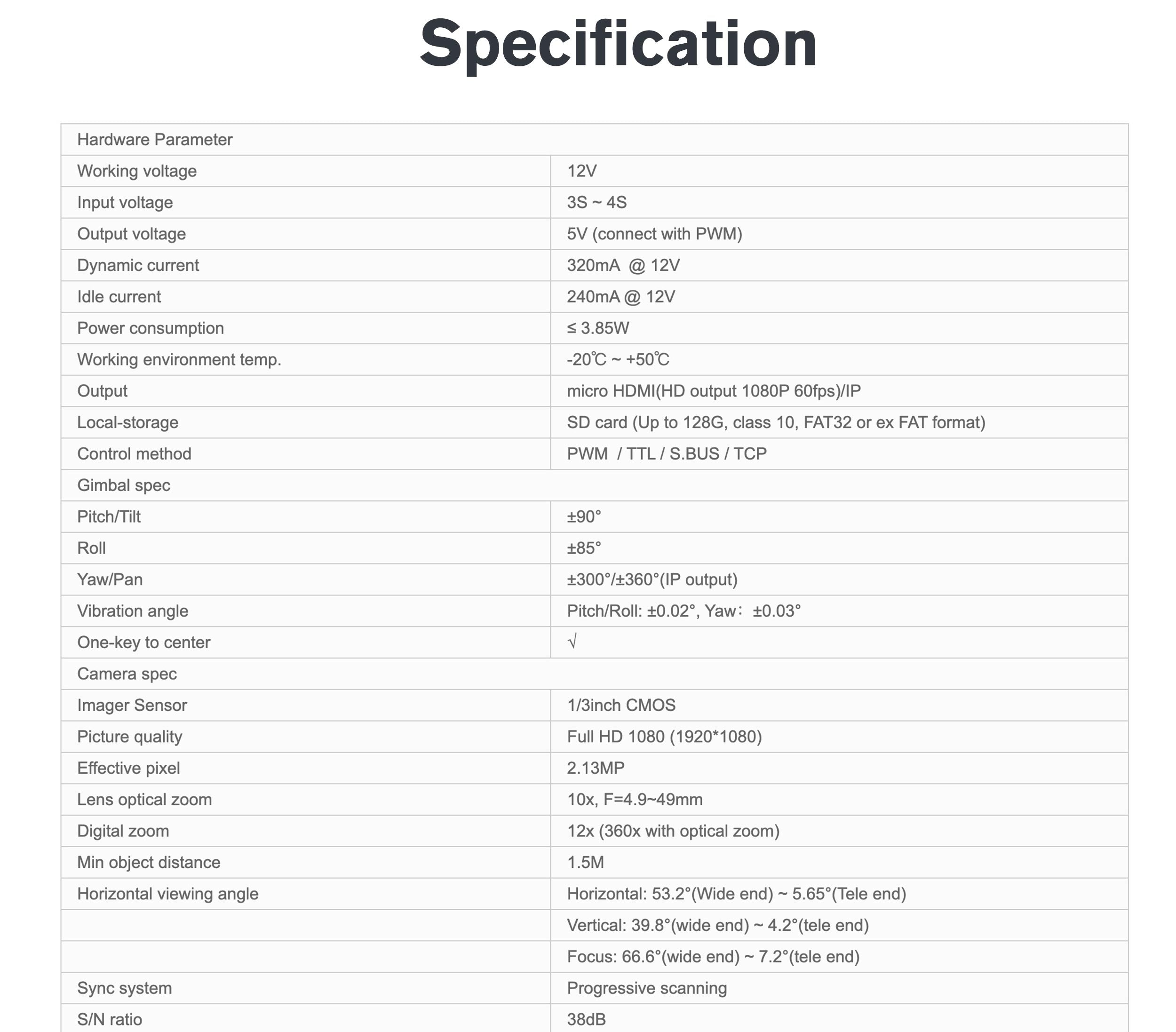

Hardware Parameter | |
Working voltage | 12V |
Input voltage | 3S ~ 4S |
Output voltage | 5V (connect with PWM) |
Dynamic current | 320mA @ 12V |
Idle current | 240mA @ 12V |
Power consumption | ≤ 3.85W |
Working environment temp. | -20℃ ~ +50℃ |

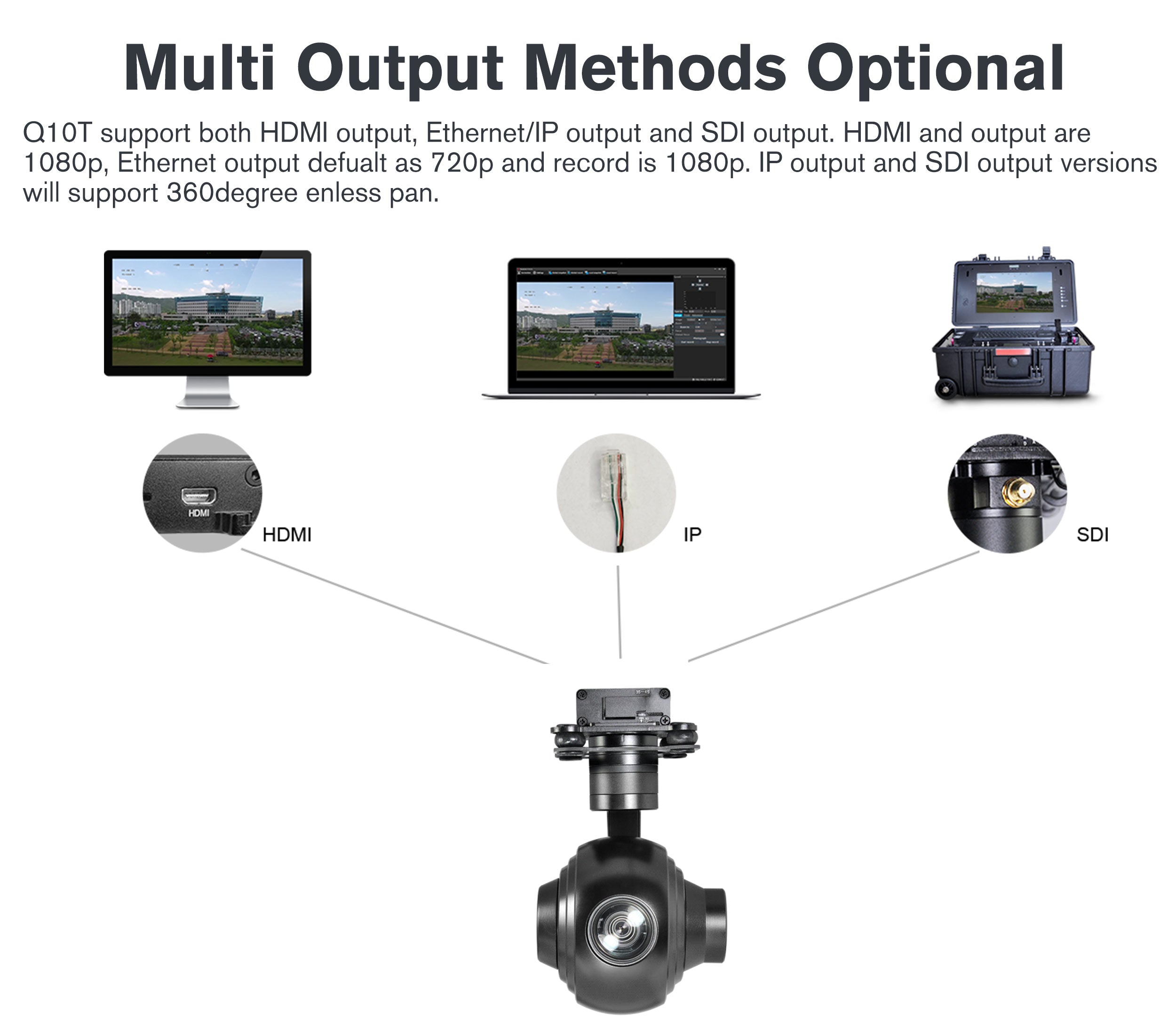

Output | micro HDMI(HD output 1080P 60fps)/IP |
Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |

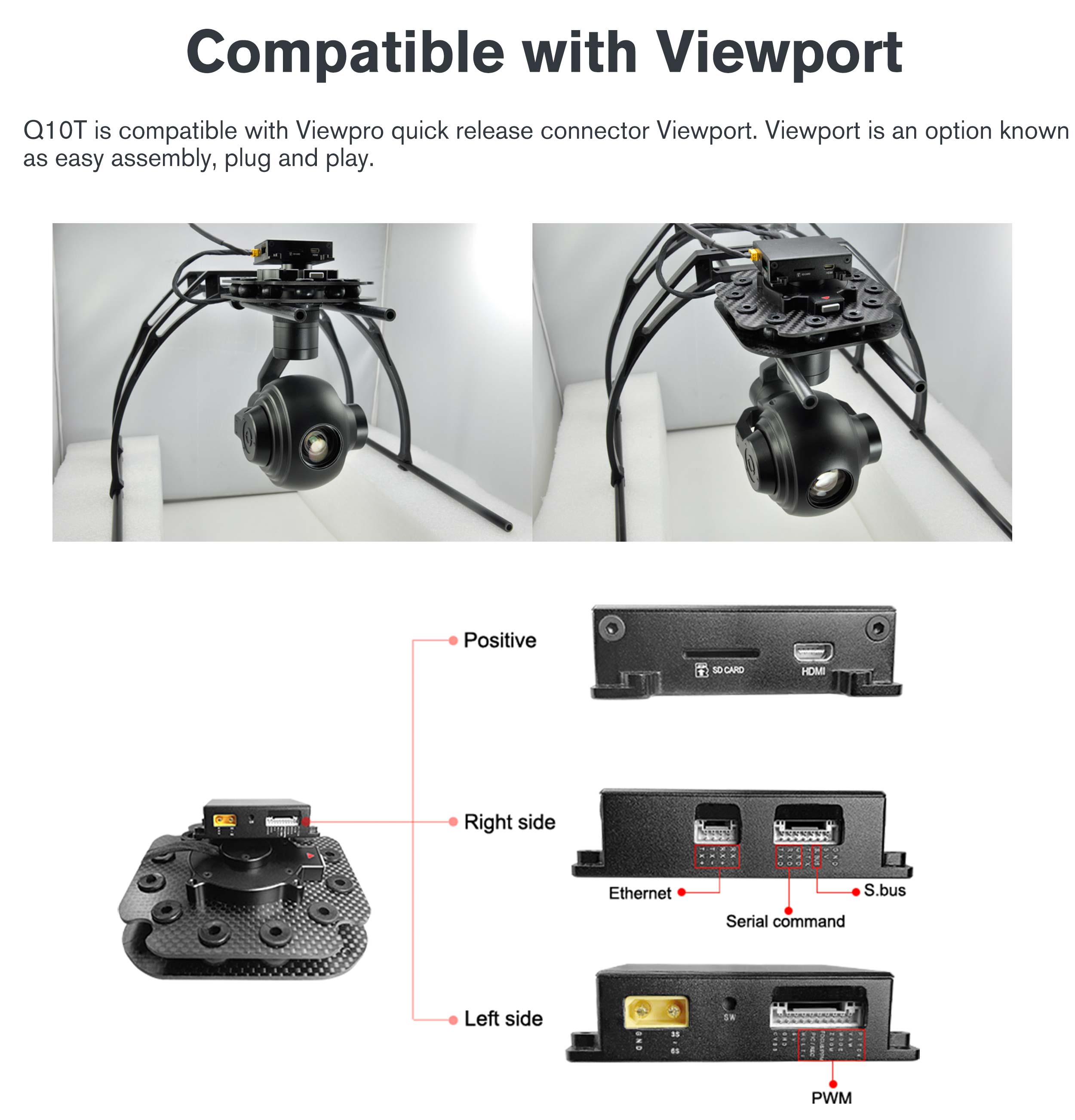

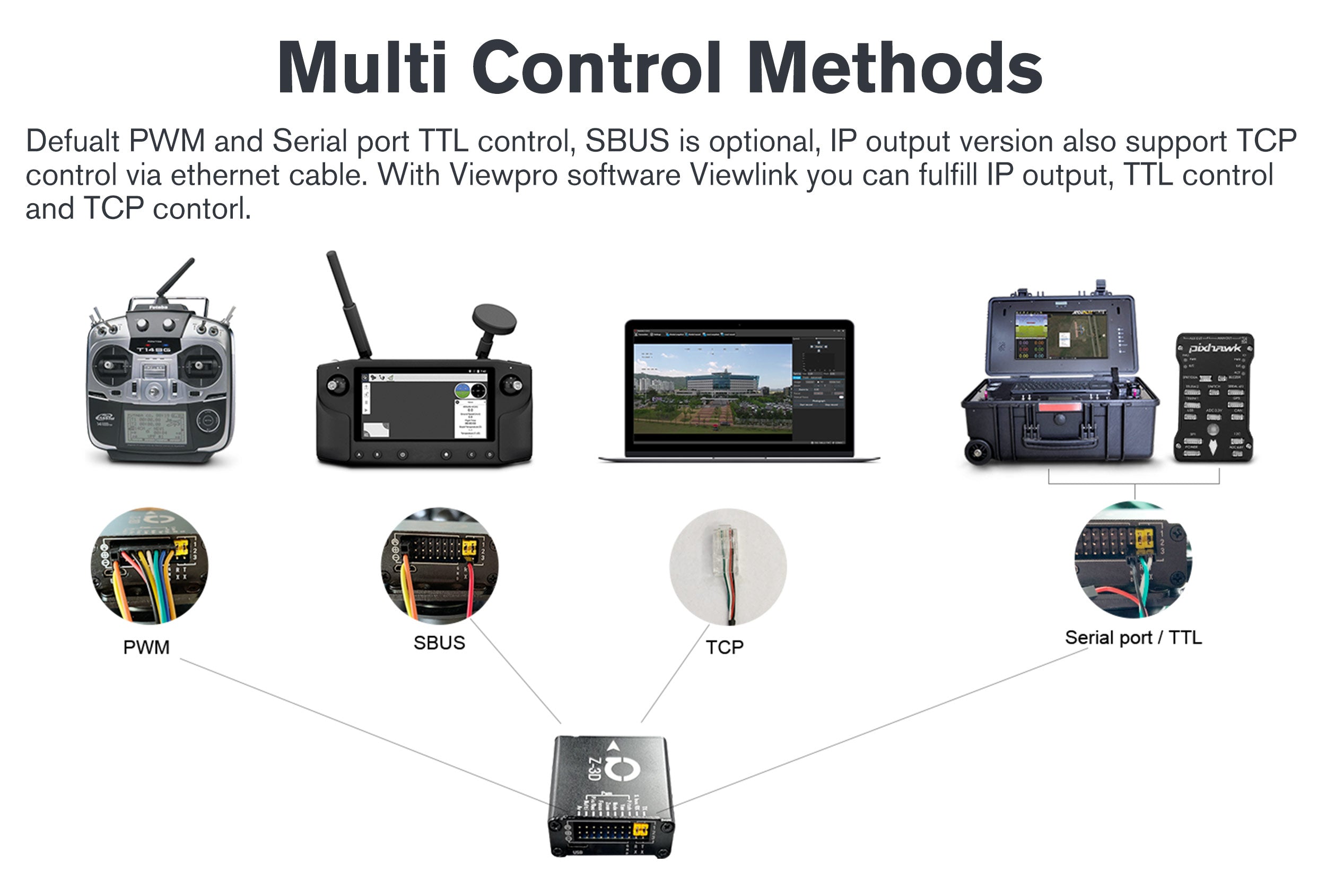

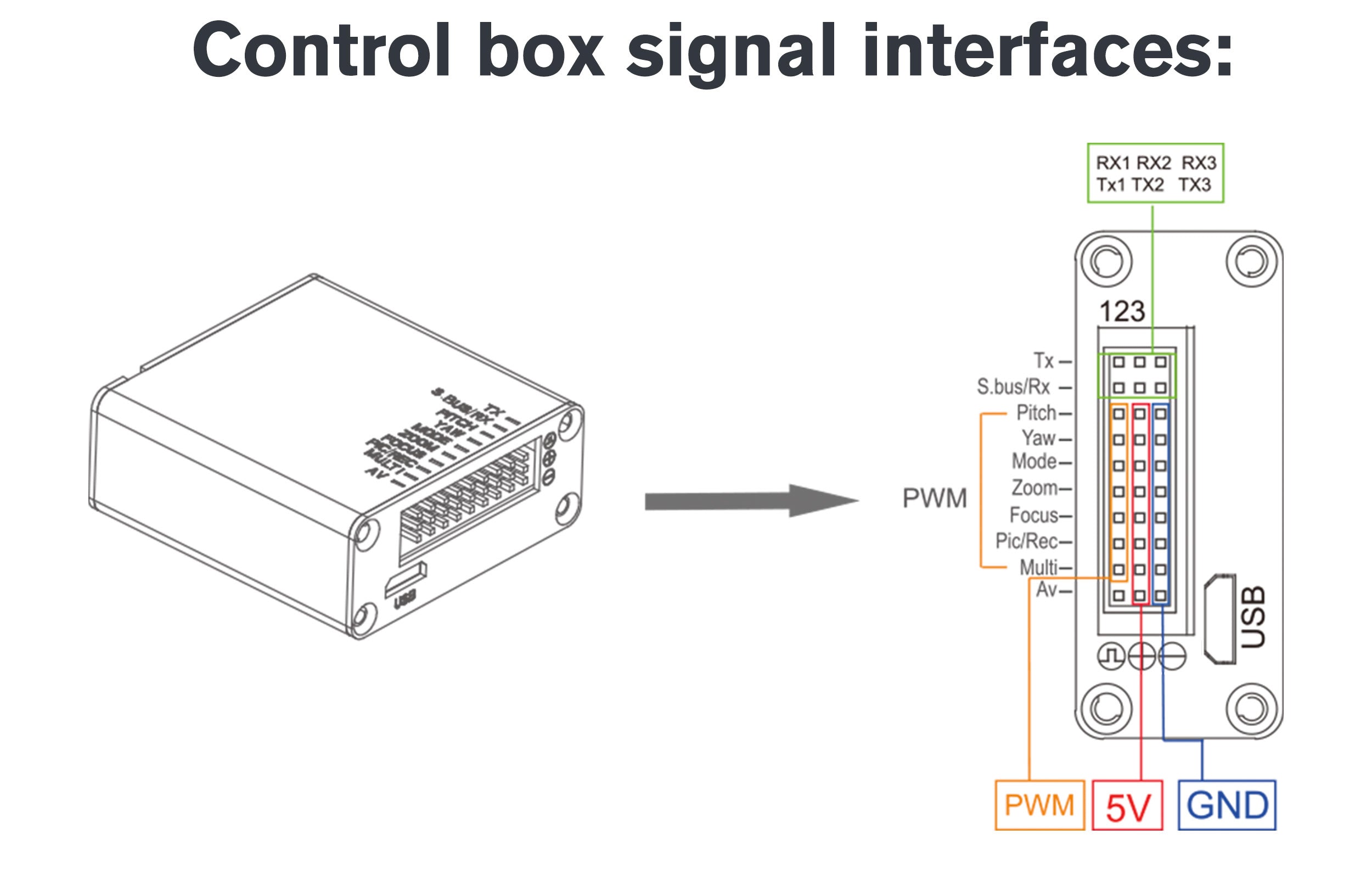

Control method | PWM / TTL / S.BUS / TCP |
Gimbal spec | |
Pitch/Tilt | ±90° |
Roll | ±85° |
Yaw/Pan | ±300°/±360°(IP output) |
Vibration angle | Pitch/Roll: ±0.02°, Yaw:±0.03° |
One-key to center | √ |
Camera spec | |
Imager Sensor | 1/3inch CMOS |
Picture quality | Full HD 1080 (1920*1080) |
Effective pixel | 2.13MP |
Lens optical zoom | 10x, F=4.9~49mm |
Digital zoom | 12x (360x with optical zoom) |
Min object distance | 1.5M |
Horizontal viewing angle | Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end) |
Vertical: 39.8°(wide end) ~ 4.2°(tele end) | |
Focus: 66.6°(wide end) ~ 7.2°(tele end) | |
Sync system | Progressive scanning |
S/N ratio | 38dB |

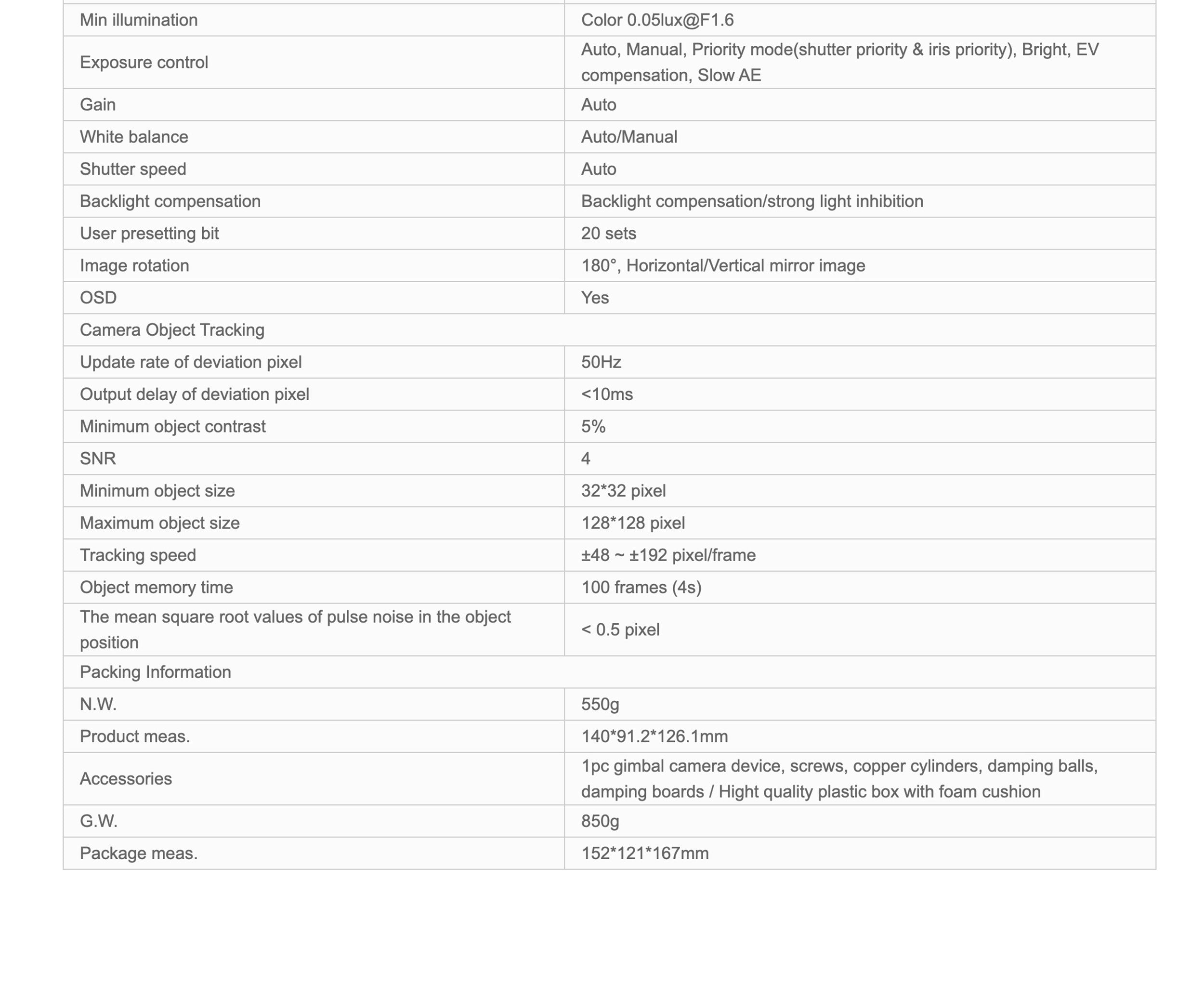

Min illumination | Color 0.05lux@F1.6 |
Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
Gain | Auto |
White balance | Auto/Manual |
Shutter speed | Auto |
Backlight compensation | Backlight compensation/strong light inhibition |
User presetting bit | 20 sets |
Image rotation | 180°, Horizontal/Vertical mirror image |
OSD | Yes |

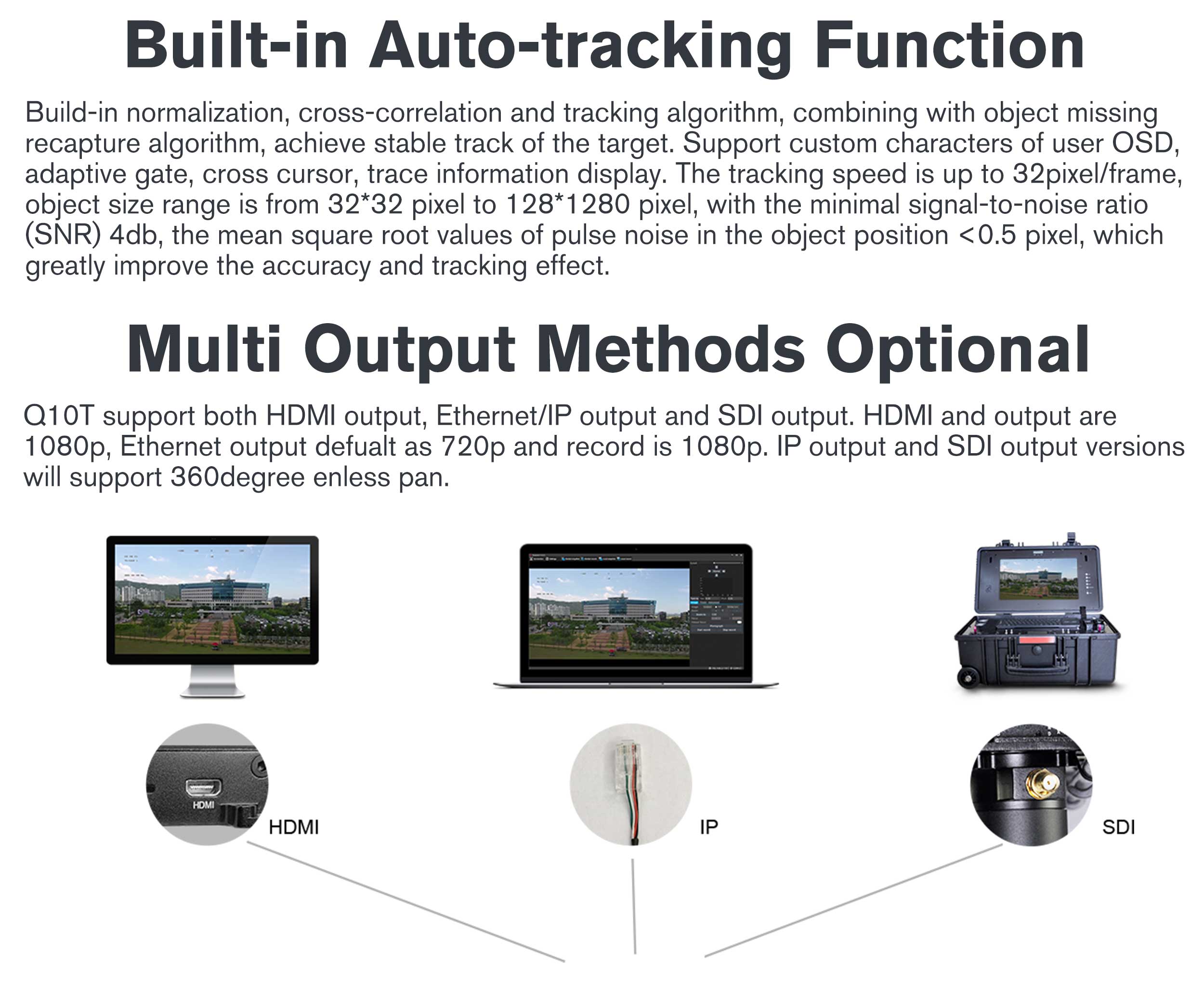

Camera Object Tracking | |
Update rate of deviation pixel | 50Hz |
Output delay of deviation pixel | <10ms |
Minimum object contrast | 5% |
SNR | 4 |
Minimum object size | 32*32 pixel |
Maximum object size | 128*128 pixel |
Tracking speed | ±48 ~ ±192 pixel/frame |
Object memory time | 100 frames (4s) |
The mean square root values of pulse noise in the object position | < 0.5 pixel |
Packing Information | |
N.W. | 550g |

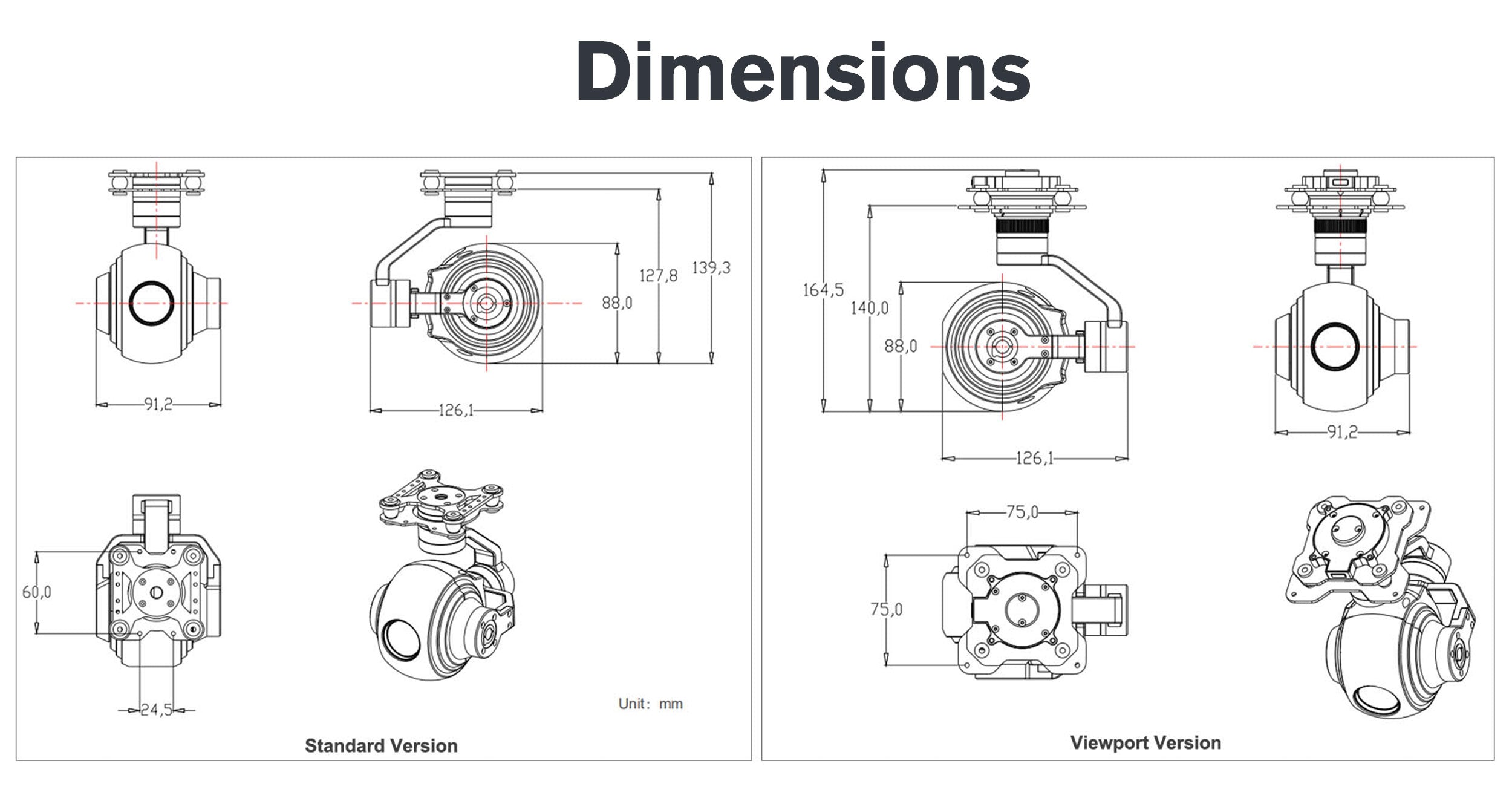

Product meas. | 140*91.2*126.1mm |
Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
G.W. | 850g |
Package meas. | 152*121*167mm |
