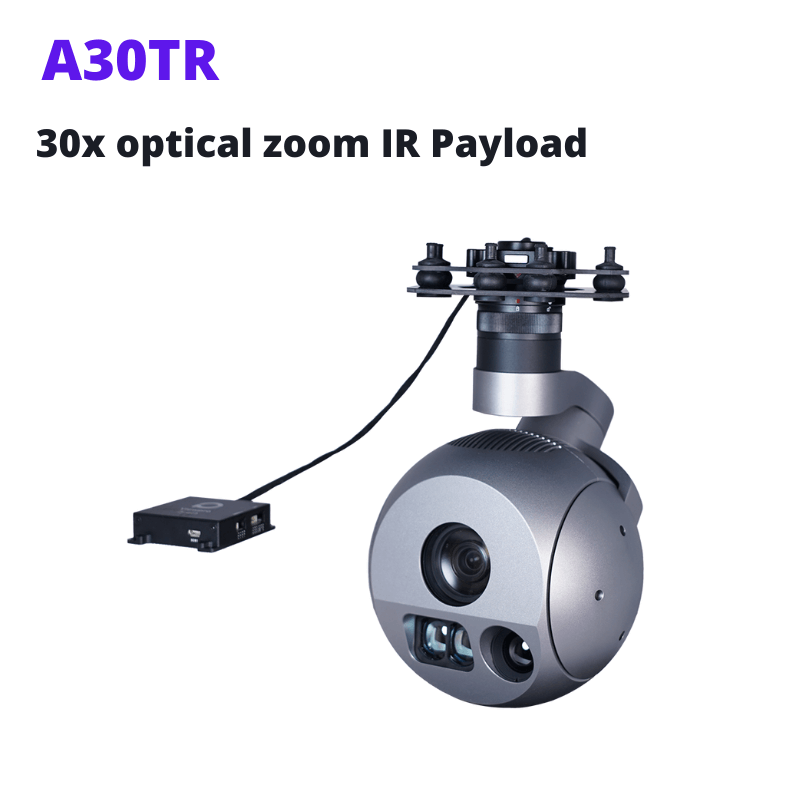

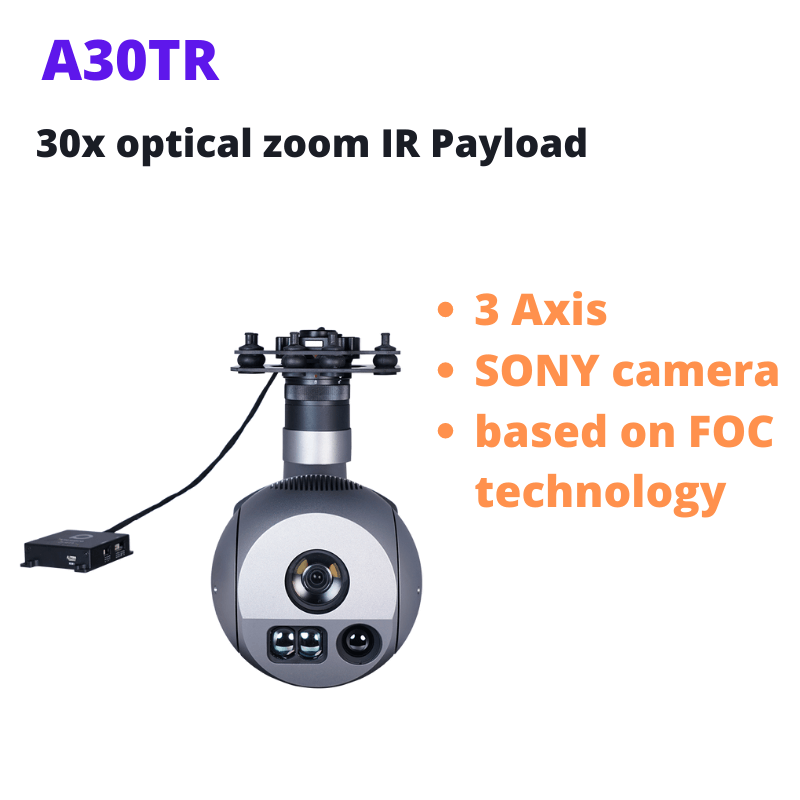

AI Camera 3 axis stabilized object GPS coordinate resolving LRF UAV gimbal camera with 30x optical zoom IR Payload
AI Camera 3 axis stabilized object GPS coordinate resolving LRF UAV gimbal camera with 30x optical zoom IR Payload
AI Camera 3 axis stabilized object GPS coordinate resolving LRF UAV gimbal camera with 30x optical zoom IR Payload
AI Camera 3 axis stabilized object GPS coordinate resolving LRF UAV gimbal camera with 30x optical zoom IR Payload
UAS Factory Co., LTD

AI Camera 3 axis stabilized object GPS coordinate resolving LRF UAV gimbal camera with 30x optical zoom IR Payload

Product SKU:
Available:
Only 132 items in stock
132 items in stock
In stock
Pre-order
Out of stock
$14,999.00
Resolution
Network
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Shipping & Returns

Hardware Parameter
Working voltage
12V
Input voltage
3S ~ 6S
Output voltage
5V (connect with PWM)
Dynamic current
750mA @ 12V
Idle current
550mA @ 12V
Working environment temp.
-20℃ ~ +60℃
Output
micro HDMI(1080P 60fps) / IP (720p) / SDI (1080P 30fps)
Local-storage
SD card (Up to 128G,class 10, FAT32 or ex FAT format)
Control method
PWM / TTL / S.BUS/ TCP (IP output version)
Control method
PWM / TTL / S.BUS
Gimbal Spec
Angle scope of structure design
Pitch/Tilt: -100°～120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Angle scope of software design
Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle
Pitch/Roll: ±0.02°, Yaw：±0.02°
One-key to center
√
Camera Spec
Imager Sensor
SONY 1/2.8" "Exmor R" CMOS
Picture quality
Full HD 1080 (1920*1080)
Effective pixel
2.13MP
Photo storage format
JPG(1920*1080)
Video storage format
MP4 (1080P/720P 25fps/30fps)
Lens optical zoom
30x, F=4.3~129mm
Digital zoom
12x (360x with optical zoom)
Min object distance
10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle
1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system
Internal
S/N ratio
more than 50dB
Min illumination
Color 0.01lux@F1.6
Exposure control
Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain
Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance
Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/
Auto/Outdoor Auto)
Shutter speed
1/1s to 1/10,000s, 22 steps
Backlight compensation
Yes
Aperture control
16 steps
Defog
Yes
OSD
Yes
Camera Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
5ms
Minimum object contrast
5%
SNR
4
Minimum object size
32*32 pixel
Maximum object size
128*128 pixel
Tracking speed
32 pixel/frame
Object memory time
100 frames (4s)
The mean square root values of pulse noise in the object position
< 0.5 pixel
Packing Information
N.W.
1100g
Product meas.
121.5*166.5*130mm
Accessories
1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
G.W.
3058g
Package meas.
360*300*250mm
