Viewpro Q40TIR 25.9MP professional UAV 40x optical 3axis highprecise gimbal zoom camera surveillance
Viewpro Q40TIR 25.9MP professional UAV 40x optical 3axis highprecise gimbal zoom camera surveillance

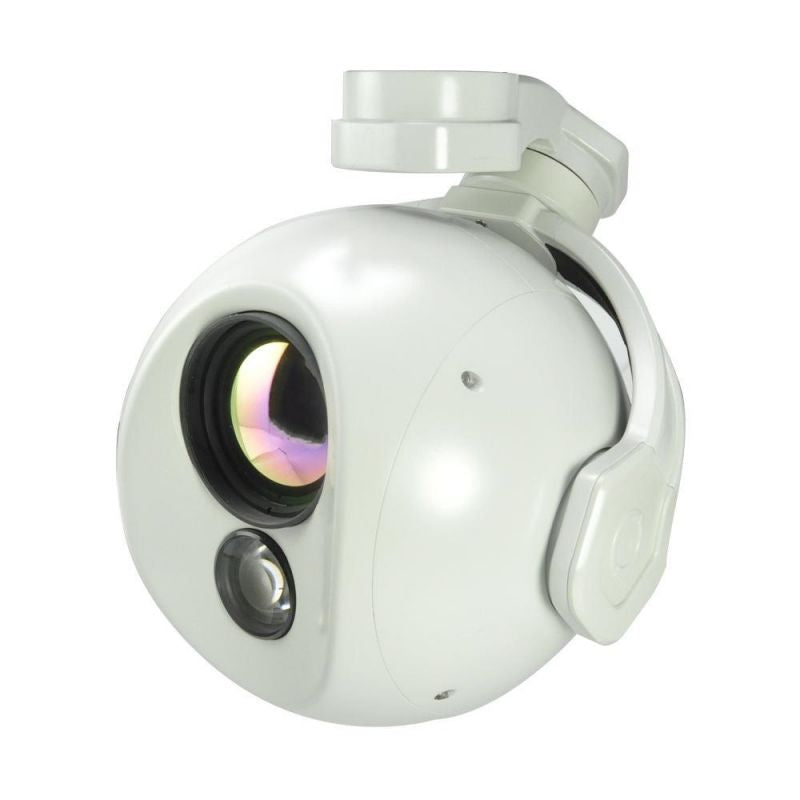

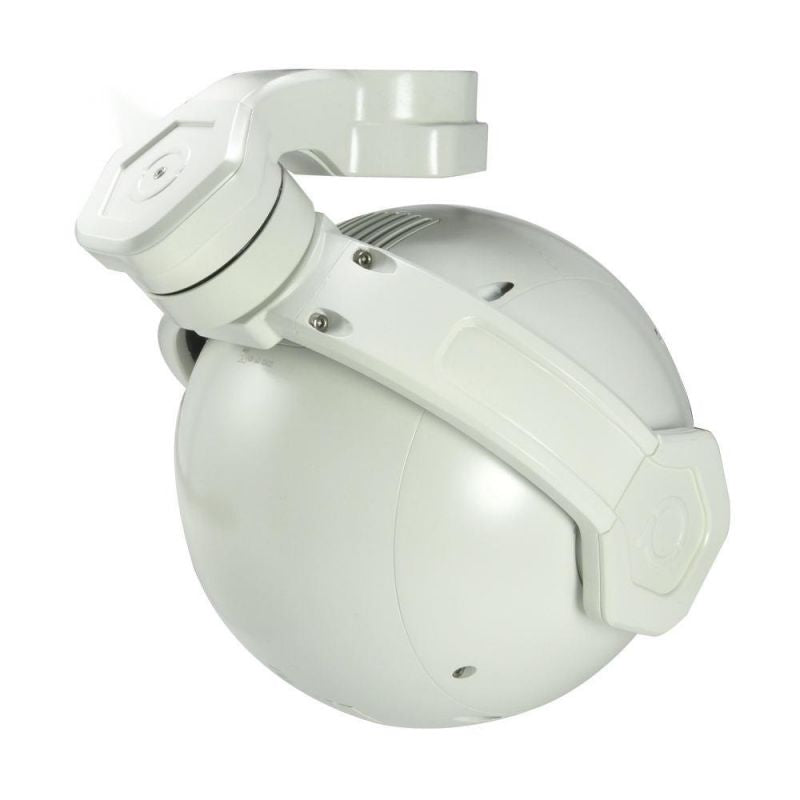

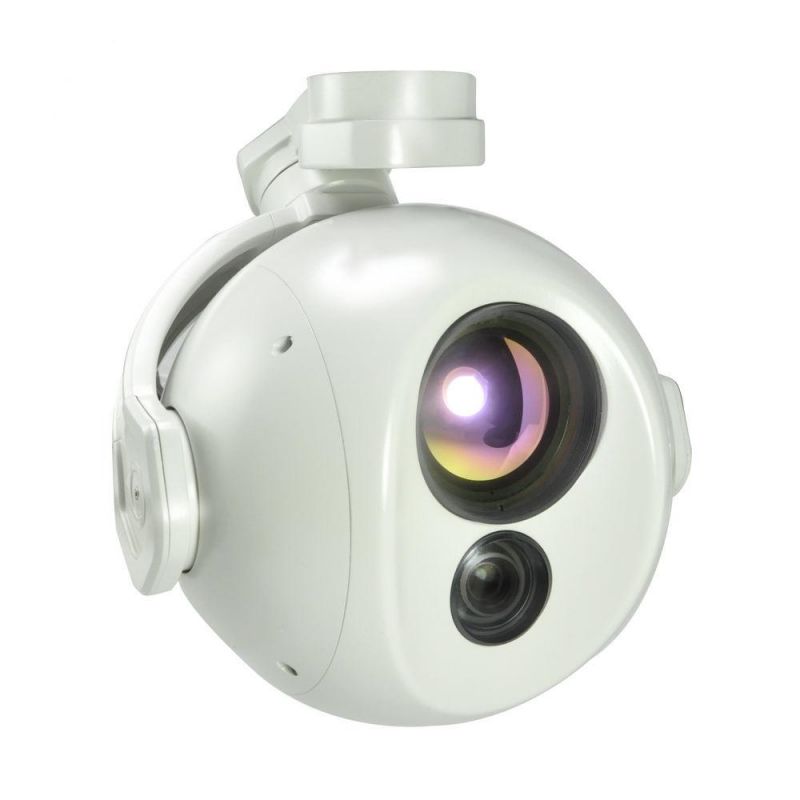

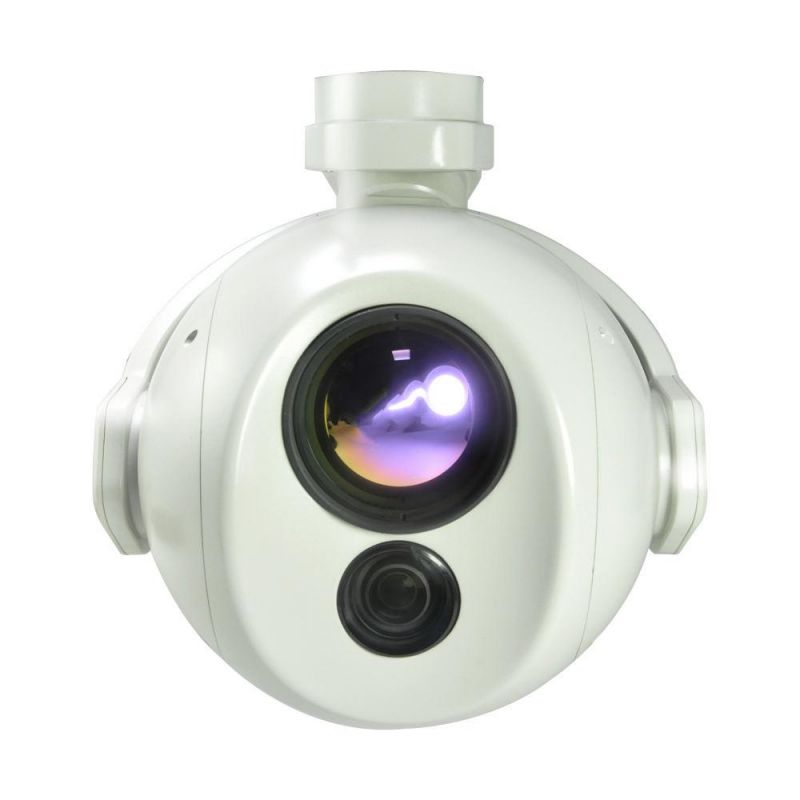

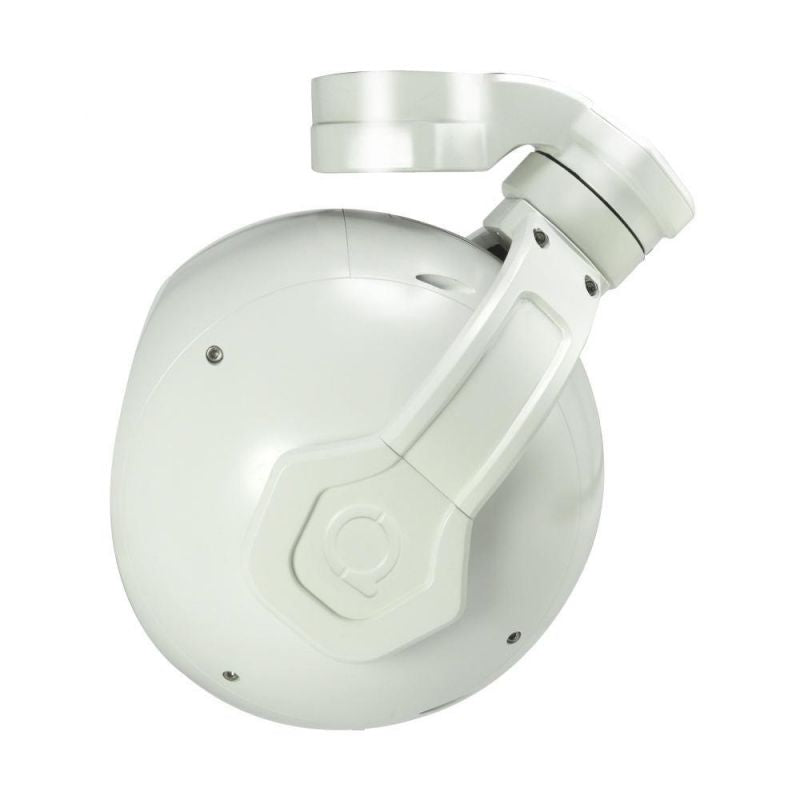

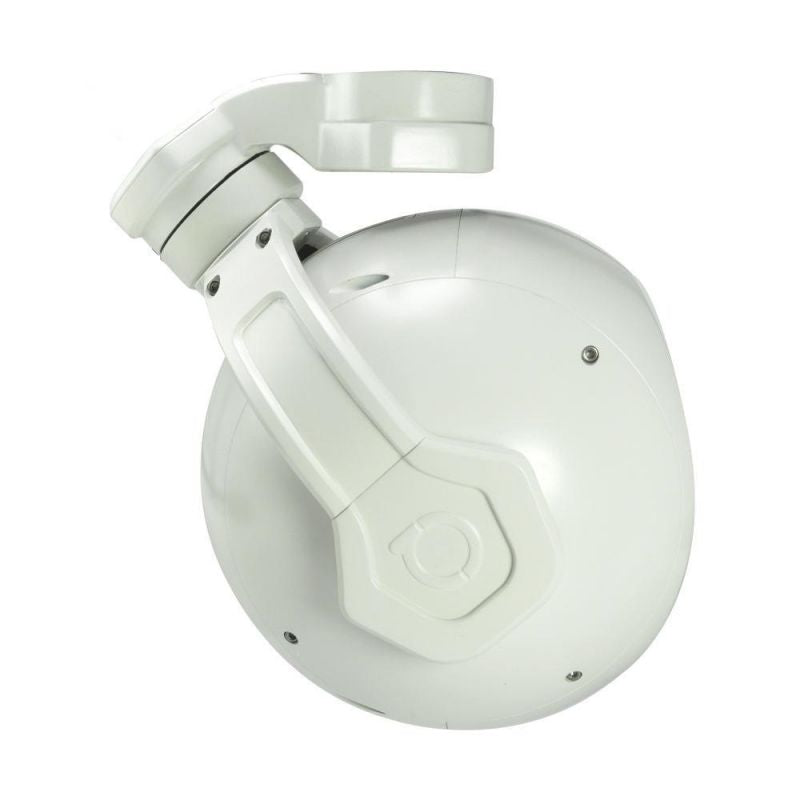

Q40TIR is a powerful dual sensor with 4K camera and 640*480 50mm lens thermal imager. Stabilizing the highly optimized 3-axis
camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor, the
high-end cameras module and advanced pinpoint anti-vibration system bring you extreme stable high image quality at anytime.
Specially designed for long distance details inspections, research & rescue, surveillance and aerial photography, especially for
big UAV.
camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor, the
high-end cameras module and advanced pinpoint anti-vibration system bring you extreme stable high image quality at anytime.
Specially designed for long distance details inspections, research & rescue, surveillance and aerial photography, especially for
big UAV.
|
Hardware Parameter
|
|
|
Working voltage
|
12V
|
|
Input voltage
|
4S ~ 6S
|
|
Output voltage
|
5V (connect with PWM)
|
|
Dynamic current
|
500mA @ 12V
|
|
Idle current
|
400mA @ 12V
|
|
Power consumption
|
≤ 6W
|
|
Working environment temp.
|
-20℃ ~ +60℃
|
|
Output
|
micro HDMI(HD output 1080P 60fps) / IP / SDI
|
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format), 128G*2
|
|
Control method
|
PWM / TTL / SBUS / TCP(IP output)
|
|
Gimbal Spec
|
|
|
Pitch/Tilt
|
±90°
|
|
Roll
|
±85°
|
|
Yaw/Pan
|
±170° / ±360°*N (IP/SDI output)
|
|
Vibration angle
|
Pitch/Roll: ±0.01°, Yaw：±0.01°
|
|
One-key to center
|
√
|
|
Camera Spec
|
|
|
Imager Sensor
|
Panasonic 1/2.3inch CMOS
|
|
Lens
|
F1.8~F3.6(f=4.08~81.6mm)
|
|
Zoom
|
Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD)
|
|
Total pixel
|
25.9MP
|
|
Record effective pixel
|
4k:8.29MP / FHD:6.10MP(16:9)
|
|
Picture effective pixel
|
25.9MP(4:3)
|
|
Optical Image Stabilization
|
5 axis Optical Image Stabilization
|
|
Record format
|
MPEG-4
|
|
Record pixel
|
4k:3840*2160/30p FHD:1080/60p (HD:720/30p)
|
|
Record shutter speed(Manual)
|
1/30 ~ 1/8000
|
|
Picture format
|
JPEG
|
|
Picture pixel
|
20.4M(4:3）
|
|
Picture shutter speed(Manual)
|
1/2 ~ 1/2000
|
|
Dynamic range
|
65dB
|
|
Min object distance
|
1.5M
|
|
Viewing angle
|
Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end)
|
|
Vertical: 39.8°(wide end) ~ 4.2°(tele end)
|
|
|
Focus: 66.6°(wide end) ~ 7.2°(tele end)
|
|
|
Sync system
|
Progressive scanning
|
|
Local video
|
1080P 30fps local TF card
|
|
HD output
|
1080P/720/480P 60fps HDMI1.4
|
|
S/N ratio
|
38dB
|
|
Min illumination
|
Color 0.05lux@F1.6
|
|
Backlight compensation
|
Backlight compensation/strong light inhibition
|
|
Gain
|
Auto
|
|
White balance
|
Auto/Manual
|
|
Control system
|
UART/IR/PWM
|
|
Communication protocol
|
PELCO-D, Hitachi protocol or VISCA
|
|
Focus
|
Auto/Manual/One-time automatic focus
|
|
Focus speed
|
2s
|
|
Lens initialization
|
Built-in
|
|
User presetting bit
|
20 sets
|
|
Image rotation
|
180°, Horizontal/Vertical mirror image
|
|
Facial recognition
|
√
|
|
Camera Object Tracking
|
|
|
Update rate of deviation pixel
|
50Hz
|
|
Output delay of deviation pixel
|
<15ms
|
|
Minimum object contrast
|
5%
|
|
SNR
|
4
|
|
Minimum object size
|
32*32 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
±48 ~ ±192 pixel/frame
|
|
The mean square root values of pulse noise in the object position
|
< 0.5 pixel
|
|
The mean square root values of pulse noise in the object position
|
< 0.5 pixel
|
|

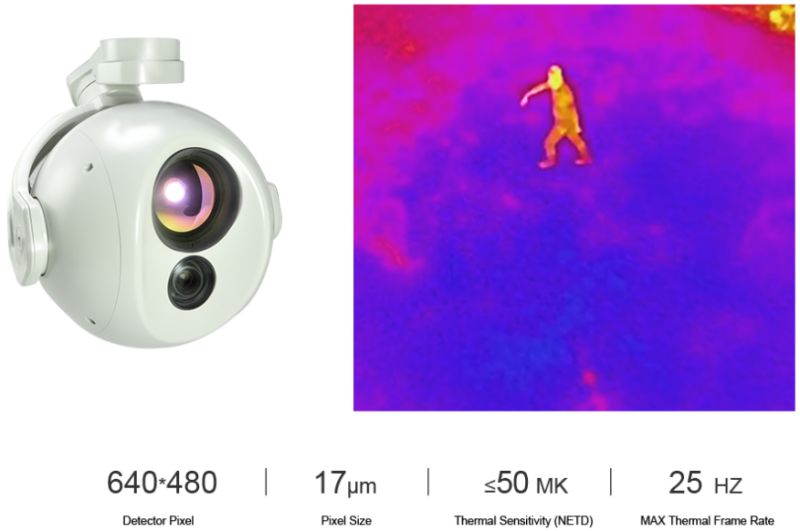

Thermal imager spec
|
|
|
Lens size
|
50mm
|
|
Horizontal FOV(°)
|
12.4
|
|
Vertical FOV(°)
|
9.3
|
|
Diagonal FOV(°)
|
15.5
|
|
Detective Distance (Man: 1.8x0.5m)
|
1471 meters
|
|
Recognize Distance (Man: 1.8x0.5m)
|
368 meters
|
|
Verified Distance (Man: 1.8x0.5m)
|
184 meters
|
|
Detective Distance (Car: 4.2x1.8m)
|
4510 meters
|
|
Recognize Distance (Car: 4.2x1.8m)
|
1127 meters
|
|
Verified Distance (Car: 4.2x1.8m)
|
564 meters
|
|
Working mode
|
Uncooled long wave (8μm~14μm) thermal imager
|
|
Detector pixel
|
640*480
|
|
Pixel size
|
17μm
|
|
Focusing method
|
Athermal prime lens
|
|
Emissivity correction
|
0.01~1
|
|
NETD
|
≤50mK (@25℃)
|
|
MRTD
|
≤650mK (@characteristic frequency)
|
|
Image enhancement
|
Auto adjust image brightness and contrast ratio
|
|
Color palette
|
White, iron red, pseudo color
|
|
Auto Non-uniform correction
|
Yes (no shutter)
|
|
Digital zoom
|
1x, 3x
|
|
Sync correct time
|
Yes
|
|
Thermometry type
|
Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)
|
|
Temperature warning
|
0℃~100℃
|
|
Thermal Object Tracking
|
|
|
Update rate of deviation pixel
|
25Hz
|
|
Output delay of deviation pixel
|
<3ms
|
|
Minimum object size
|
32*32 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
±48 ~ ±192 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
|
Packing Information
|
|
|
N.W.
|
1810g (SDI Output)
|
|
Product meas.
|
175.5*176*218mm
|
|
Accessories
|
1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards, 1pc USB to TTL cable /
Hight quality plastic box with foam cushion |
|
G.W.
|
3927g
|
|
Package meas.
|
360*300*250mm
|
