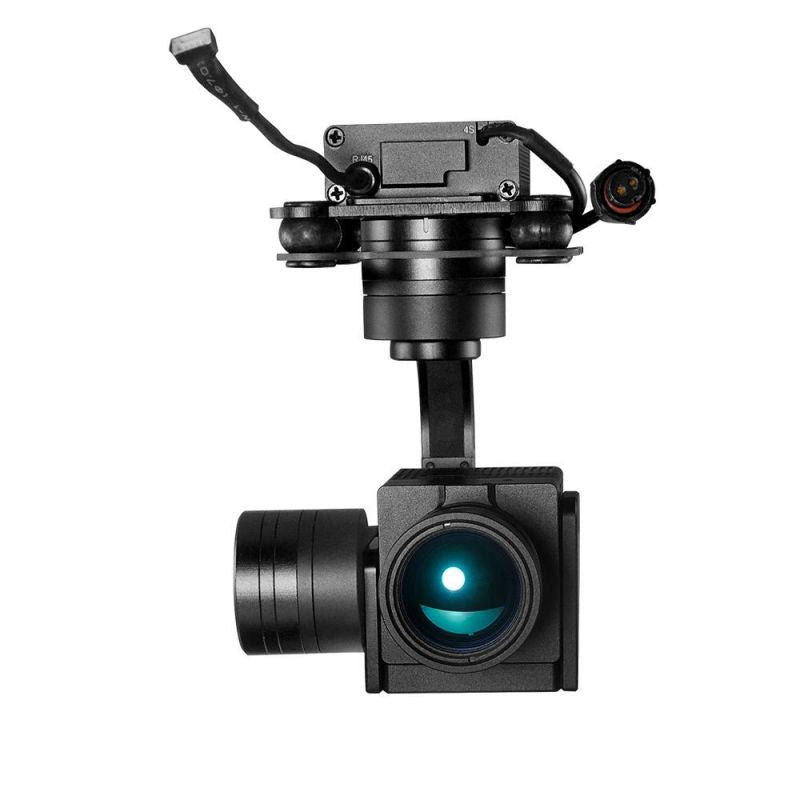

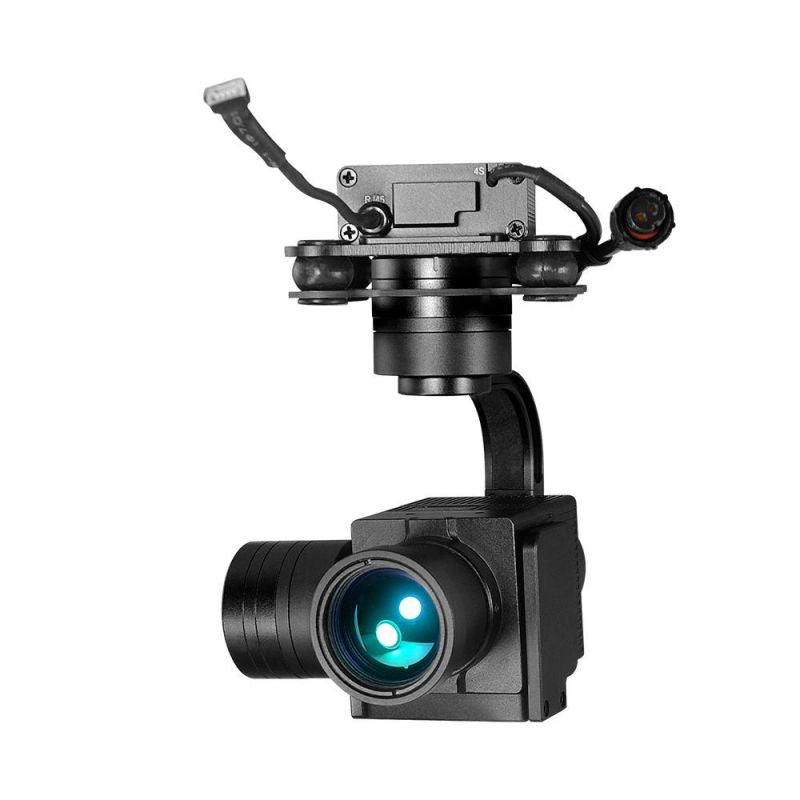

ZIR25T 25mm IR single thermal sensor 640*480 pod gimbal thermometry tracking night vision camera for drone
Product SKU:
Available:
Only 49 items in stock
49 items in stock
In stock
Pre-order
Out of stock
$7,199.00
Want it delivered by
ZIR25T 25mm IR single thermal sensor 640*480 pod gimbal thermometry tracking night vision camera for drone
ZIR25T 25mm IR single thermal sensor 640*480 pod gimbal thermometry tracking night vision camera for drone
The ZIR25T features a thermal imager with 25mm lens, supports 640*480 detector pixels, 1x & 3x digital zoom. The gimbal can be
controlled in three directions: YAW, ROLL and PITCH , we use FOC solution can greatly compensate the vibration of UAV.
controlled in three directions: YAW, ROLL and PITCH , we use FOC solution can greatly compensate the vibration of UAV.
Powerful 25mm Thermal Imager
Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) with 25mm lens thermal image sensor, ZIR25T can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.
|
Hardware Parameter
|
|
|
Working voltage
|
12V
|
|
Input voltage
|
3S ~ 4S
|
|
Dynamic current
|
500mA @ 12V
|
|
Idle current
|
400mA @ 12V
|
|
Power consumption
|
≤ 3.85W
|
|
Working environment temp.
|
-20℃ ~ +50℃
|
|
Output
|
micro HDMI(HD output 1080P 60fps) / IP
|
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
|
Control method
|
PWM / TTL / S.BUS / TCP
|
|
Gimbal Spec
|
|
|
Pitch/Tilt
|
±90°
|
|
Roll
|
±85°
|
|
Yaw/Pan
|
±145°/360°*N (IP output version)
|
|
Vibration angle
|
Pitch/Roll: ±0.01°, Yaw：±0.01°
|
|
One-key to center
|
√
|
|
Thermal Imager Spec
|
|
|
Pitch/Tilt
|
±90°
|
|
Roll
|
±85°
|
|
Yaw/Pan
|
±145°/360°*N (IP output version)
|
|
Vibration angle
|
Pitch/Roll: ±0.01°, Yaw：±0.01°
|
|
One-key to center
|
√
|
|
Recognize Distance (Man: 1.8x0.5m)
|
140 meters
|
|
Verified Distance (Man: 1.8x0.5m)
|
70 meters
|
|
Detective Distance (Car: 4.2x1.8m)
|
1714 meters
|
|
Recognize Distance (Car: 4.2x1.8m)
|
428 meters
|
|
Verified Distance (Car: 4.2x1.8m)
|
214 meters
|
|
Working mode
|
Uncooled long wave (8μm~14μm) thermal imager
|
|
Photo storage format
|
JPG(704*576)
|
|
Video storage format
|
AVI (704*576 25fps)
|
|
Detector pixel
|
640*480
|
|
Pixel size
|
17μm
|
|
Focusing method
|
Prime lens
|
|
NETD
|
≤60mK (@30℃)
|
|
Image enhancement
|
Digital image details enhancement technology, 2 enhancement mode
|
|
Color palette
|
Outline-drawning, white hot, black red, green blue yellow red,ect. 12 color palette
|
|
Auto Non-uniform correction
|
Digital thermal image correction technology
|
|
Digital zoom
|
1x ~ 4x
|
|
Sync correct time
|
Yes
|
|
Thermometry type
|
Optional: max temp, min temp, FOV center temp, average temp
|
|
Temperature warning
|
Optional: overheat warning
|
|
Thermal Object Tracking
|
|
|
Update rate of deviation pixel
|
25Hz
|
|
Output delay of deviation pixel
|
<3ms
|
|
Minimum object size
|
32*32 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
±48 ~ ±192 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
|
Packing Information
|
|
|
N.W.
|
475g
|
|
Product meas.
|
80*114*123mm
|
|
Accessories
|
1pc gimbal device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic box with
foam cushion |
|
G.W.
|
980g
|
|
Package meas.
|
152*121*167mm
|
